Connector To Connect To Heater; Qr-Code Labels; Initial Start-Up - Webasto ThermoConnect TCon2 Operating And Installation Instructions

correct operating status. (Available as from
EN
November 2019, the receiver is updated
automatically.) With the exception of Tele-
start. Switching on the heater via the Tele-
start does not result in the switched-on
heater being indicated on the mobile or the
web-based app.

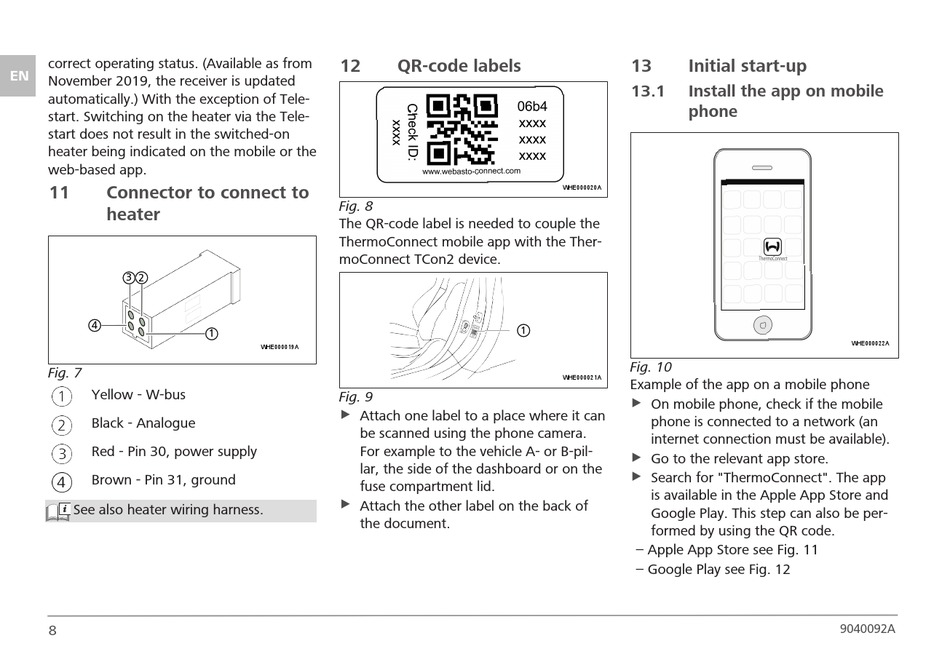

11 Connector to connect to
heater
3 2
4
Fig. 7
Yellow - W-bus
Black - Analogue
Red - Pin 30, power supply
Brown - Pin 31, ground
See also heater wiring harness.
8
12
4
Fig. 8
3
The QR-code label is needed to couple the
ThermoConnect mobile app with the Ther-
moConnect TCon2 device.
2
1
WHE000019A
4
Fig. 9
3
u
Attach one label to a place where it can
be scanned using the phone camera.
For example to the vehicle A- or B-pil-
lar, the side of the dashboard or on the
fuse compartment lid.
u
Attach the other label on the back of
2
the document.
1

QR-code labels

WHE000020A
1
WHE000021A
13

Initial start-up

13.1 Install the app on mobile
phone
1
4
3
Fig. 10
2
Example of the app on a mobile phone
u
On mobile phone, check if the mobile
phone is connected to a network (an
internet connection must be available).
u Go to the relevant app store.
u
Search for "ThermoConnect". The app
is available in the Apple App Store and
Google Play. This step can also be per-
formed by using the QR code.
– Apple App Store see Fig. 11
– Google Play see Fig. 12
WHE000022A
9040092A
