Delta Modulon Series User Manual page 24

Three phase 15-105 kva 208vac external battery cabinet
Hide thumbs
Table of Contents

Advertisement

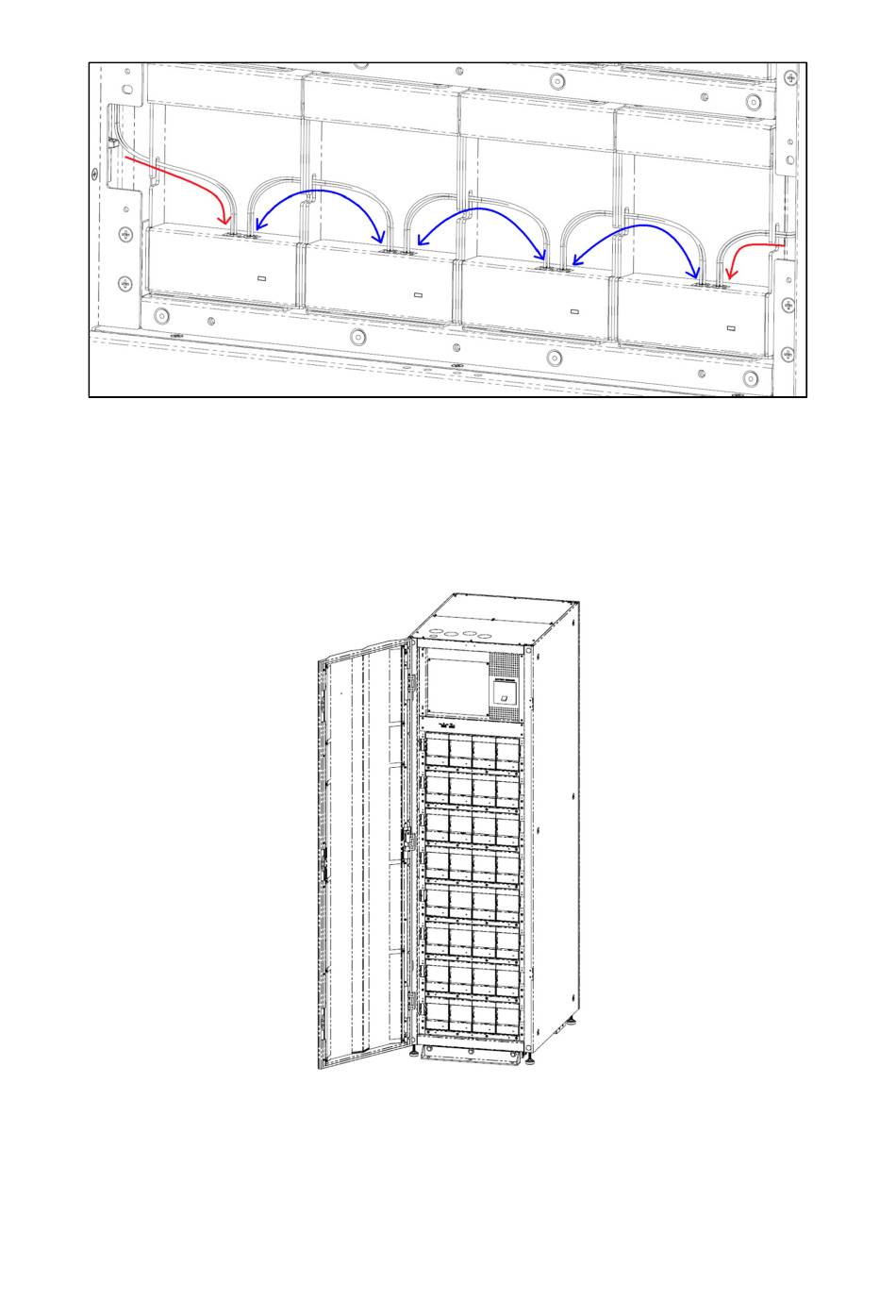

Figure 17: connect the battery modules to each other
(6) There are eight layers. Four battery modules should be installed in a layer at the
same time. See Figure 18 ~ Figure 19.
Figure 18: internal view after inserting all battery modules (without cables)
Modulon DPH Series
23
