Delta Modulon Series User Manual page 21

Three phase 15-105 kva 208vac external battery cabinet
Hide thumbs
Table of Contents

Advertisement

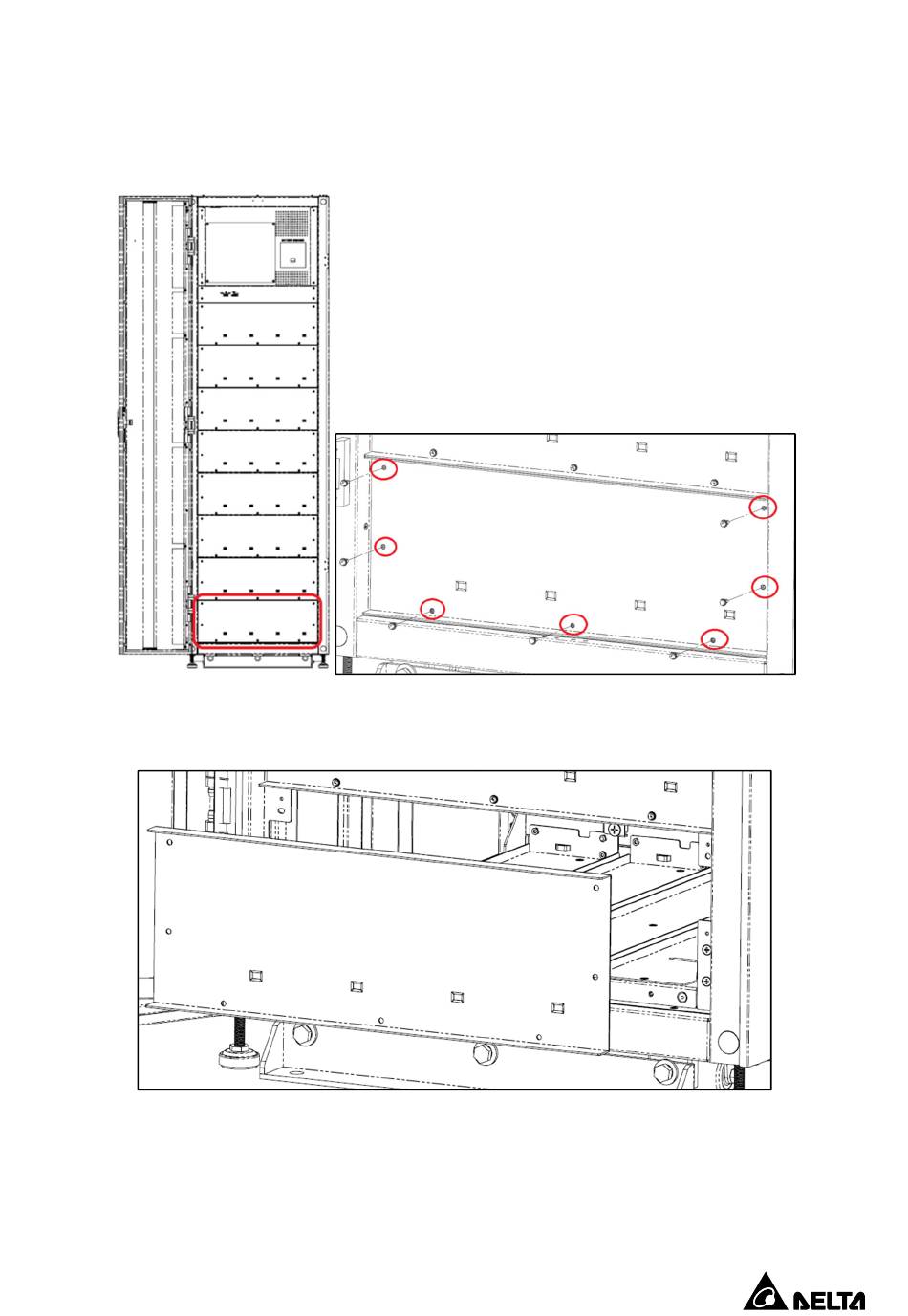

(3) For battery module installation, please remove the cover of the battery module. See
Figure 12 ~ Figure 14.
Figure 12: remove the seven screws
Figure 13: remove the battery cover
20
