(2) Please remove the wiring terminal cover (see Figure 10), and you will see the wiring
terminals shown in Figure 11.

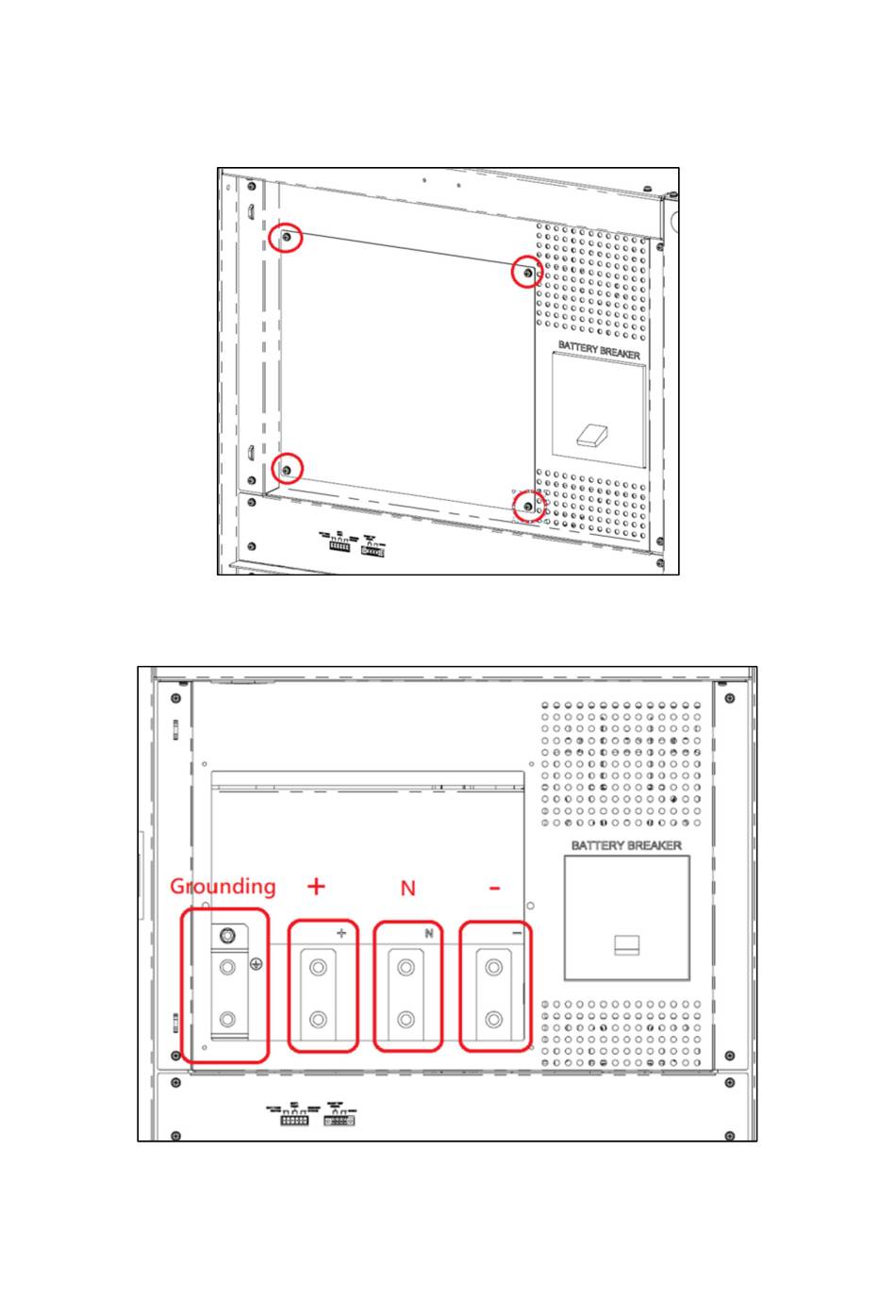

Figure 10: wiring terminal cover_ screw location
Figure 11: wiring terminals
Modulon DPH Series
19
