Operating Instructions
Instructions d'Utilisation
Manual de Instrucciones
Notes
Notas

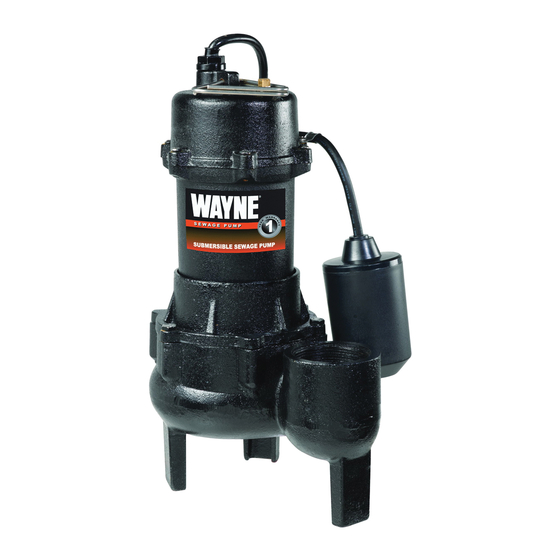

1/2 HP Cast Iron
Sewage Pump
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and/or property damage! Retain instructions for future reference.
Operating Instructions
Description
Safety Guidelines
This sewage pump is suitable for
This manual contains information that is
pumping sewage, effluent, wastewater,
very important to know and understand.
groundwater and other nonexplosive,
This information is provided for SAFETY
noncorrosive liquids with up to two
and to PREVENT EQUIPMENT PROBLEMS.
inch solids. The pump includes a wide
To help recognize this information,
observe the following symbols.
angle float switch that turns the pump
on and off as the fluid level rises and
DANGER
!
falls.
hazardous situation which, if not
Unpacking
avoided, will result in death or serious
injury.
Inspect this unit before it is used.
Occasionally, products are damaged
WARNING
!
during shipment. If the pump or
hazardous situation which, if not
components are damaged, return the
avoided, could result in death or
unit to the place of purchase for
serious injury.
replacement. Failure to do so could
CAUTION
!
result in serious injury or death.
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
NOTICE
information, that if not followed, may
cause damage to equipment.
Specifications
Power supply requirements ......120V, 60 hz
Circuit requirements..................15 amps (min)
Motor duty.................................Intermittent
Motor .........................................120V, 1 Phase
Horsepower ...............................1/2
Motor full load ..........................6.3 amps
Liquid temperature range ........40°F to 120°F
Max. operating position ...........45
from vertical
o
Dimensions.................................14" x 12"
Intake .........................................2"
Discharge....................................2" NPT female
Cut-in level (factory set)............16"
Cut-out level (factory set) .........7.5"
Differential.................................8.5"
Switch .........................................90
o
wide angle
mechanical tether switch
Power cord .................................18 gauge 3 conductor
w/plug
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2004 Wayne Water Systems
For parts, product & service information
visit www.waynepumps.com
Model RPP50
General Safety
Information
1. Know the pump application,
limitations, and potential hazards.
WARNING
!
Do not use to pump
Danger indicates
flammable or explosive
an imminently
fluids such as gasoline, fuel
oil, kerosene, etc. Do not
use in flammable and/or explosive
atmospheres. Use pump only with
Warning indicates
liquids compatible with pump
a potentially
component materials. Failure to follow
this warning can result in personal
injury and/or property damage.
2. Make certain that the power source
Caution indicates a
(electric motor) conforms to the
potentially
requirements of the equipment.
DANGER
!
Notice indicates
Disconnect power before
important
servicing. If the power dis-
connect is out of sight, lock
in the open position and
tag it to prevent unexpected
application of power. Failure to do so
could result in fatal electrical shock!
Construction
Motor housing ...........................Cast iron
Volute.........................................Cast iron
Impeller ......................................Glass reinforced PBT
Seal plate....................................Cast Iron
Shaft seal....................................Mechanical
Performance
GALLONS PER HOUR AT TOTAL HEAD IN FEET
Model
0
5
10
RPP50
5700
4560
3240
331300-001 8/04
15
900
