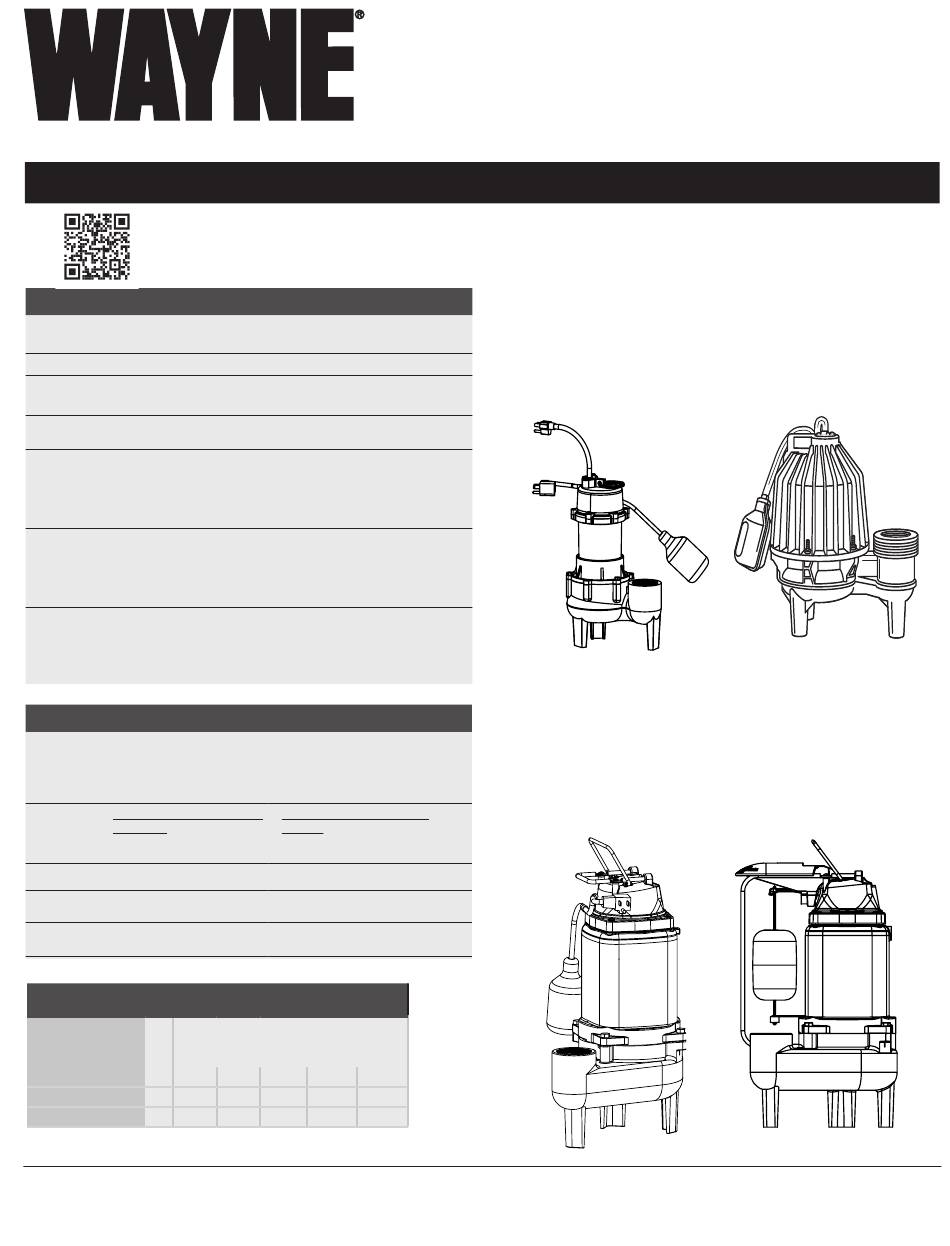

Operating Instructions and Parts Manual
Scan the QR code or visit www.waynepumps.com for the full manual in English and Español. If you are having trouble scanning the
QR code, type the following URL into your internet browser to access the manual, www.waynepumps.com/wayne-operating-manuals/
SPECIFICATIONS
POWER SUPPLY
120 V, 60 Hz
REQUIREMENTS
MOTOR
Single Phase, Dielectric Oil Filled
HORSEPOWER
1/2 HP ............ Sewage (RPP50, SEL50, WCS50T,
WCS50V)
CIRCUIT REQUIREMENTS
15 A (minimum)
DIMENSIONS
14 in. high x 12 in. base (RPP50)
13-1/2 in. high x 11 in. base (SEL50)
16-5/8 in. high x 9-5/8 in. base (WCS50T)
17 in. high x 11 in. base (WCS50V)
ON LEVEL (FACTORY SET)
Approximately 16. in. (RPP50)
Approximately 17 in. (SEL50)
Approximately 19 in. (WCS50T)
Approximately 13 in. (WCS50V)
OFF LEVEL (FACTORY SET)
Approximately 7.5 in. (RPP50)
Approximately 7 in. (SEL50)
Approximately 10.5 in. (WCS50T)
Approximately 8 in. (WCS50V)
CONSTRUCTION
Cast Iron (RPP50, WCS50T, WCS50V)
MOTOR HOUSING
Engineered Thermoplastic (SEL50)
VOLUTE
Cast Iron (RPP50, WCS50T,
WCS50V)
Cast Iron
IMPELLER
Engineered Thermoplastic
SHAFT
Steel
DISCHARGE
2 in. NPT
3 in. NPT External (SEL50)
PERFORMANCE GAL/HR
Model
HP
0 ft
RPP50
1/2
6200
SEL50
1/2 10000 9000
WCS50T, WCS50V 1/2 10000 9600
© 2024, WAYNE
Engineered Thermoplastic
(SEL50)
Glass Reinforced Thermoplastic
Discharge Head (Lift Distance)
5 ft
10 ft
15 ft
20 ft
4800
3240
1500
-
7200
5000
2000
8000
3300
-
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.

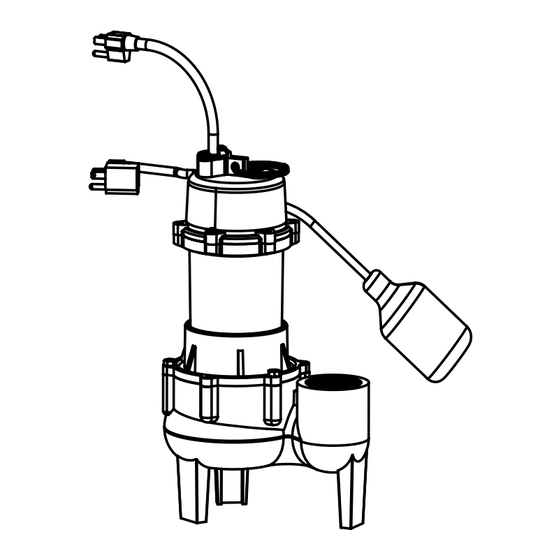

RPP50
WCS50T
Intended for Indoor Use Only
www.waynepumps.com
Sewage Pumps
Sewage
SEL50
WCS50V
610001W-001 F 11/24
Advertisement
Related Manuals for Wayne RPP50
Summary of Contents for Wayne RPP50
- Page 1 Sewage Scan the QR code or visit www.waynepumps.com for the full manual in English and Español. If you are having trouble scanning the QR code, type the following URL into your internet browser to access the manual, www.waynepumps.com/wayne-operating-manuals/ SPECIFICATIONS POWER SUPPLY...
-
Page 2: Safety Signal Words
INSTALLATION MANUAL SEWAGE PUMP DESCRIPTION Sewage pumps are pumps used to remove waste water that contains solids up to 2 inches in diameter. The most common application is for draining bathroom waste water to a sewer or septic line. Intended for indoor use only. Installation of this pump outdoors, unprotected from the weather, may cause hazardous conditions and will void warranty. -
Page 3: California Proposition 65
INSTALLATION MANUAL IT IS THE INSTALLER’S RESPONSIBILITY TO MAKE SURE THE PUMPS AUTOMATIC SWITCH IS ABLE TO OPERATE WITHOUT ANY OBSTRUCTIONS WITHIN THE BASIN. It is recommended that the installer test and observe the pump’s operation for several cycles after installation. IT IS REQUIRED TO USE RIGID PIPING AND FITTINGS to secure the pump in the basin and reduce pump movement. -
Page 4: Typical Sewage Installation
11. A vent pipe (11) is required. It removes gases and odors and should be installed as required by local, regional or state codes. 12. RPP50, SEL50, WCS50T - Secure power supply cord (8) and MINIMUM tether float (7) to discharge pipe (3) using cable or zip ties to BASIN prevent possible switch entanglement. -
Page 5: Troubleshooting Warnings
INSTALLATION MANUAL TROUBLESHOOTING WARNINGS 1. Submersible pump models have permanently lubricated bearings and require no additional lubrication. 2. Submersible pumps contain dielectric oil for cooling. Dielectric oil can be harmful to the environment. Follow state ALWAYS DISCONNECT THE PUMP FROM POWER SUPPLY before environmental laws when disposing of pump. -
Page 6: Routine Maintenance
INSTALLATION MANUAL TROUBLESHOOTING (CONTINUED) Symptoms Possible Cause(s) Suggested Remedies Pump operates 1. Worn bearings 1. Replace pump noisily or vibrates 2. Impeller broken 2. Replace pump excessively 3. Piping attachments to building 3. Install rubber coupling (available at local hardware stores) to isolate structure too rigid or too loose pump vibration from discharge plumbing Pump will not... - Page 7 INSTALLATION MANUAL REPAIR KITS REF. NO. DESCRIPTION PART NUMBER TETHER SWITCH 30000-109 (RPP50, SEL50, WCS50T) 10 FT. POWER CORD 31006-WYN2 (WCS50T, WCS50V)
- Page 8 HOW LONG DOES THE COVERAGE LAST? This Limited Warranty starts on the date of your purchase and lasts for one year (SEL50, RPP50) and three years (WCS50T, WCS50V); however, if you cannot establish proof of purchase from an authorized dealer in the form of a sales receipt or other documents that establish proof purchase from an authorized dealer (“Proof of Purchase”), then this Limited Warranty will start on the date the Product was manufactured and lasts one year (SEL50,...
