Portable submersible utility pump designed for non-automatic use in water.
Hide thumbs Also See for RUP160:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUREMENT
LIQUID TEMPERATURE RANGE
© 2018, WAYNE/Scott Fetzer Company.
120 V, 60 Hz
Single Phase
1/6 HP
15 A (minimum)
40° F- 120° F
PERFORMANCE
Model
HP
Discharge Head
RUP160
1/6
Intended for Indoor Use Only
Submersible Multi-Use Pump
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
MOTOR HOUSING
MOTOR SHAFT
IMPELLER
VOLUTE
PUMP DISCHARGE
0 ft.
5 ft.
Gal/hr
3100
2350
www.waynepumps.com
CONSTRUCTION
Thermoplastic
Stainless Steel
Thermoplastic
Stainless Steel
1-1/4 in. NPT with Included Adapter
10ft.
15 ft.
20 ft.
1600
900
250
620004-001 B 08/18
RUP160

Advertisement

Table of Contents
loading

Related Manuals for Wayne RUP160

Summary of Contents for Wayne RUP160

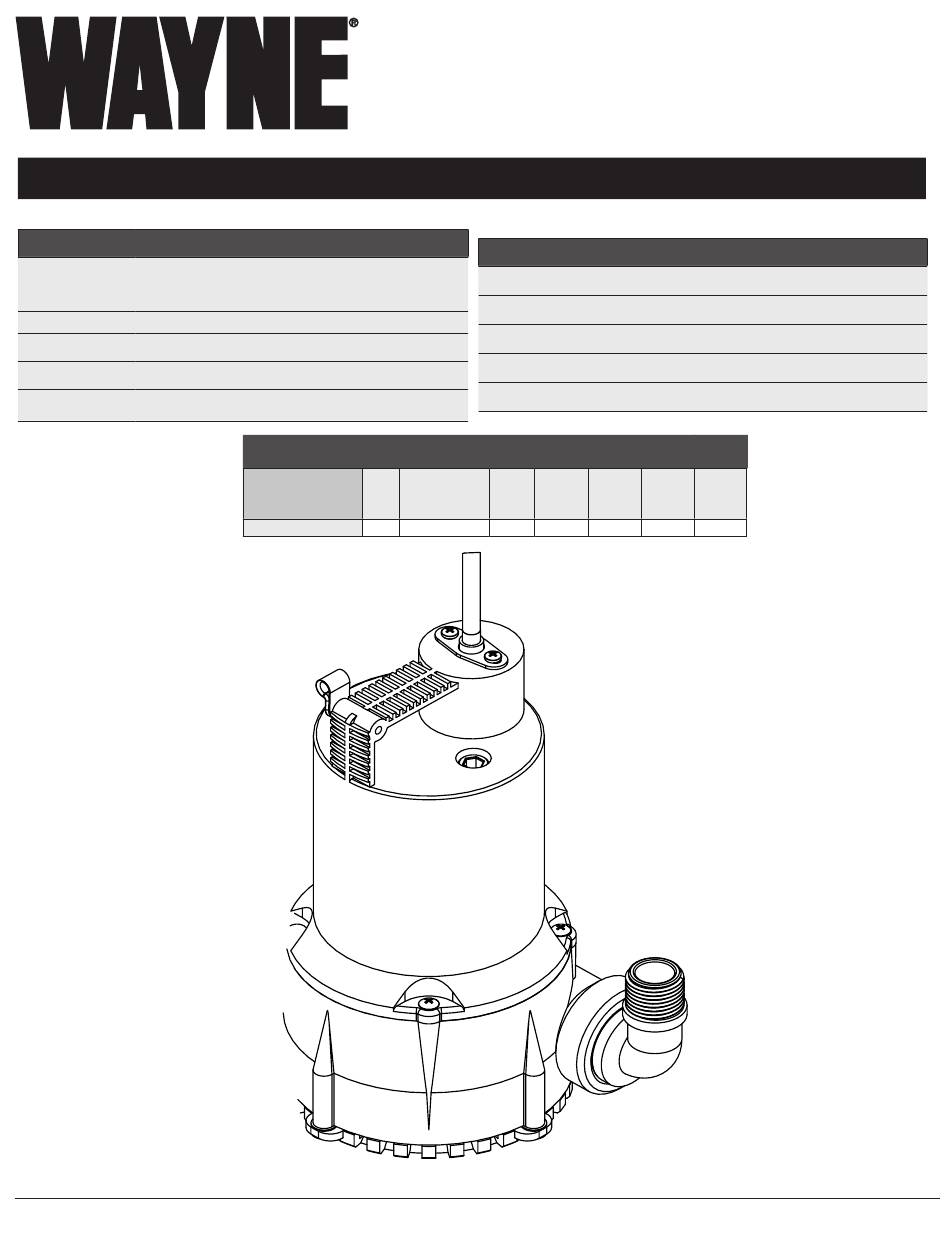

  • Page 1 1-1/4 in. NPT with Included Adapter LIQUID TEMPERATURE RANGE 40° F- 120° F PERFORMANCE Model Discharge Head 0 ft. 5 ft. 10ft. 15 ft. 20 ft. RUP160 Gal/hr 3100 2350 1600 Intended for Indoor Use Only © 2018, WAYNE/Scott Fetzer Company. www.waynepumps.com 620004-001 B 08/18...
