Page 1: User Manual
SDI-MULTI2SDIPRO Convert DVI-I, VGA, Component, S-video or Composite to 3G/HD/SD-SDI & HDMI User manual Rev1.0 P a g e... -
Page 2: Table Of Contents
KANEXPRO SDI-MULTI2SDIPRO Content Introduction ................3 Feature ................... 3 Front Panel ................4 Rear Panel ................5 Side Panel ................5 DipSwitch/LED Control ..............6 Installation ................12 Package Contents ..............12 Specifications ................13 Firmware Upload ............... 14 Appendix Table A ..............16 Update List ................ -
Page 3: Introduction

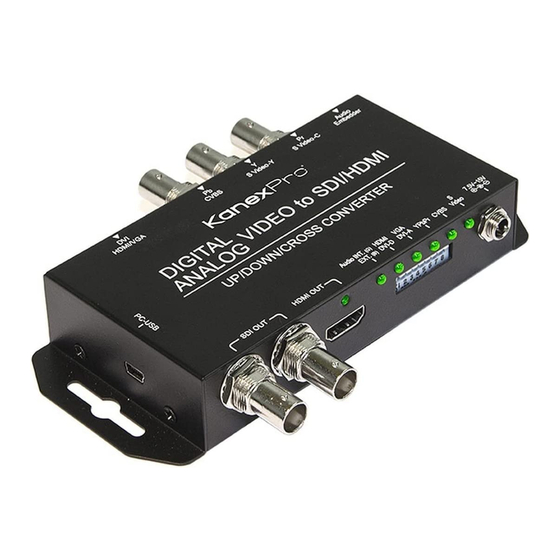

KANEXPRO SDI-MULTI2SDIPRO Introduction The KanexPro multi-cast cross converter provides multiple input conversions from HDMI, DVI-I, VGA, Component, to 3G/HD/SD-SDI & HDMI. It packs a powerful up and down video scaler supporting a bank of resolutions up to 1080p60/59.94Hz and 1080p/29.97Hz. -
Page 4: Front Panel
KANEXPRO SDI-MULTI2SDIPRO Front Panel Component Function SDI Output Port Plug your SDI displays into these ports HDMI output Port Plug your HDMI display port into this port Input Port/ Audio The LEDs would indicate Input Ports and source LED Audio Source... -
Page 5: Rear Panel
KANEXPRO SDI-MULTI2SDIPRO Format) Power Jack The Power adapter plug into here Rear Panel Component Function Phone Jack From you Audio Device plug into this port Component/CVBS/S-Video From your YPbPr/CVBS/S-Video Device Input Port plug into this port From your DVI-D/DIV-A Device plug into... -
Page 6: Dipswitch/Led Control
KANEXPRO SDI-MULTI2SDIPRO Dip Switch/LED Control Component Function Five of kinds input source be support Input Source ( DVI-D/DV-A/YPbPr/CVBS/S-Video) Two of kinds Audio input source Audio Source (Embedded audio/L/R Audio) Output format Control Box to switch Output Format. u Input Source: VPC-MX1 Box can choose one of three standard inputSource by DipSwitch. - Page 7 KANEXPRO SDI-MULTI2SDIPRO u Audio Source: VPC-MX1 Box can be select audio source from L/R Audio. Resolution Dipswitch Indicates Internal (Default) L/R Audio u Output Format: VPC-MX1box can be select 16 of kinds output format. Resolution Dipswitch Indicates Resolution 1920x1080p6 1920x1080i6...
- Page 8 KANEXPRO SDI-MULTI2SDIPRO 1920x1080p2 720x576i50 u LED Indicate: 2 3 4 5 Component Function The LED is indicate Audio Source Internal/L/R Audio indicate The LED is indicate DVI-D Signal DVI-D(HDMI) indicate The LED is indicate DVI-A Signal DVI-A(VGA) indicate The LEDs is indicate YPbPr Signal...
- Page 9 KANEXPRO SDI-MULTI2SDIPRO 1. DVI-D + L/R Audio: DVI-D + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ● ○ ○ ○ ○ Un-locked ● ○ ○ ○ ○ MicroVision ●(Blinking) ○ ○ ○ ○ P a g e...
- Page 10 KANEXPRO SDI-MULTI2SDIPRO 2. DVI-A+ L/R Audio: DVI-A + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ○ ● ○ ○ ○ Un-locked ○ ● ○ ○ ○ 3. YPbPr + L/R Audio: YPbPr + L/R Audio DVI-D DVI-A YPbPr Cvbs...
- Page 11 KANEXPRO SDI-MULTI2SDIPRO 4. Composite (CVBS) + L/R Audio: Composite(CVBS) + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ○ ○ ○ ● ○ Un-locked ○ ○ ○ ● ○ MicroVision ○ ○ ○ ●(Blinking) ○ 5. S-VIDEO + L/R Audio...
-
Page 12: Installation
2. Connect Video Source to the Input Connector. 3. Connect Display Equipment to the output’s connector 4. Connect the 12v DC adaptor to the converter. Package Contents The SDI-MULTI2SDIPRO package contains the following items: 12 | P a g e... -
Page 13: Specifications
KANEXPRO SDI-MULTI2SDIPRO User Manual x 1 12v DC Adapter x 1 SDI-MULTI2SDIPRO Converter x 1 Specifications DESCRIPTION SDI-MULTI2SDIPRO SDI Format SD-SDI, HD-SDI & 3G-SDI SDI Transition Rate 2.970Gb/s, 1.0485Gb/s and 270Mb/s HDMI(DVI-D) : 8-Channel L/R Audio :a. only 2 channel and splitter to 8... -
Page 14: Firmware Upload
KANEXPRO SDI-MULTI2SDIPRO BNC Connector 3G 75 Ω inter-locked socket USB Connector Mini-USB Dipswitch Output Format/Audio Source/Input Source Housing SECC Dimension L:153mm x W:63.3mm xH:26mm Power Source Power Adapter: AC 100 ~ 240 V/DC (+9 ~ 15 V) Operation Temperature 0~50°C [32~114°F] Storage Temperature -20~+60°C... - Page 15 KANEXPRO SDI-MULTI2SDIPRO Step 3. Plug and un-plug “DC adapter” again (the connection check status will be changed to “Connected”) and Please click the Open File button to select the firmware bin file. Step 4. Please click “Start’ Button to proceed with new firmware programming.
-
Page 16: Appendix Table A
KANEXPRO SDI-MULTI2SDIPRO Step 5. Close Upload Firmware Program tools Appendix Table A Support Input Format: 720x480i60 720x576i50 720x480 p60 720x576 p50 1280x720p60 1280x720p50 1920x1080i60 1920x1080i50 1920x1080p24 1920x1080p25 1920x1080p30 1920x1080p60 1920x1080p50 640x350p85 640x400p85 720x400p85 640x480p60 640x480p72 640x480p75 640x480p85 800x600p56 800x600p60 800x600p72... -
Page 17: Update List
Warranty A. LIMITED WARRANTY KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in agreement with the accompanying written materials for a period of 36 months (3 full year) from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. - Page 18 KanexPro has been advised of the possibility of such damages.
