3.

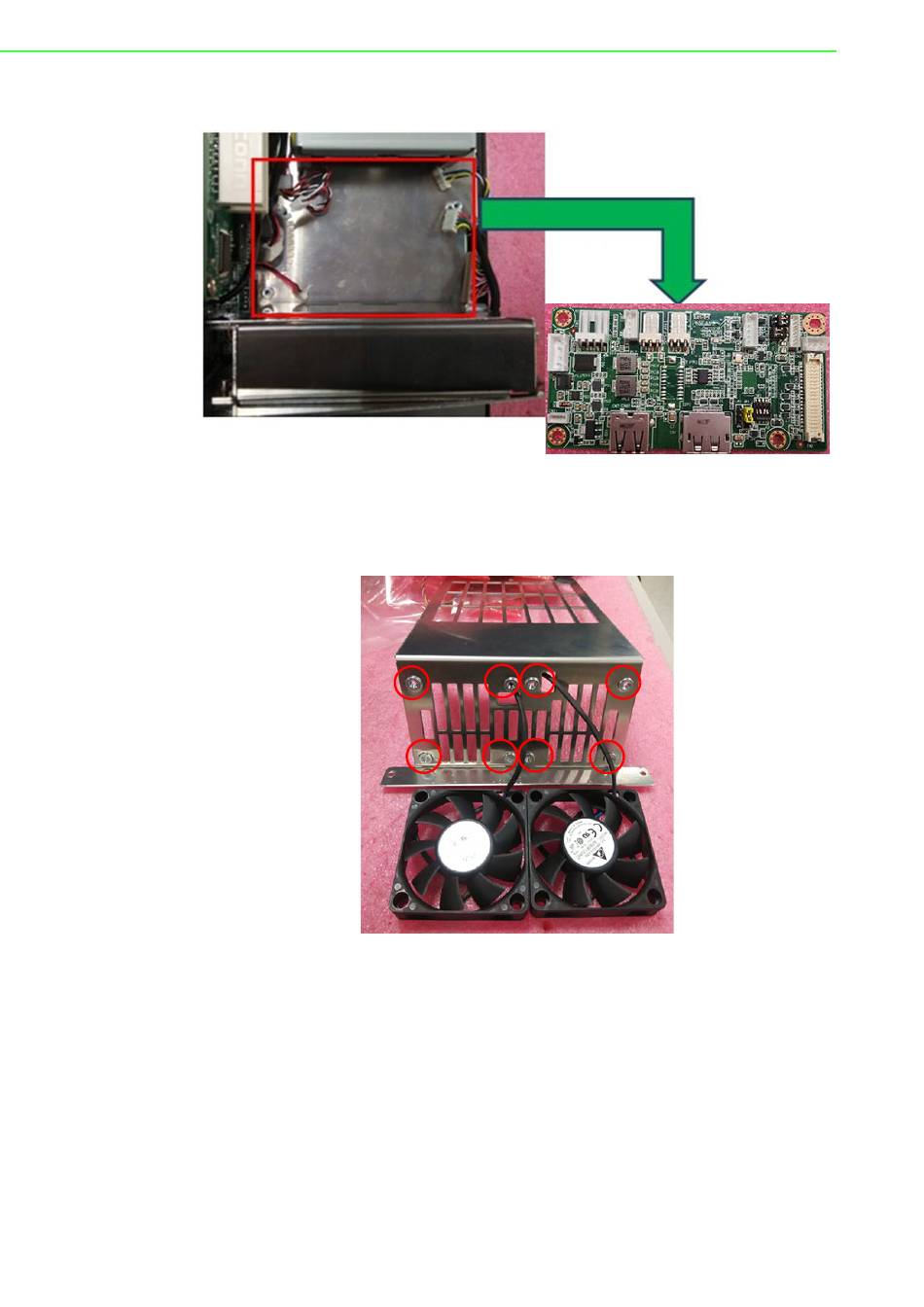

Remove the old daughter board and replace it with the new daughter board.
3.4
System Fan Replacement
1.
Remove the eight screws from the reinforced bracket.
PPC-6151C/6171C User Manual
42
