PPC-6171C:
Fixed VESA screw specification: M4; screw depth: 8 mm (Max)
Warning! Use suitable mounting apparatus to avoid risk of injury.
425
437
427
Cut-out dimention: 427mm*347mm.
1.
Max. depth for VESA mounting screw is M4*8L(mm).
2.
Optional kit for VESA mounting.

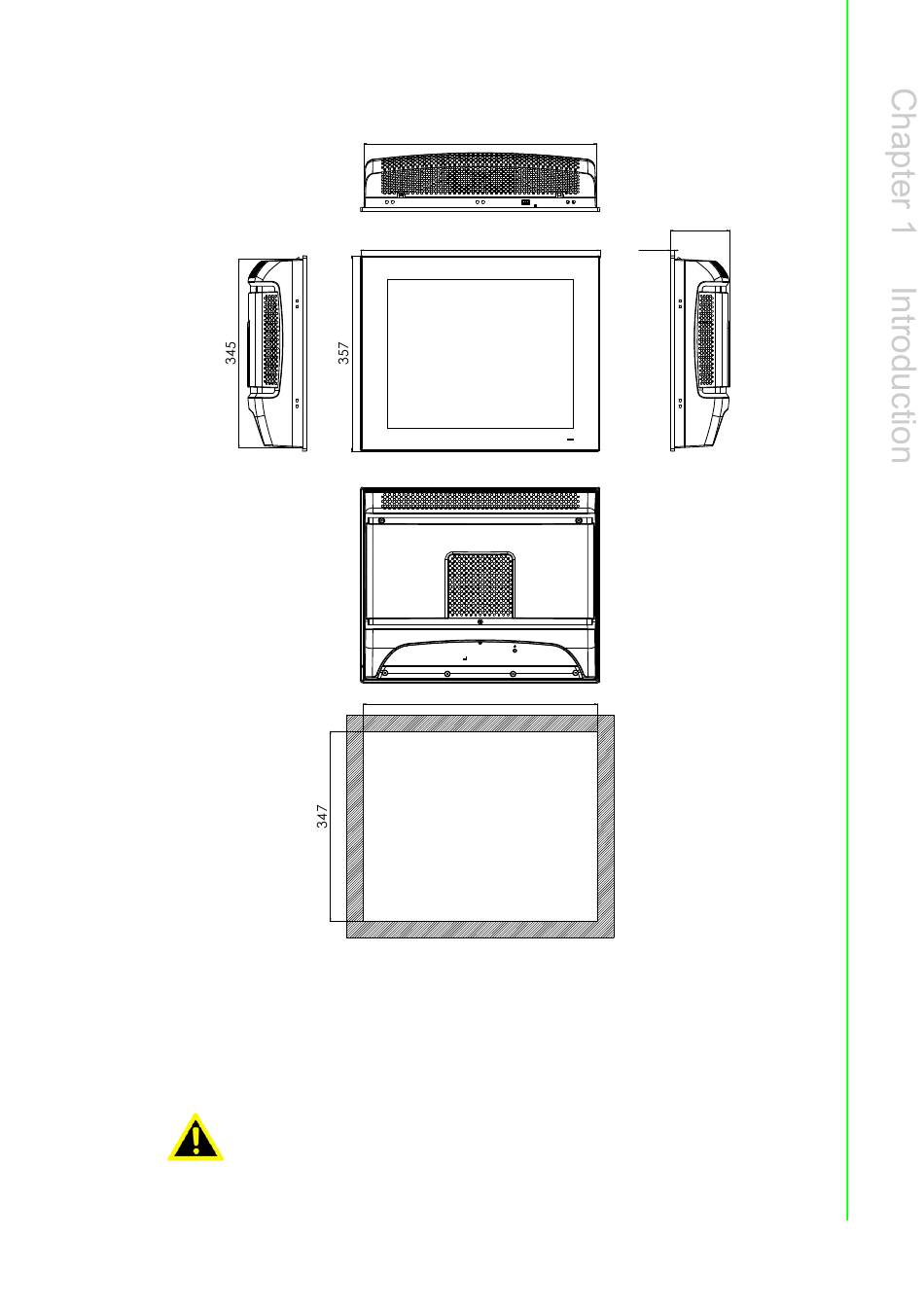

Figure 1.2 PPC-6171C dimensions
9
107.60
7.50
PPC-6151C/6171C User Manual
