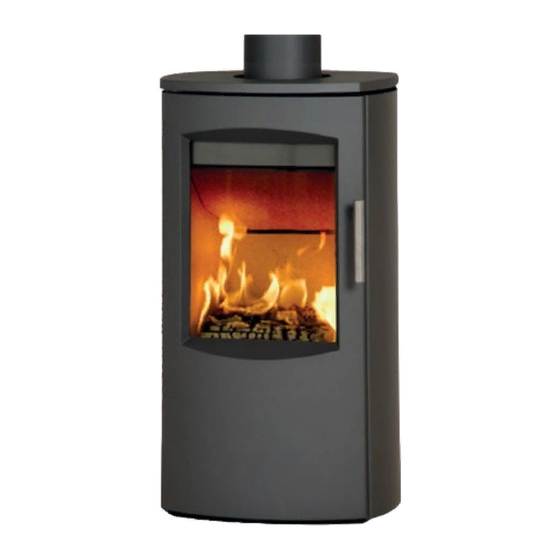

Heta Scan-line 7 Series Operating And Installation Instructions

Hide thumbs Also See for Scan-line 7 Series:

Advertisement

Table of Contents

oPeratinG anD installation
instrUCtions
sCan-line 7 series
is exemt for use in smoke control areas when burning dry wood.
Scan-Line 7C
Scan-Line 7B
Scan-Line 7D
Scan-Line 7L
Scan-Line 7B/7L
solid base
eCoDesiGn reaDy
www.heta.dk
en
Danish DesiGn . Danish QUality . Danish ProDUCtion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan-line 7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heta Scan-line 7 Series

Summary of Contents for Heta Scan-line 7 Series

  • Page 1 7 series is exemt for use in smoke control areas when burning dry wood. Scan-Line 7C Scan-Line 7B Scan-Line 7D Scan-Line 7L Scan-Line 7B/7L solid base eCoDesiGn reaDy www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...
  • Page 2 Signed on behalf the manufacturer of 18.08.2016 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Page 1 of 1...

  • Page 3: Before Installation

    Heta stove, especially if you follow the advice and instructions we have put together in these ope- rating instructions. The Scan-Line 7 series series have been approved per the EN 13240, NS 3058/3059 and 15a B-VG and the Scan-Line 7 SCA series are modified so that they are also recommended as exempt for use within smoke control areas (SCA) throughout the UK (see clean air act Appendix A).
  • Page 4 With your new wood stove you should find the following: Q.C. check Operating / Instruction manual Data plate Heta glove 8057 0000-DK Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A Testrapport: 300-ELAB-2276-EN SN No.

  • Page 5: Installation Instructions

    However, we recommend leaving a gap of at ney sweep evaluate your chimney. least 5 cm to facilitate cleaning behind the stove. The Scan-Line 7 series can be installed with a The minimum distances to flammable mate- horisontal straight back outlet. Maximum length rial are stated on the boiler plate and are li- of the pipe should be 500 mm with a 5”...

  • Page 6: First Firing

    Draft conditions reduced draft can occur when: Poor draft may result in smoke being emitted • The difference in temperature is too small from the stove when the door is opened. The – due to insufficient chimney insulation, for minimum chimney draft to ensure satisfacto- example.

  • Page 7: Chimney Fires

    It is advised not to use very oil-containing firing. The secondary air is completely open to woods like teak tree and mahogany, as this the right. can cause damage to the glass. Start-up air is completely open to the right. The damper closes after start-up.

  • Page 8: Reduced Burning

    fuser at the back of the firebox and ensure that supply must never be shut off completely du- the wood is retained by the log guard. Always ring firing. It is important to keep a good bed of ensure that the wood is not tightly stacked so embers.

  • Page 9: Maintenance

    stove data table in accordance with en 13240 testing Stove Nominal Smoke Fuel Draught Nominal Heat Distance to flammable materials Distance to Stove type fluegas stub volume output output furnitures from weight behind the stove at the sides Scan-Line temperature mbar tested the stove...

  • Page 10: Operational Problems

    operational problems cases where the wood burns too quickly, this The chimney must be swept at least once a year, may be due to excessive chimney draught. You we recommend the use of a NACS (national as- should also check to make sure that the door sociation of chimney sweeps) registered chim- seal is intact and correctly fitting.

  • Page 11: Troubleshooting

    troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.
  • Page 12 stovedrawings / measurment scan-line 7B ø100 External fresh air External fresh air from below from behind Scan-Line 7B Steel Stone top Stone The dimensions are the minimum dimensions, unless otherwise stated. stovedrawings / measurment scan-line 7C External fresh air from behind For non combustible wall...
  • Page 13 stovedrawings / measurment scan-line 7D External fresh air from behind External fresh air from below External fresh air from behind (1515-0011 Not incl.) Scan-Line 7D Steel 1063 Stone top 1093 The dimensions are the minimum dimensions, unless otherwise stated. stovedrawings / measurment scan-line 7D low model External fresh air from behind Scan-Line 7D...
  • Page 14 stovedrawings / measurment scan-line 7D turnable External fresh air from behind (1515-0011 Not incl.) External fresh air from below Scan-Line 7D Turnable 90° Steel 1177 Stone top 1106 The dimensions are the minimum dimensions, unless otherwise stated.
  • Page 15 stovedrawings / measurment scan-line 7l External fresh air from behind The dimensions are the minimum dimensions, unless otherwise stated. External fresh air from behind Scan-Line 7L H/H1 Steel 195 462 415 725/1013 Stone top 196 470 416 754/1042...
  • Page 16 Guarantee - Damage caused by improper use. - Transportation costs for warranty repair. Heta wood stoves, subjected to a strict quality - Assembly / disassembly of warranty repair. control during production and before delivery to the dealer. Should you have cause to make a complaint, Therefore, the stoves guarantee is please quote our invoice no.

  • Page 17: Rear Connection

    scan-line 7D Scan-Line 7D is available on solid base and on rotary base. To operate the rotary base, turn the small handle in front of the stove. Scan-Line 7D is available on solid base Scan-Line 7 D on rotary base. (Rotates 45 degrees til each side) scan-line 7 D optional connection of external air flow...
  • Page 18 Connection through column from below • Loosen screw in ø100 connector and attach cover ø105 mm (supplied) • You can now connect external air flow up through the column. Fig. 3 scan-line 7 B Connection of external air flow (fresh air) via rotating floor base • Remove the ashtray from the stove.
  • Page 19 emptying the ash pan. fig. 1-3 lubricate ash pan Grease not included. 2 x Grease - Cleaning after sweeping the chimney and replacing the stones. fig. 1-5...
  • Page 20 Clean Air Act requirements In England appliances are exempted by publica- The Scan-Line 7 series have all been recommen- tion on a list by the Secretary of State in accor- ded as suitable for use in smoke control areas dance with changes made to sections 20 and when burning dry wood logs.
