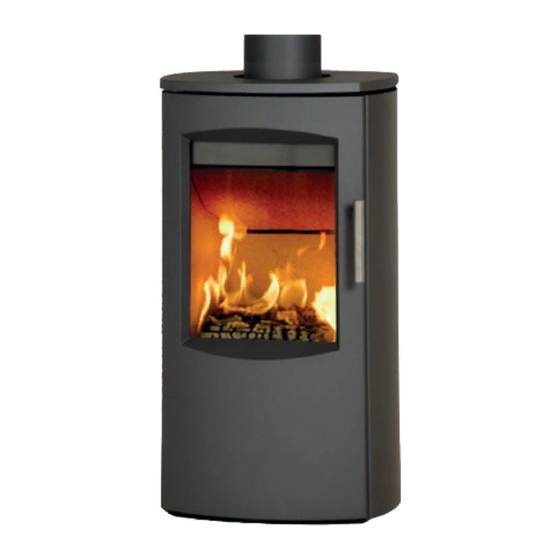

Heta Scan-line 7 Series Operating And Installation Instructions
  1. Manuals
  2. Brands
  3. Heta Manuals
  4. Stove
  5. Scan-line 7 Series
  6. Operating and installation instructions

Heta Scan-line 7 Series Operating And Installation Instructions

Hide thumbs Also See for Scan-line 7 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
oPeratinG anD installation
instrUCtions
sCan-line 7 series
is exemt for use in smoke control areas when burning dry wood.
Scan-Line 7C
Scan-Line 7B
Scan-Line 7D
Scan-Line 7L
Scan-Line 7B/7L
solid base
eCoDesiGn reaDy
www.heta.dk
en
Danish DesiGn . Danish QUality . Danish ProDUCtion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan-line 7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heta Scan-line 7 Series

Summary of Contents for Heta Scan-line 7 Series

  • Page 1 7 series is exemt for use in smoke control areas when burning dry wood. Scan-Line 7C Scan-Line 7B Scan-Line 7D Scan-Line 7L Scan-Line 7B/7L solid base eCoDesiGn reaDy www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...

  • Page 2: Table Of Contents

    Heta stove. Especially if you follow the following advice and instructions. Scan-Line 7 series have been approved according to the EN 13240, NS 3058, NS 3059 and A15 Austria. These approvals, means that the wood stove meets a variety of specifications and requirements, ensuring it is made of quality materials, minimum environmental impact and that it has an optimum fuel economy.

  • Page 3: Before Installation

    It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
  • Page 4 With your new wood stove you should find the following: Operating / Q.C. check Instruction manual Heta glove Data plate 8057 0000-DK Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark 0023-9002 EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A Testrapport: 300-ELAB-2276-EN SN No.

  • Page 5: Operating Instructions

    1. oPeratinG instrUCtions 1.1 Before using 1.3 regulating the air flow Before the wood stove is used make sure re- The stove is supplied air by means of the control quired installation conditions, are met. handles placed at the back of the side panel of See page Scan-Line 7 B C D.

  • Page 6: Refueling

    Then adjust the combustion air to the level re- quired. For nominal operation (4.5 kW), the combustion air supply should be 50% open. When firing, take care not to place the pieces of fuel too clo- sely together, as this will result in poor combu- stion and insufficient exploitation of the fuel.

  • Page 7: Reduced Burning

    Never turn down the air down so much that there ficiency. Heta wood stoves are constructed so does not come any flames from the tree. Wait to that it itself provides an optimal blend of com- close the air until the flames haveburnt out and bustion air.

  • Page 8: Fuel

    salt which can damage both the stove and the chimney. Similarly, you must not fire your stove with refuse, painted wood, pressure-impregna- ted wood or chipboard, as these materials can emit poisonous fumes and smoke. Correct firing using well seasoned wood pro- Combustion vides optimal heat output and maximum effi- ciency.

  • Page 9: Operating Problems

    release case, much of the heating energy is used to dry the wood, resulting in poor efficiency, potential- At combustion 1000 litres of heating oil forms ly damaging the vermiculite and an increased 3.171 tons CO . As wood is a CO neutral heat/ risk of soot deposits in the chimney.

  • Page 10: Cleaning/Replacing Bicks After Chimney Sweeping

    1.15 Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 4. lubricate ash pan Grease not included.

  • Page 11: Diagram For Maintenance

    1.16 Diagram for the maintenance Qualified Stove Owner Technicia Maintenance / Period Before 60-90 1st Year 2st Year Daily Autum week days days Cleaning the chimney (see. Chimney) Cleaning the chimney and stove Cleaning the stoves firebox Cleaning combustion air intake Cleaning ash bucket Cleaning of the firebox Checking / switch, gasket for door...

  • Page 12: Troubleshooting

    1.18 troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.

  • Page 13: Garantee

    Therefore, the duration of the warranty is 5 years on this product, covering manufactu- rer’s defects, 1 year on paint adhesion defects from purchase date from Heta and a 3 months total warranty for seals, vermiculite and glass from the date of sale from the dealer.
  • Page 14 Parts - stove door scan-line 7C, 7D, 7l Pos. Name Qty. 1 0008-1002 M6x6 Pinole screw 2 0008-2005 M5x10 screw 3 0008-2306 M4x8 screw 4 0016-0031 Handle 5 0021-0036 Glass 6 0023-3013 Glass tape 3x8 L=1,45 m 7 0023-3015 Glass gasket ø10 L=1,6 m 8 1013-0529 Glass clips 9 4005-0032...

  • Page 15: Installation Instructions

    installation instructions Contents Installation instructions ............... 16 Distance requirements ................ 16 Floor ....................16 Chimney connection ................16 Combustion air and ventilation ............17 Stovedrawings/measurments ............17-20 Wall-mounting the stove Scan-Line 7C ..........21 Connecting direct air below or behind Scan-Line 7B ......22 Optional connection of external air flow - Scan-Line 7D ....

  • Page 16: Installation Instructions

    / or The minimum distance to combustibles can be beading. Heta A/S stresses that it is of utmost found on the model plate provided with the sto- importance that this is done correctly with very ve or on page 11 of this manual.

  • Page 17: Combustion Air And Ventilation

    For connections to chimneys that are run through • The air inlet vent must be fitted correctly and ceilings, all national and local regulations regar- insulated to prevent formation of condensate. ding distance to flammable material must be fol- The cross section of the vent and grille must lowed.
  • Page 18 scan-line 7D External fresh air from behind External fresh air from below External fresh air from behind (1515-0011 not incl.) Scan-Line 7D Steel 1063 Stone top 1093 scan-line 7D turnable External fresh air from behind (1515-0011 not incl.) External fresh air from below Scan-Line 7D Turnable...
  • Page 19 scan-line 7l External fresh Do not stand on a air from behind flammable floor without a rotary base External fresh air from behind The dimensions are the Scan-Line 7L H/H1 minimum dimensions, Steel 195 462 415 725/1013 unless otherwise stated. Stone top 196 470 416 754/1042...
  • Page 20 scan-line 7C External fresh air from behind Non-combu- stible wall Scan-Line 7C Steel Stone top scan-line 7D Scan-Line 7D is available on solid base and on rotary base. To operate the rotary base, turn the small handle in front of the stove. Scan-Line 7 D on rotary base.

  • Page 21: Wall-Mounting The Stove Scan-Line 7C

    2.6 Wall-mounting the stove scan-line 7C Attach the wall fitting (can be used as a drilling There are four wall brackets on the back of the template) to a non-combustible wall with four stove. The lower wall brackets on the stove just bolts dimensioned to bear the weight of the sto- rest on the lower side screws of the wall fitting.

  • Page 22: Connecting Direct Air Below Or Behind Scan-Line 7B

    Flexi pipe optimal combustion. back outlet Heta recommends max. 4 meters of direct air pipe, with max. 3, 90° bends and a min. Flexi-pipe to the floor of ø100 mm. 2.8 optional connection of external air flow - scan-line 7D...

  • Page 23: Scan-Line 7B Connection Of External Air Flow Via Rotating Floor Base

    Connection through column from below Loosen screw in ø100 connector and attach cover ø105 mm 1027-0302 (supplied) You can now connect external air flow up through the column. Fig. 2. 1027-0302 2.9 scan-line 7B Connection of external air flow (fresh air) via rotating floor base Remove the ashtray from the stove.

  • Page 24: . 23 2.10 Changing To A Back Flue Outlet

    2.10 Changing to back smoke outlet 0030-2410 Extra purchase...
  • Page 25 Clean Air Act requirements In England appliances are exempted by publica- The Scan-Line 7 series have all been recommen- tion on a list by the Secretary of State in accor- ded as suitable for use in smoke control areas dance with changes made to sections 20 and when burning dry wood logs.

  • Page 27: Eu Declaration Of Conformity

    Certifikat no. 2534 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Scan-Line 7 2534-2020 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 7B, 7C, 7D, 7L serie The identified product described above is in...
