Scan Line 7 Series
(7D, 7AD, 7BD, 7CD, 7DD)
APPROVED FOR USE BY DEFRA IN SMOKE CONTROL AREAS
WHEN BURNING DRY WOOD LOGS
(when fitted with a permanent stop on the primary air and Secondary air)

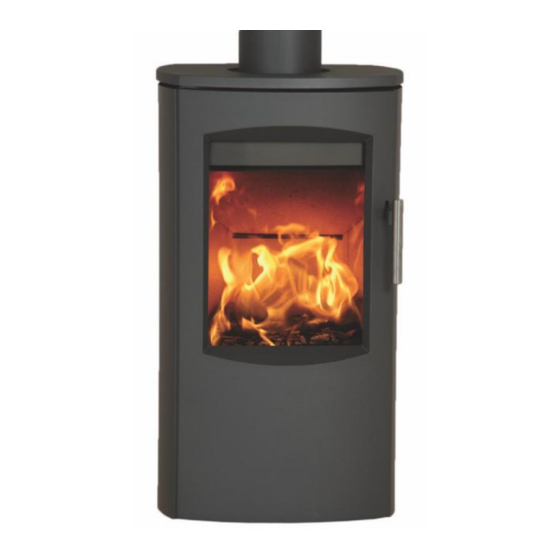

Scan-Line 7AD
Scan-Line 7BD
www.heta.dk
Installation and Operating Instructions for Scanline 7 Stove Series
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Heta Scan Line 7D
Summary of Contents for Heta Scan Line 7D

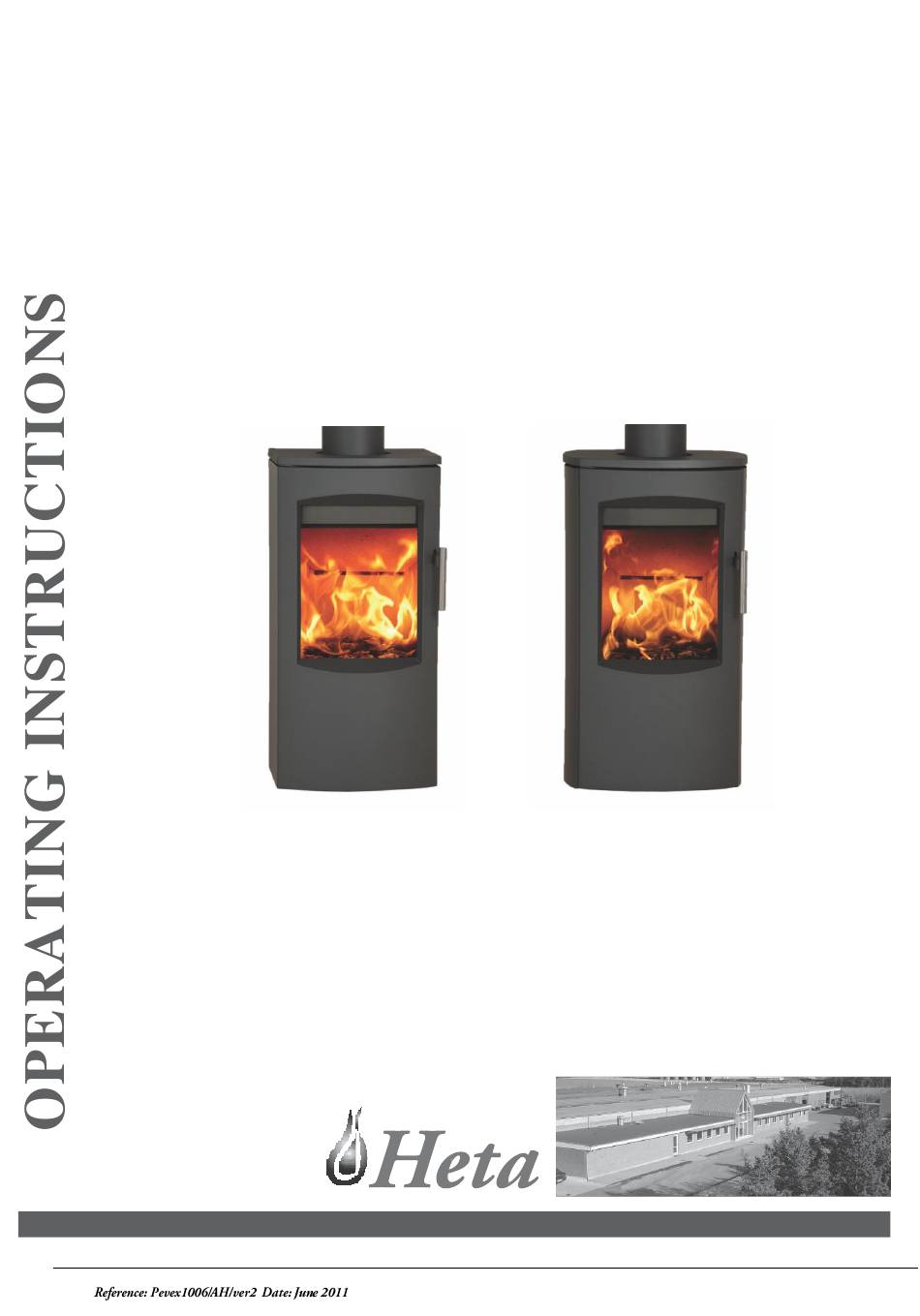

- Page 1 APPROVED FOR USE BY DEFRA IN SMOKE CONTROL AREAS WHEN BURNING DRY WOOD LOGS (when fitted with a permanent stop on the primary air and Secondary air) Scan-Line 7AD Scan-Line 7BD www.heta.dk Installation and Operating Instructions for Scanline 7 Stove Series Page 1 of 10...
-
Page 2: Installation Instructions
Congratulations on your new stove. We are sure that you will be happy with your investment, especially if you follow the advice and instructions we have put together in these operating instructions. The Scanline 7 series has been approved according to the DIN EN 13240, DINplus and 15a B-VG and has been fully tested and approved for use in smoke control areas throughout the UK (see clean air act Appendix A). - Page 3 It is important that the chimney is fitted with roof support so that the top panel of the stove is not required to bear the entire weight of the chimney (excessive weight may damage the stove). Draft conditions Poor draft may result in smoke being emitted from the stove when the door is opened. The minimum chimney draft to ensure satisfactory combustion in stoves of this kind is 12 PA.
- Page 4 Mountain Poplar pine Willow It is advised not to use very oil containing woods like teak and mahogany, as this can cause damage to the glass. Heating value in wood You have to use about 2.4 kg normal wood to replace one litre of heating oil. All woods have almost the same heating value per kg, which is about 5.27 kW/ hour for absolute dry wood.
- Page 5 LIGHTING INSTRUCTIONS FOR HETA STOVES 1. Place some scrunched up Fully open the primary 3. With plenty of air the newspaper and firelighters on and secondary air controls. flames will burn brightly the base of the stove and stack Light...
-
Page 6: Operational Problems
Refuelling You should normally refuel the stove while there is still a good layer of embers (insufficient burning embers will cause excessive smoke to occur when you refuel the stove). Distribute the embers across the bottom grate, place pieces of fuel (max 0.7 kg) on the embers in a single layer perpendicular to the firing opening. -
Page 7: Maintenance
the draft can become so powerful that it may be necessary to fit a damper in the flue gas pipe to regulate the draft. When cleaning the chimney, soot and other deposits may come to fall on the smoke turning plate. In cases where the wood burns too quickly, this may be due to excessive chimney draught. - Page 8 The stove is prepared for a fresh air intake. Emptying the ash pan, fig. 3-5 Fig 3 Fig 4 Fig 5 Cleaning after sweeping the chimney and replacing the firebricks fig 6-10 Fig 9 Fig 10 Fig 6 Fig 7 Fig 8 Fig 6 Fig 9...
- Page 9 Changing to back smoke outlet fig. 11-18 Fig 15 Fig 11 Fig 12 Fig 16 Fig 13 Fig 17 Fig 18 Fig 14 Installation and Operating Instructions for Scanline 7 Stove Series Page 9 of 10...
- Page 10 Appendix A The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area.
