23.1 – It's final assembly time! The first thing up is getting the extruder installed on to the
extruder mount. As shipped, the extruder is designed to feed both 1.75mm and 3.0mm filament. This
set up is going to focus on the 1.75mm settings.
23.2 – Orient the extruder as shown in Fig. 117. You want to make sure the 1.75mm groove is
aligned with the Bowden fitting on the extruder mount.
23.3 – You want to install the extruder so that it aligns the 1.75mm drive groove with the
Bowden fitting on the mount. See below:
Rostock Max Assembly Guide
23 – Final Assembly!

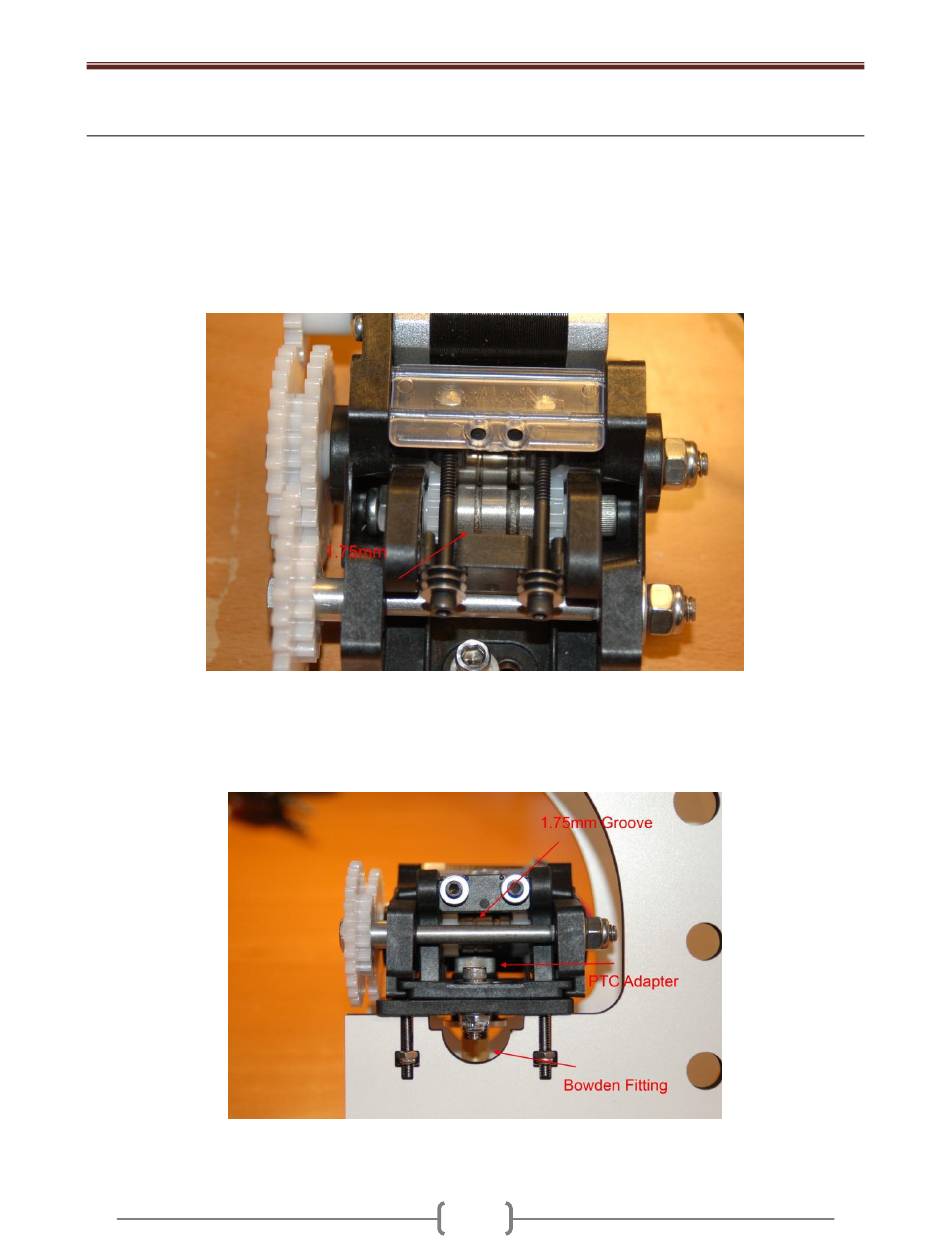

Figure 117 - Extruder with 1.75mm drive highlighted.
Figure 118 - Extruder correctly installed.
