Rostock Max Assembly Guide
4.4 - Pin 1 on the connector is indicated by a small triangle pointer that points to the end of the
connector. Fig. 20 below shows a 2 pin connector with this pin 1 arrow. The four pin stepper
connectors have the same style indicator.

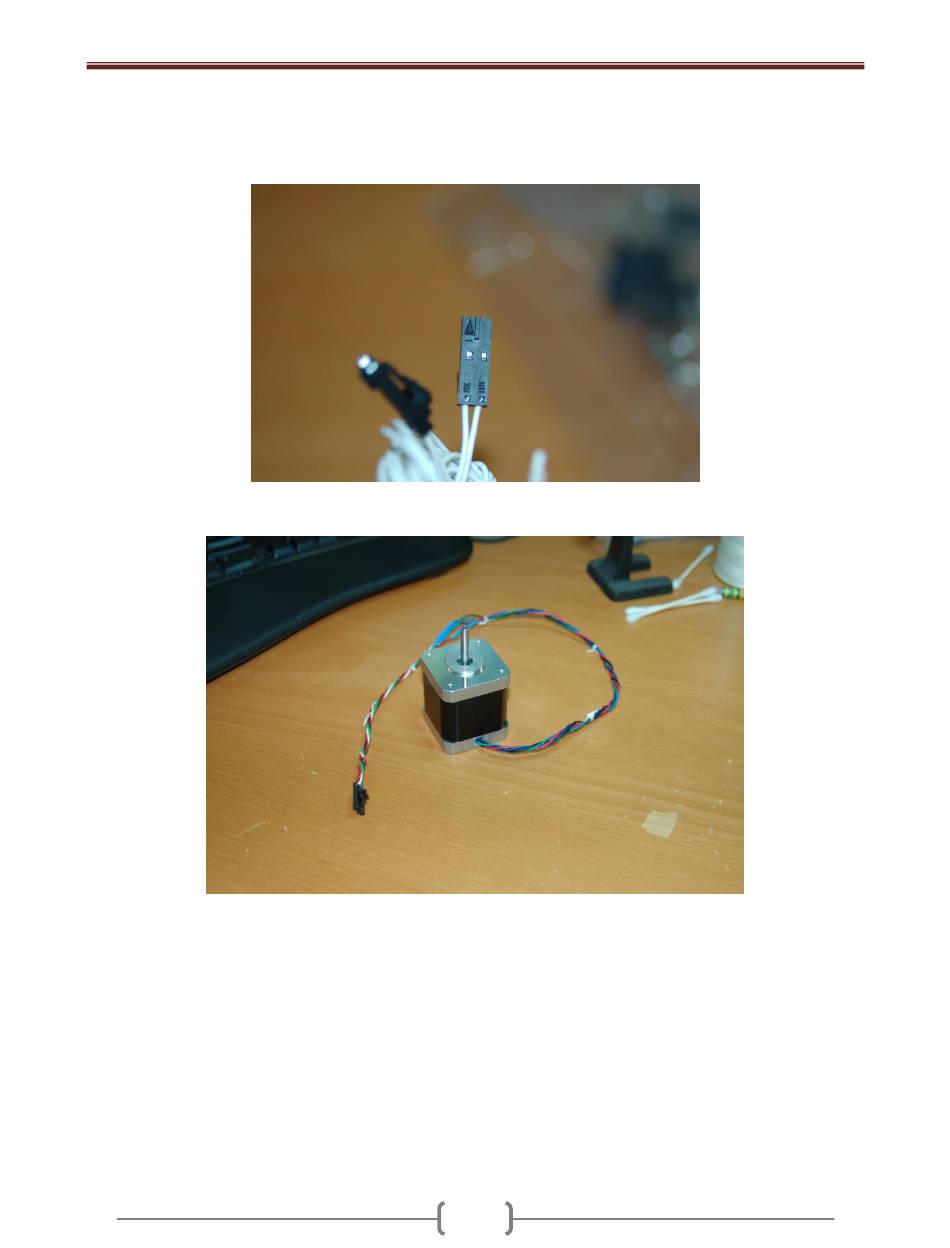

Figure 20 - Pin #1 Indicating Arrow
Figure 21 - Stepper motor with connector installed
16
