1.8 - Dry fit the parts as shown in Fig 7 in order to get an idea how they go together. You'll do
this for many steps in the assembly guide. Next, pop out the counter-sink rings on the Tri-Support and
install a pair of #6-32 Nylon lock nuts into the notches in the T-Slot Support as shown below.
1.9 - Take two #6-32, 1" long flat head machine screws and attach the T-Slot Support to the Tri
Support as shown. Make sure that the counter-sink rings are facing out when you assemble the parts.
Rostock Max Assembly Guide

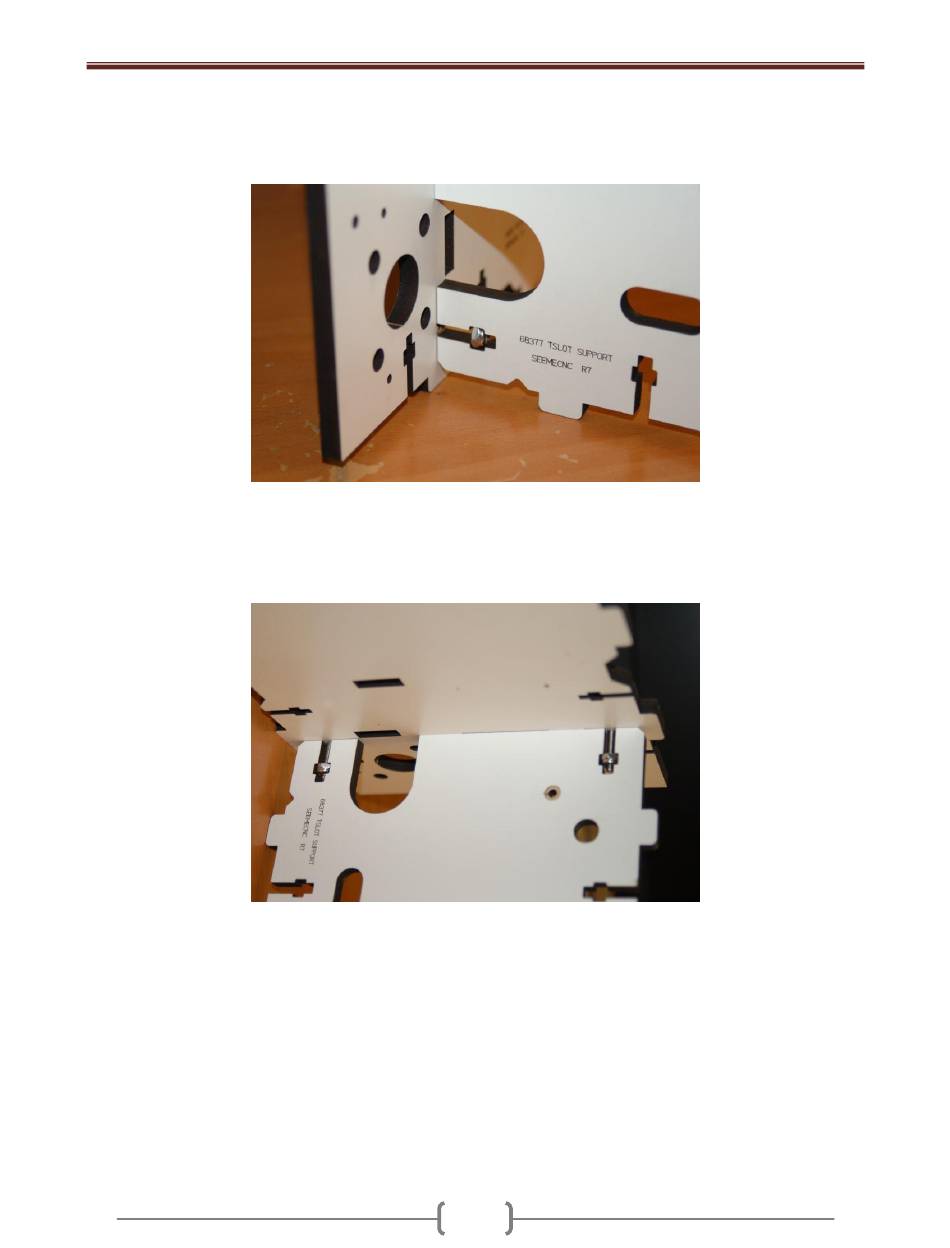

Figure 8 - Lock nut installed in the T-Slot Support.
Figure 9 - Tri Support assembled.
7
