Rostock Max Assembly Guide
1.13 - Leave the screws a bit loose until all three assemblies are installed. Install first two as
shown:

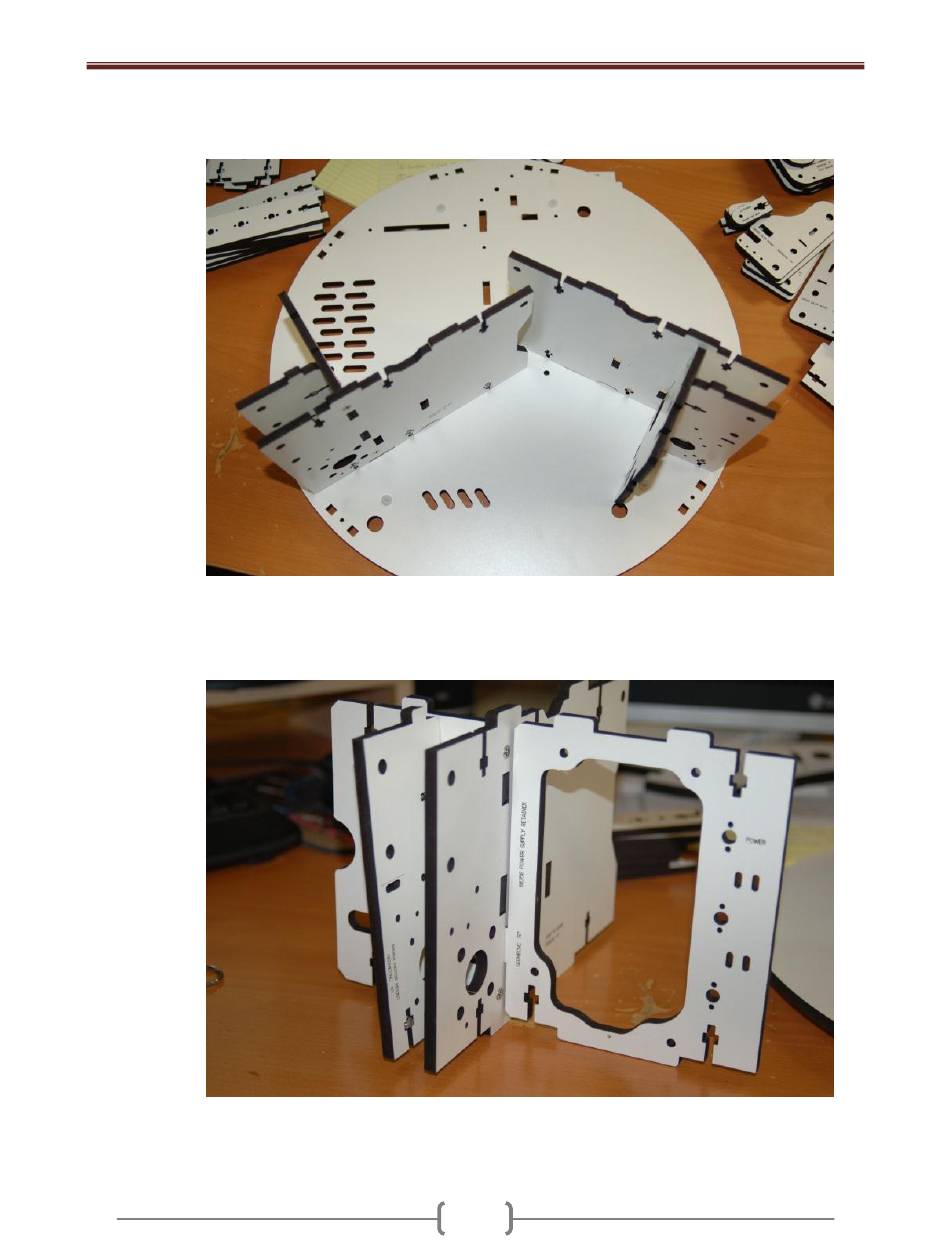

Figure 11 - Two Supports installed.
1.14 - Install Power supply mount in third support – note that it's a simple friction fit at this
point. It gets attached to the base when the whole assembly is installed.
Figure 12 - Power Supply Bracket in place.
9
