1.1 – Pop out the counter sink rings from the bottom plate (P/N: 68355)
1.2 - The counter-sink rings are simply circles have been engraved through the Melamine
surface. Popping them out is easy using the point of a razor knife. It exposes the softer inner material
of the Melamine and allows flat head screws to create their own counter-sink by the pressure they apply
as they're tightened down.
1.3 – Install the six feet to the bottom face of the base plate (P/N:69355).
Rostock Max Assembly Guide
1 – Assembling the Machine Base

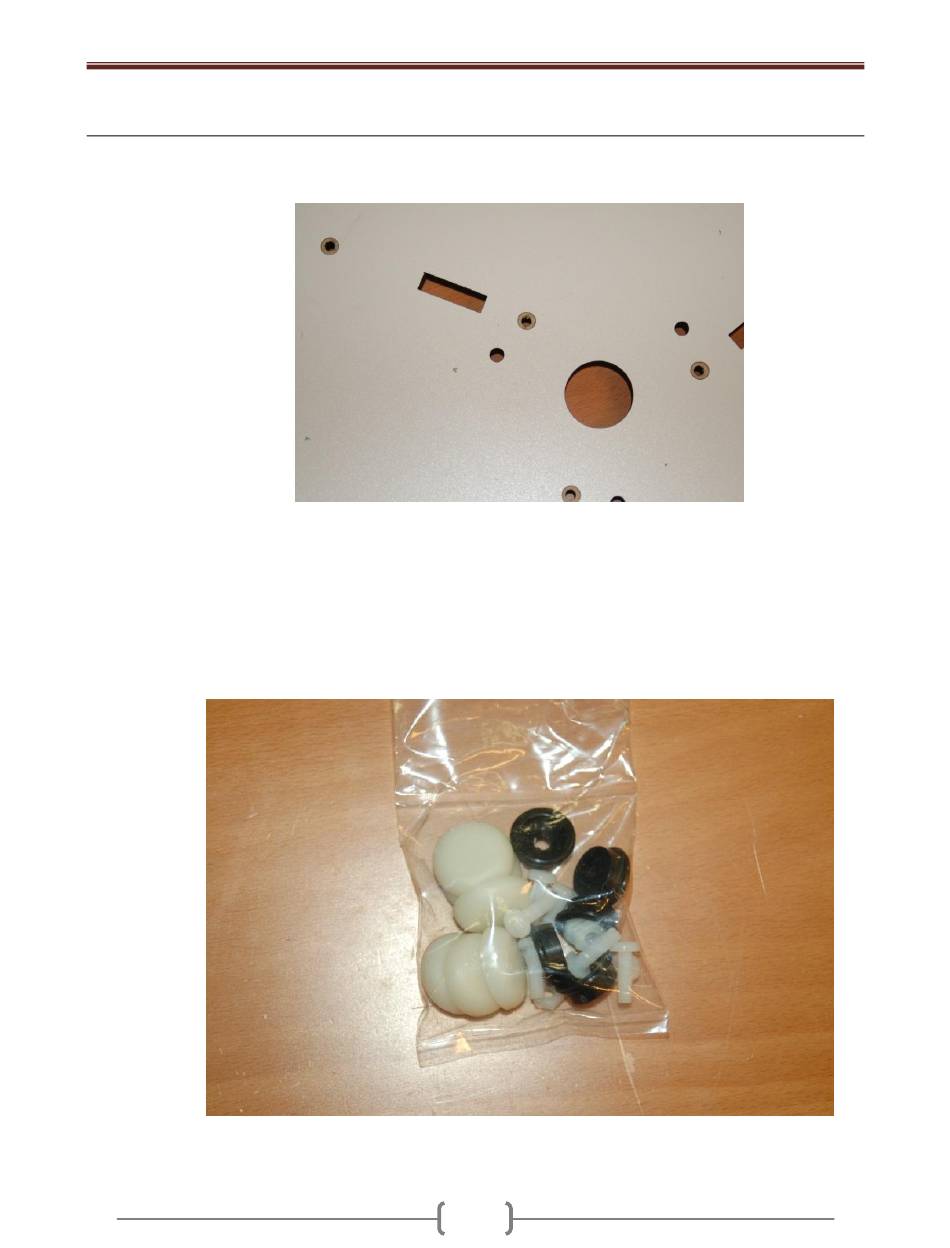

Figure 2 – Countersink rings.
Figure 3 – Plastic parts that make up the feet for the machine.
4
