Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 V AC 50/60 Hz
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15 A slow-blow
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . < 70 V A
Temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . +10° - 50°C (at < 90% humidity)
Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 channel LEDs (red/green) and Power LED
Depth of Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380 mm at least
Dimensions (W x H x D) . . . . . . . . . . . . . . . . . . . . . . . 19", 2HU (440 x 88 x 310 mm)
MCW-D 10 / LE-D 10 Charger
Max. charging current . . . . . . . . . . . . . . . . . . . . . . . . 1 A
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 V AC / 230 V AC, 50 / 60 Hz
Charging principle . . . . . . . . . . . . . . . . . . . . . . . . . . . software controlled charging curve, variable impulse charging,
re-charging after 72 hrs.
Rechargeable battery . . . . . . . . . . . . . . . . . . . . . . . . . NiMH, 12 cells
Switching-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ∆ U-recognition and safety timer
Fuse at the mains socket . . . . . . . . . . . . . . . . . . . . . . 6.3 A slow-blow fuse
Max. ambient temperature . . . . . . . . . . . . . . . . . . . . 40°C when charging (< 90% atmospheric humidity)
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . -20° - 55°C
Ventilator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . switched on automatically
Charging unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 microphone units
Charging time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2 hours when the battery is completely empty (1600 mAh)
Min. charging time in the "forming" mode . . . . . . . 30 minutes
LED-indication when battery is charged:
a) ___ ___ ___ __ LED is flashing slowly: . . . . . . . Battery is charged
b) _________________ LED illuminates permanently: . Battery is full
c) - - - - - - - - - - - - - - LED is flashing very rapidly: . . . Error
d) LED is off: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No microphone unit is inserted into charging compartment or has no contact
e) . . . . . . . . LED flashes rapidly: . . . . . . . . . Forming mode
f) . - . - . - . - . - . - . - . LED long flash/short flash: . . . . Charging in the forming mode
Dimensions (L x W x H). . . . . . . . . . . . . . . . . . . . . . . . 657 x 370 x 451 mm
CA 2451 PCB Individual In/Out
8 inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorder
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)
8 outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorder
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)
Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. level
Input level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. level (without limiter)

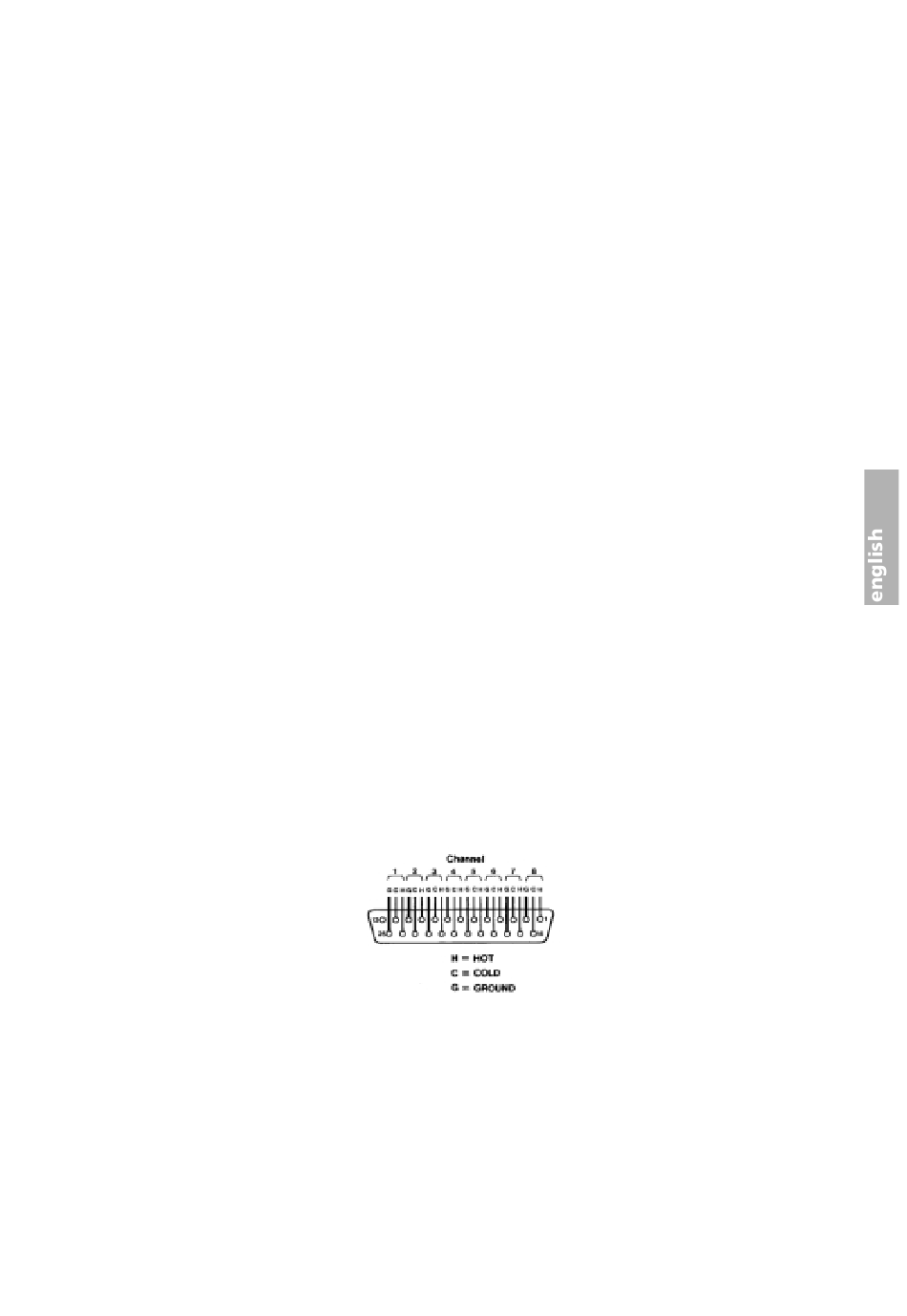

Connection:
CA 2455 DC Power Supply Unit
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V (± 0.5 V) DC
Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . max. 333 mA
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 V AC 50/60 Hz
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Euro plug, other plugs upon request
