Summary of Contents for Beyerdynamic MCS-D 3643
- Page 1 BEDIENUNGSANLEITUNG OPERATING INSTRUCTIONS NOTICE D’UTILISATION MCS-D 3643 Systemeinheit System unit Unité de système...
-
Page 2: Table Of Contents
MCS-D 3643 – Contents Introduction ........... . 20 Safety information. -
Page 3: Introduction
The MCS-D 3643 system unit has been developed for remote installation in conference rooms and is suitable e.g. for installations under the table. Several MCS-D 3643 system units are connected in a daisy chain to the MCS-D 200 control unit or to a CA 4146 power supply unit. - Page 4 MCS-D 3643 – Safety Information Volume • If you use earphones or headphones with the microphone unit, please make sure that the volume is not set too high. If the volume is set too high, your hearing can permanently be damaged.
-

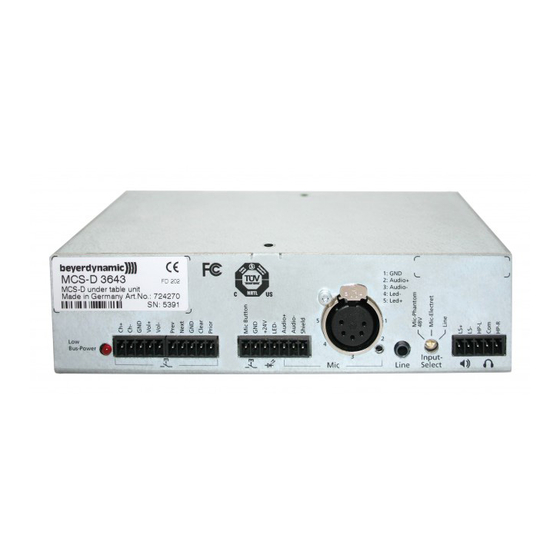

Page 5: Connections, Controls And Indicators
Connector for conference network (Lemo) The MCS-D 3643 is connected to the MCS-D 200 control unit or CA 4146 power supply unit via Lemo sockets. Furthermore, the Lemo sockets are used to connect the MCS-D 3643 with one another or other microphone units. - Page 6 Line: Line level e.g. for laptop 5-pin Phoenix connector You can connect a headphone or loudspeaker to the 5-pin Phoenix connector of the MCS-D 3643 system unit. LS + and LS -: connectors for a loudspeaker HP-L, HP-R and Com : connectors for a headphone...
-
Page 7: Installation
MCS-D 3643 – Installation Installation The MCS-D 3643 system unit provides two mounting brackets for installations under the table. The installation of the system unit can be upright or plane. Upright installation For an upright installation under the table attach the mounting brackets with the supplied screws to the appropriate holes in the housing. - Page 8 MCS-D 3643 – Installation Plane installation For a plane installation under the table attach the mounting brackets with the supplied screws to the appropriate holes in the housing. Refer to the picture below. Make sure to use screws (not supplied) that are suitable for your furniture when installing the system unit under the table.
- Page 9 MCS-D 3643 – Installation Installation with a gooseneck microphone • Provide appropriate holes for the button, microphone and loudspeaker in the tabletop. • Mount the system unit with the mounting brackets and appropriate screws under the tabletop. Make sure that the system unit is even with the table edge.
-
Page 10: Operation
MCS-D 3643 – Operation Operation Please refer also to the MCS-D 200 manual. The operating mode is set via the MCS-D 200 control unit or the iCNS software. The system units are connected with one another and to the MCS-D 200 control unit or CA 4146 power supply unit in a daisy chain via a Lemo connector. -
Page 11: How To Operate The Chairman Microphone Unit
MCS-D 3643 – Operation 5.2 How to operate the chairman microphone unit The chairman can turn on his microphone unit via the microphone button at any time independent of the selected limit. The chairman unit provides two additional buttons to conduct a meeting actively: “Prior” and “Clear”. -
Page 12: Components
MCS-D 3643 – Operation Components MCS-D 3643 System unit with connectors for microphone, loudspeaker, headphone, microphone button, clear button, prior button, language selector and volume . . Order # 724.270 CA 1241 Piezo button without labelling ........Order # 546.658 CA 1241 P Piezo button with “Prior”... - Page 13 MCS-D 3643 – Technical Specifications Loudspeaker output Minimum impedance ... . 8 Ω Frequency response....20 Hz to 20 kHz Headphone output Minimum impedance .
- Page 14 MCS-D 3643 – Technical Specifications 2x5-pin Phoenix terminal strip 7-pin Phoenix terminal strip 5-pin XLR socket 5-pin Phoenix terminal strip Mini jack socket (3.5 mm)
- Page 15 MCS-D 3643 – Technical Specifications How to connect MCS-D 3643 and MPR 211 Dimensions...
-
Page 16: Installation Examples
MCS-D 3643 – Installation Examples 10. Installation examples Installation with external components and MCS-D 200 control unit DT 1 S DT 1 S DT 1 S Classis GM 314 E Classis GM 314 E Classis GM 314 E button button... - Page 17 Theresienstr. 8 | 74072 Heilbronn – Germany Tel. +49 (0) 7131 / 617 - 0 | Fax +49 (0) 7131 / 617 - 204 info@beyerdynamic.de | www.beyerdynamic.com Weitere Vertriebspartner weltweit finden Sie unter www.beyerdynamic.com For further distributors worldwide, please go to www.beyerdynamic.com...
