Beyerdynamic Discussion Control Unit MCS 50 Specifications

MCS 50
D
ISCUSSION
C
ONTROL
F
EATURES
• One microphone line for a maximum of 32 microphone units
• Integrated power supply unit with control for up to 32 microphone units
• Can be expanded to 64 microphone units
• Multifunction display for indication and configuration
• Multifunction buttons for menu control and system configuration without PC
• Master reset button to load default settings
• Service RS 232 interface port on the front for PC system configuration
• Supplied with "MCS-Editor" configuration software
• All inputs and outputs are plug-in type
• RS 232 connection for external operation via PC or media control system

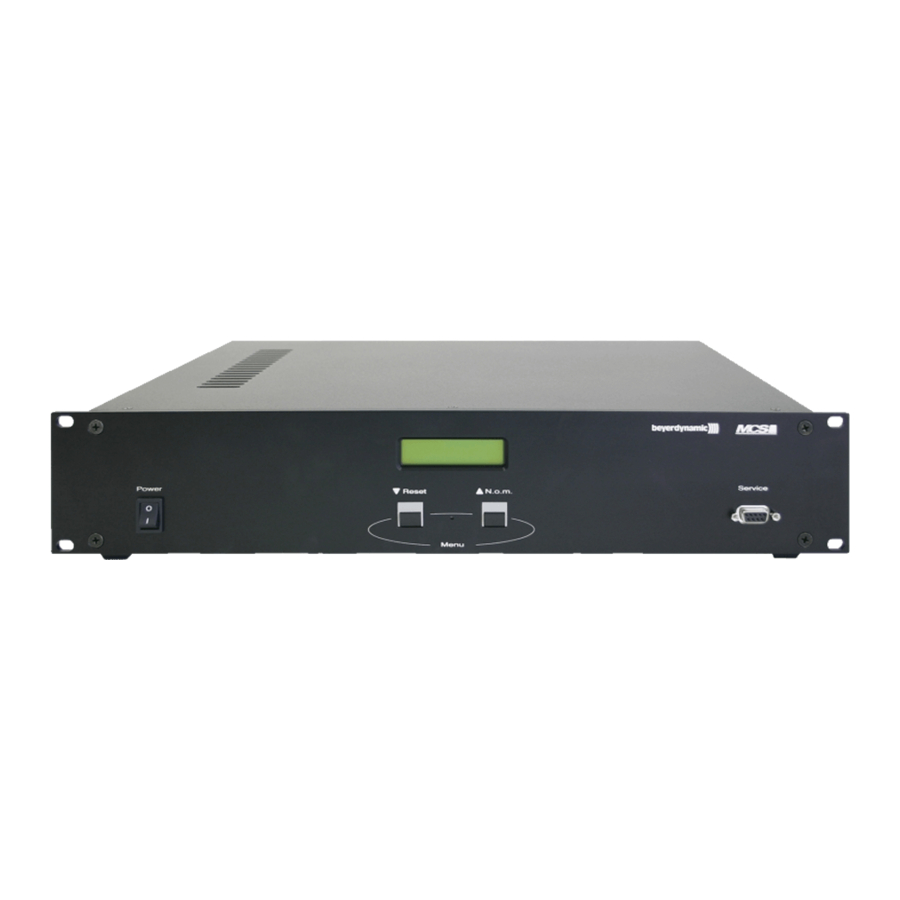

• Control unit in a 2 U-housing, suitable for 19" rack mounting
• MCS Controller Software for Windows
D
ESCRIPTION
• System check of all adjusted parameters
• Status check for error diagnosis
• Equalisation control for adjusting system's audio response
• Audio input for balanced line-level signals such as wireless receiver, mixing consoles, telephone hybrids etc.
• Unbalanced audio input for system extension
• Record output for direct connection to a recording system
• RS 232 interface allows the operation of the discussion system via PC or other available media control systems such
as AMX ® , Crestron ® , Cue
Germany
Theresienstr. 8
D-74072 Heilbronn
Tel. +49 (0 )71 31 / 6 17-0
Fax +49 (0 )71 31 / 617-224
E-mail: info@beyerdynamic.de
Internet: www.beyerdynamic.de
U
NIT
® operating systems available as an option
® etc. to enable complete conference room control.
