Summary of Contents for Beyerdynamic QUINTA

Page 1 QUINTA Kurzanleitung Quick Start Guide Guide de démarrage rapide...
Page 2 Sie das Bedienmodul der Konferenzsoftware (Quinta Controller) gratis dazu erhalten. Registration Please register at www.beyerdynamic.com/quinta/register. We will inform you about software updates and new developments of our Quinta product range. When registering you will be eligible to receive the Conference software control module (Quinta Controller) free of charge. Enregistrement Veuillez vous enregistrer sur www.beyerdynamic.com/quinta/register.
Page 3: Table Of Contents
4.2 Inbetriebnahme ..... . Seite 5. Handsender Quinta TH..... . Seite 5.1 Bedien- und Kontrollelemente.
Page 4: Introduction
Please also refer to the supplied “Safety Information” booklet. Quinta CU and RS Control Units The Quinta RS and Quinta CU (from software version 3.0) control units can be operated in two different modes, they can be selected via the Quinta Software. In the Conference mode all devices (Quinta MU, Quinta TB, Quinta TH) have the functionality of a conference microphone unit, while in the Microphone mode all devices have the functionality of a wireless microphone.
Page 5: How To Operate The System

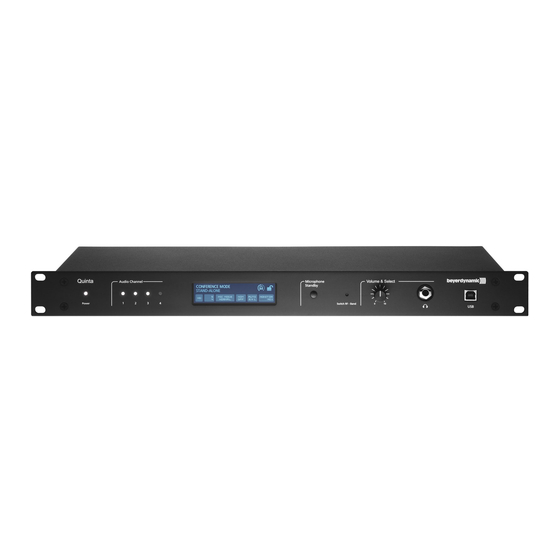

How to Operate the System 2.2.1 Quinta CU Control Unit The Quinta CU control unit is the heart of the system. It is used to control the delegate and chairman microphone units. With one control unit, a maximum of four people can speak simultaneously (e.g.
Page 6: Quinta Rs Control Unit
• At the factory the RF bands 2.4; 5.2 or 5.8 GHz* will be activated (Automatic Mode). This means that the Quinta CU control unit will select a free frequency and if necessary it will select a different free frequency without any interferences. This operating mode is recommended for normal use.
Page 7: Quinta Mu Microphone Units
• When the Quinta RS control unit is turned on for the first time, it is set to the RF band of 2.4 GHz* which has been selected at the factory. Via the Quinta Software you can select the appropriate region where you use the control unit and select the antenna configuration so that the RF bands in the 5.2* or 5.8 GHz* range are available.
Page 8: Controls And Indicators
Power on and operating control LED DC socket for charging the rechargeable batteries of the microphone unit or for DC operation Charging contacts for charging in the CD 2 charger (Quinta MU 23/22/21/MU 23 V/MU 21 V) or CD 3 (Quinta MU 33/31)
Page 9 Quick Start Guide Quinta – Microphone Units Quinta MU 23 Chairman Microphone Unit Quinta MU 23 V Chairman Microphone Unit Quinta MU 22 Double Delegate Microphone Unit Quinta MU 21 Delegate Microphone Unit Quinta MU 21 V Delegate Microphone Unit...
Page 10 Microphone mode: no operative function, unless pressing the button is signalled via the external protocol. This, however, does not affect the normal operation in the microphone mode. Microphone button / Attention: Only with Quinta MU 23 V / MU 21 V this button acts also as “no” voting button Conference mode: programmable function button / Attention: Only with Quinta MU 23 V this button acts also as “abstain”...
Page 11 When the connection to the Quinta CU/RS control unit has been established, the buttons of the microphone unit will illuminate white. • To activate the microphone or to allocate the microphone unit to a free channel of the Quinta CU/RS control unit, press the microphone button once again.
Page 12 Charging With the Quinta CD 2 charger integrated in the Quinta CC 2 transport case, it is possible to charge a maximum of 10 Quinta MU 23/22/21/MU 23 V/MU 21 V microphone units. With the Quinta CD 3 charger integrated in the Quinta CC 3 transport case, it is possible to charge a maximum of 12 Quinta MU 33/31 microphone units.
Page 13: Controls And Indicators
When the connection to the Quinta CU/RS control unit has been established, the microphone button will illuminate white in the conference mode to display the ready for operation status and in the microphone mode it will illuminate green.
Page 14 2 seconds, the boundary microphone will be switched off. • You can switch off all the active Quinta TB microphones within the range of the Quinta CU/RS control unit when you press the standby button of the control unit for more than 3 seconds.
Page 15: Controls And Indicators
Quick Start Guide Quinta – Handheld Transmitter Quinta TH Handheld Transmitter Controls and Indicators Thread to attach the microphone head Antenna Microphone button with braille Battery compartment inscription Battery indicator Battery compartment cover Charging contacts...
Page 16: How To Operate The Handheld Transmitter
Quick Start Guide Quinta – Handheld Transmitter How to Operate the Handheld Transmitter How to Attach the Microphone Head For the Quinta TH handheld transmitter there are different condenser and dynamic microphone capsules available. • Put the requested microphone head onto the thread of the handheld transmitter and tighten it clockwise.
Page 17 Quick Start Guide Quinta – Handheld Transmitter • From time to time you should clean the battery and charging contacts of the Quinta TH transmitter with a soft lint-free cloth moistened with white spirit or alcohol. Please remove the batteries from the battery compartment before cleaning.
Page 18 GmbH & Co. KG . Theresienstraße 8 . 74072 Heilbronn . Germany Tel. +49 7131 617-0 . Fax +49 7131 617-204 . info@beyerdynamic.de Weitere Vertriebspartner weltweit ﬁnden Sie im Internet unter www.beyerdynamic.com Abbildungen nicht vertragsbindend. Änderungen vorbehalten. For further distributors worldwide, please go to www.beyerdynamic.com Non-contractual illustrations.
