Beyerdynamic MCS 1021 Manual

M I C R O P H O N E C O N F E R E N C E S Y S T E M

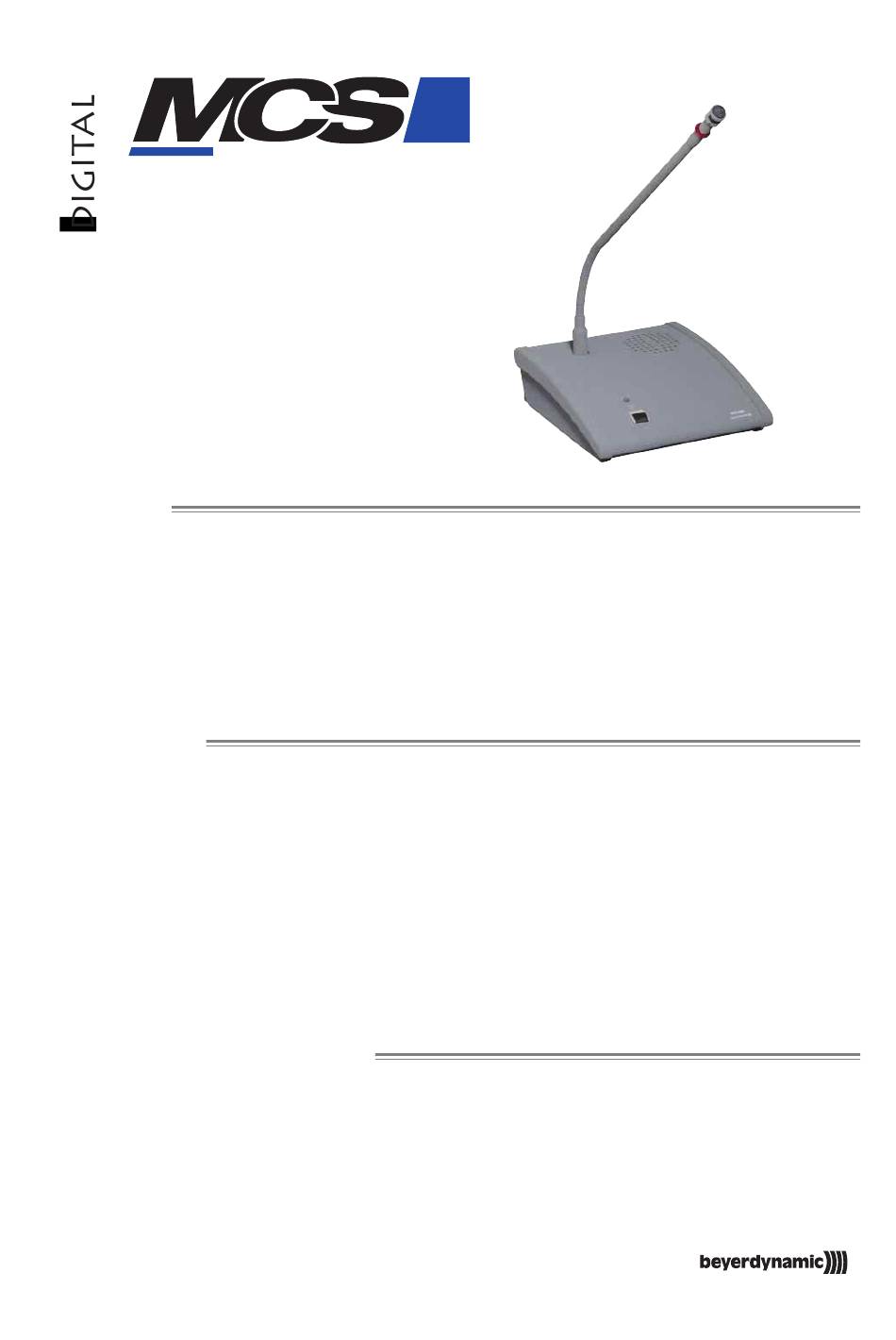

MCS 1021
D
ELEGATE
M
ICROPHONE
U
NIT WITH
L
OUDSPEAKER
Order # 458.961
F
EATURES
• Modern design metal housing with non-glare, scratch-resistant Nextel
• Ring of the gooseneck illuminates to indicate the Ready-to-Talk status (including pop screen)
• Microphone button to switch the microphone unit on or off or for Request-to-Talk
• Dual colour LED to indicate the microphone on/request to talk status
(red: Request-to-Talk is acknowledged; green: microphone unit is switched on and ready to talk)
• Integrated loudspeaker with voice equalisation
• Volume control to adjust the loudspeaker's volume
• DIP switches for addressing and programming the microphone unit
• 14-pin Renk sockets to connect the system connecting cable
• Mono 3.5 mm mini-jack output for the connection of recorders, dictating machines etc.
• High-quality gooseneck microphone
D
ESCRIPTION

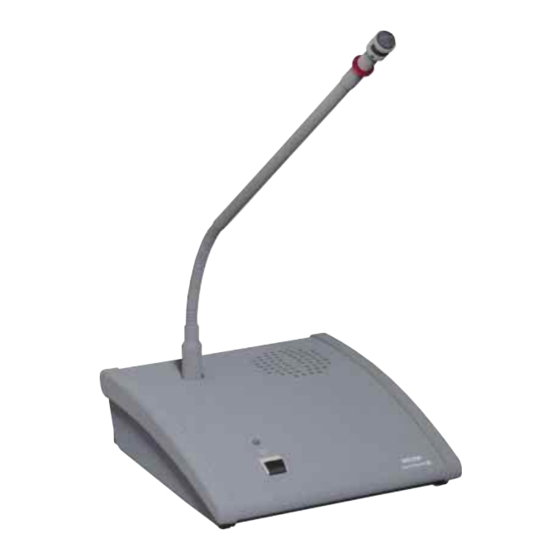

The MCS 1021 delegate microphone unit consists of one microphone button in the housing with which the participant can switch on
and off his microphone. An illuminated red ring below the microphone capsule and a green LED in the base indicate the ready-to-
talk status of the microphone.
In the Request-to-Talk operation mode of the discussion system the microphone button serves for the request to talk. The red LED in
the housing indicates the request to talk has been acknowledged. When the microphone is activated by the operator at the PC or
media control system or by the microphone unit with "Next" function, the colour of the LED changes to green. If the microphone
button is pressed once again, the delegate can clear the request-to-talk.
The integrated loudspeaker has been equalised for optimum speech intelligibility. If the participant switches on the microphone, the
loudspeaker is automatically switched off. Depending on the system configuration it is possible that the loudspeakers of other,
pre-defined microphone units, e.g. neighbouring microphone units, are also switched off.
The design of the housing offers good physical isolation of the microphone unit against mechanical coupling.
The MCS 1021 delegate microphone unit can be programmed to a chairman's microphone unit. The microphone button has the
priority function of the chairman microphone unit. Depending on the programming the participant can switch on his microphone
regardless the NOM, clear or mute all activated microphone units.
If the "Automatic option" is fitted, the microphone can be switched on and off via voice control. Then each microphone is
operated independently upon the maximum number of open microphones (NOM).
A ' S
RCHITECT S PECIFICATIONS
Digitally controlled delegate microphone unit with one button for switching on or off or for request-to-talk. Dual-colour LED: green
indication for microphone on and red indication for Request-to-Talk. Condenser gooseneck microphone (back electret) with cardioid
polar pattern. Total length 400 mm and diameter 8 mm. Illuminated ring below the mic capsule to indicate the Ready-to-Talk status.
14-pin Renk sockets for system connecting cable. Mini-jack for the connection of recorders. Integral loudspeaker with frequency
equalisation and volume control. Option for voice control available. 6 DIP-switches for button programming and microphone address.
Metal housing with charcoal-grey, non-glare and scratch-resistant Nextel
Manufacturer: beyerdynamic GmbH, Germany
Type: MCS 1021
® finish
® finish. Dimensions (WxHf/HrxD) 178x15/52x193 mm.
