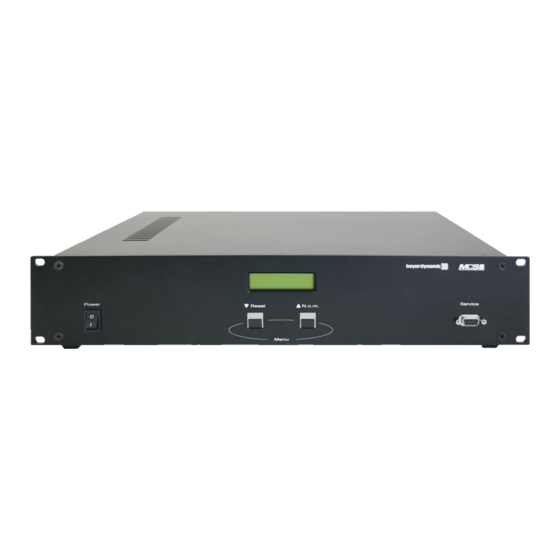

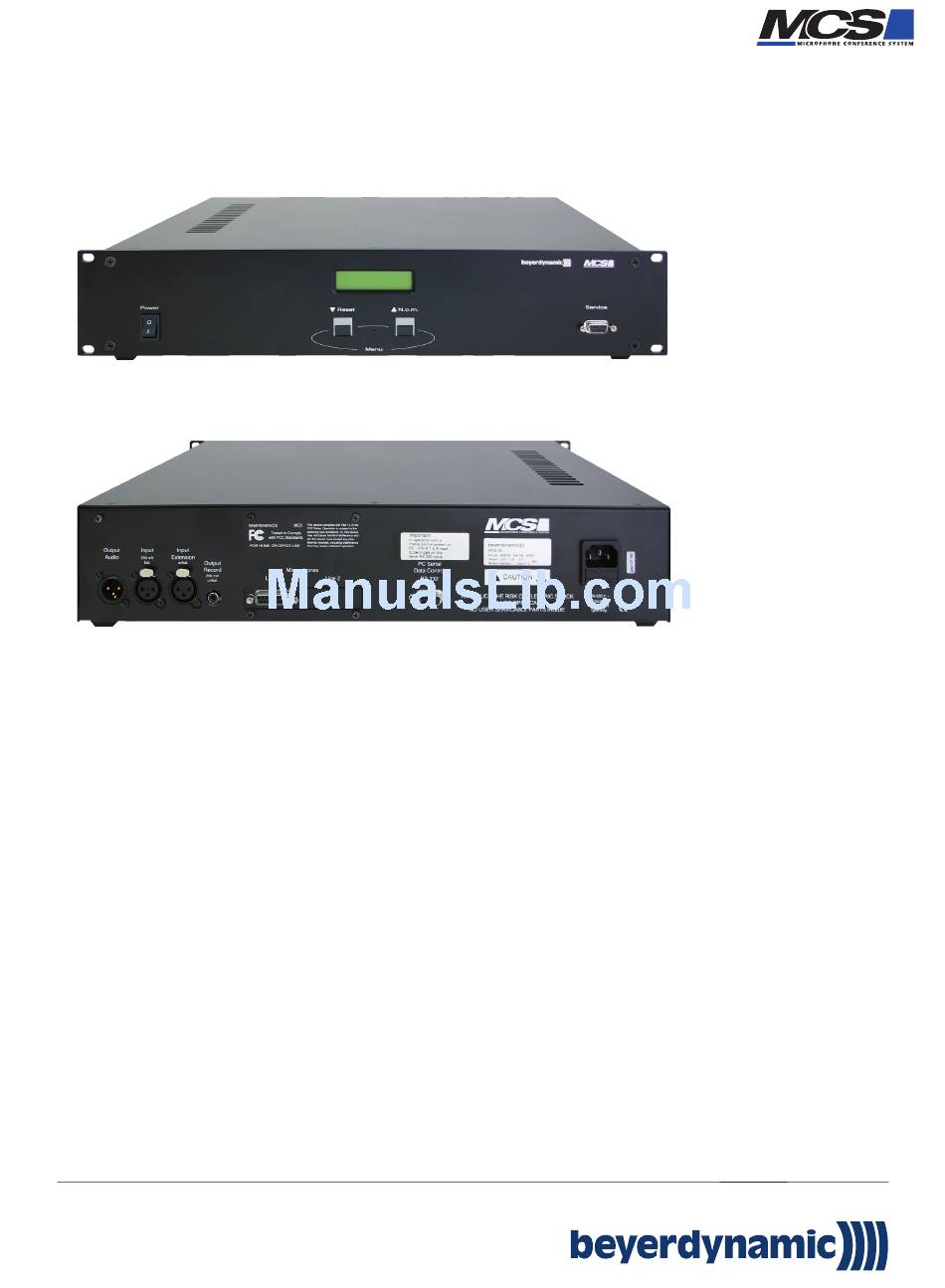

MCS 50
Discussion
Control Unit
F
EATURES
• One microphone line for a maximum of 32 microphone units
• Integrated power supply unit with control for up to
32 microphone units
• Can be expanded to 64 microphone units (with MCS 50-64)
• Multifunction display for indication and configuration
• Multifunction buttons for menu control and system
configuration without PC
• Master reset button to load default settings
• Service RS 232 interface port on the front for PC system
configuration
• Supplied with "MCS-Editor" configuration software
• Supplied with "MCS Controller" Software for Windows
operating systems
• All inputs and outputs are plug-in type
• RS 232 connection for external operation via PC or media
control system
• Control unit in a 2 U-housing, suitable for 19" rack mounting
1 of 7
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 224
info@beyerdynamic.de | www.beyerdynamic.de
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E3/MCS 50 (08.09)
V
ERSIONS
MCS 50-32 (D) Control unit for
MCS 50-32 (E) same as above, but
MCS 50-32 (F) same as above, but
MCS 50-64 (D) Control unit for
MCS 50-64 (E) same as above, but
®
MCS 50-64 (F) same as above, but
32 microphone units,
display language German . . . . Order # 459.275
display language English . . . . . Order # 486.140
display language French . . . . . Order # 486.159
64 microphone units,
display language German . . . . Order # 463.388
display language English . . . . . Order # 486.167
display language French . . . . . Order # 486.175
