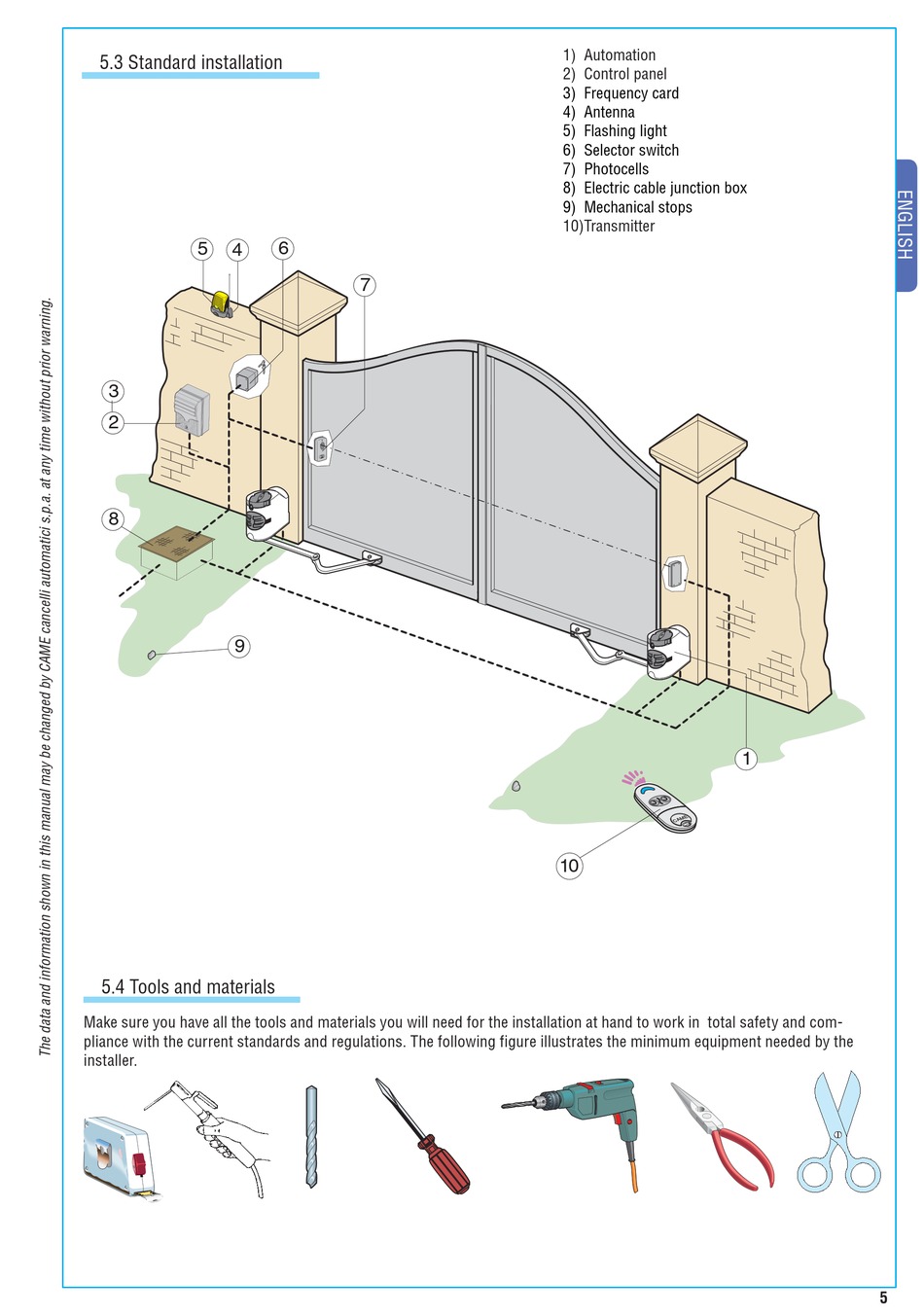

5.3 Standard installation
5
4
3
2
8
9
5.4 Tools and materials
Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and com-
pliance with the current standards and regulations. The following figure illustrates the minimum equipment needed by the
installer.
6
7
1) Automation
2) Control panel
3) Frequency card
4) Antenna
5) Flashing light
6) Selector switch
7) Photocells
8) Electric cable junction box
9) Mechanical stops
10)Transmitter
10
1
5
