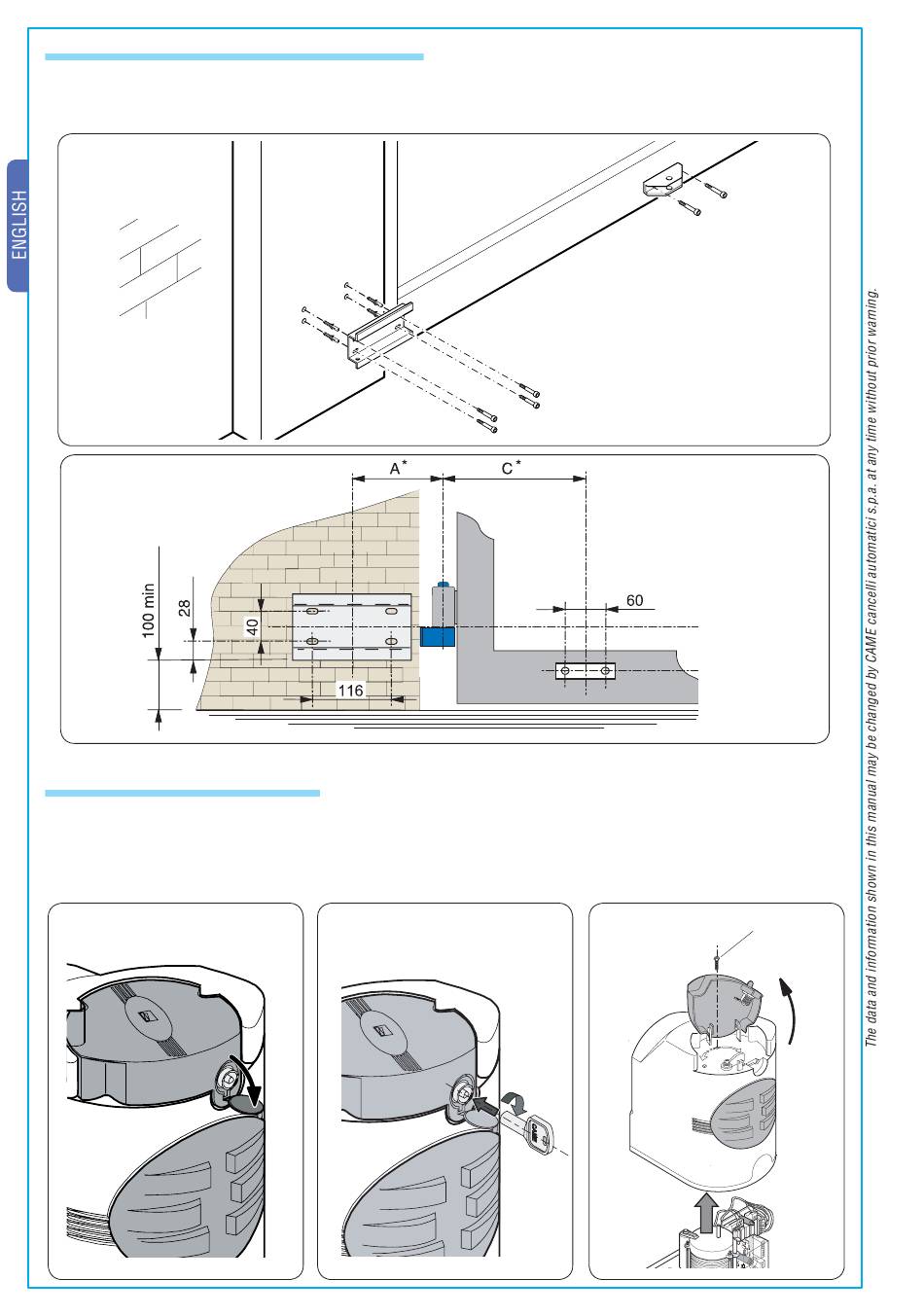

5.5 Applying the base plate and A bracket
- Secure the base plate to the pillar using M8 screws and ø14 mould inserts making sure the minimum distance of 100 mm is
from the ground is met.
- Secure the A bracket (using M6 screws or by welding) to the gate leaf making sure the C 68mm distance measurements and
are met.

5.6 Installing the gearmotor

Open the lock cover (1).
Insert the key, push it down and turn it clockwise (2).
Lift the cover, loosen the Ø 3,9x13 screw and remove the cover from the gearmotor assembly (3).
(1)
(1)
6
Base plate
ø 14
(2)
Bracket "A"
M8
*
Vedi "Quote base", pag. 3
(3)
M6
Ø3,9x13
