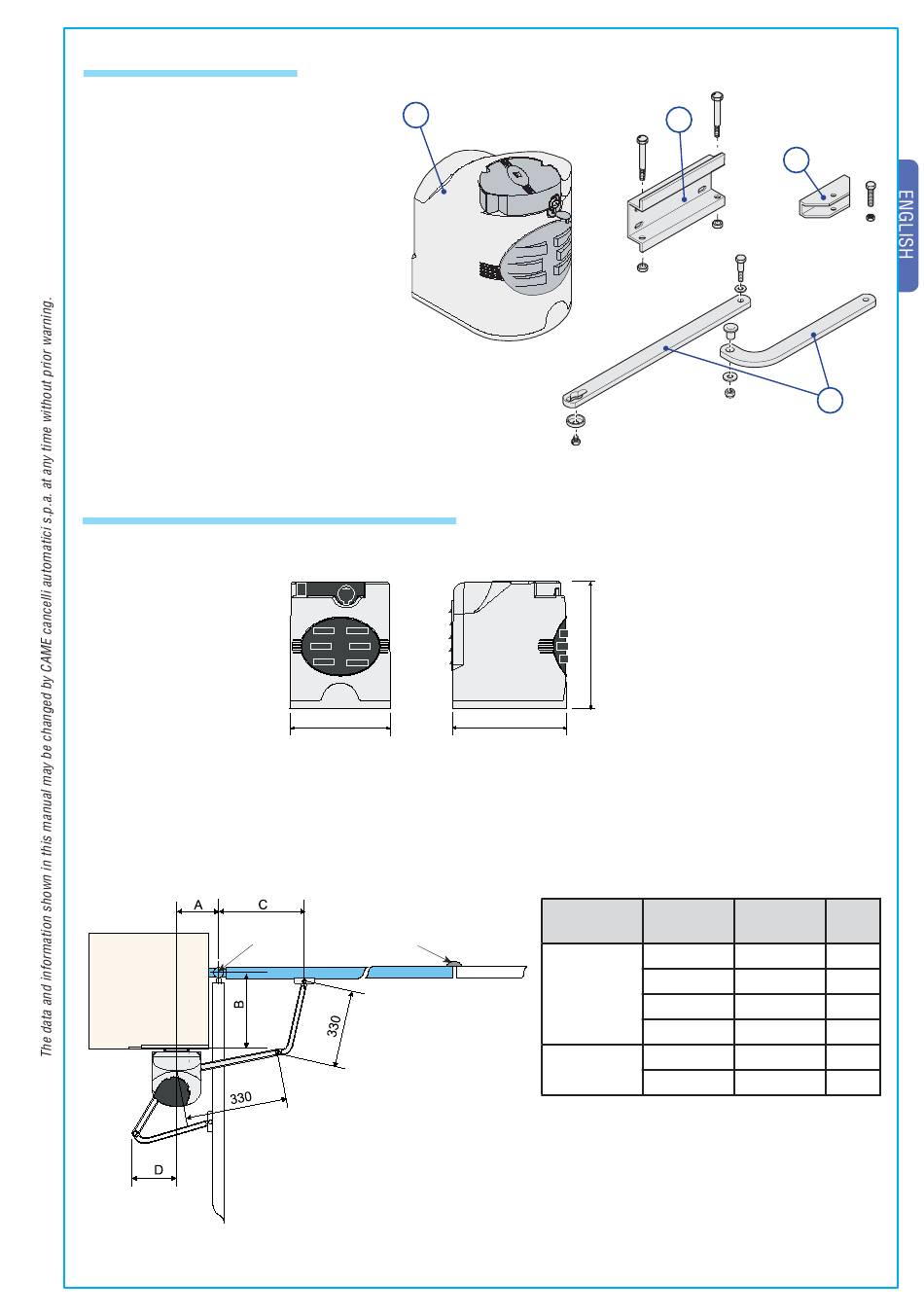

4.3 Description of parts
A1824
1) Operator
2) Pillar bracket
3) Articulated transmission arm
4) Gate bracket
4.4
Dimensions and basic measurements
Hinge
1
194
Gate stop
D = 240 mm. max
Opened to 90°
245
218
Opening
angle
90°
110°
2
4
3
A
B
140÷205
0÷50
140÷195
75÷100
140÷185
125÷150
140÷175
175÷200
180÷210
0
200÷205
50
C
430
430
400
400
430
430
3
