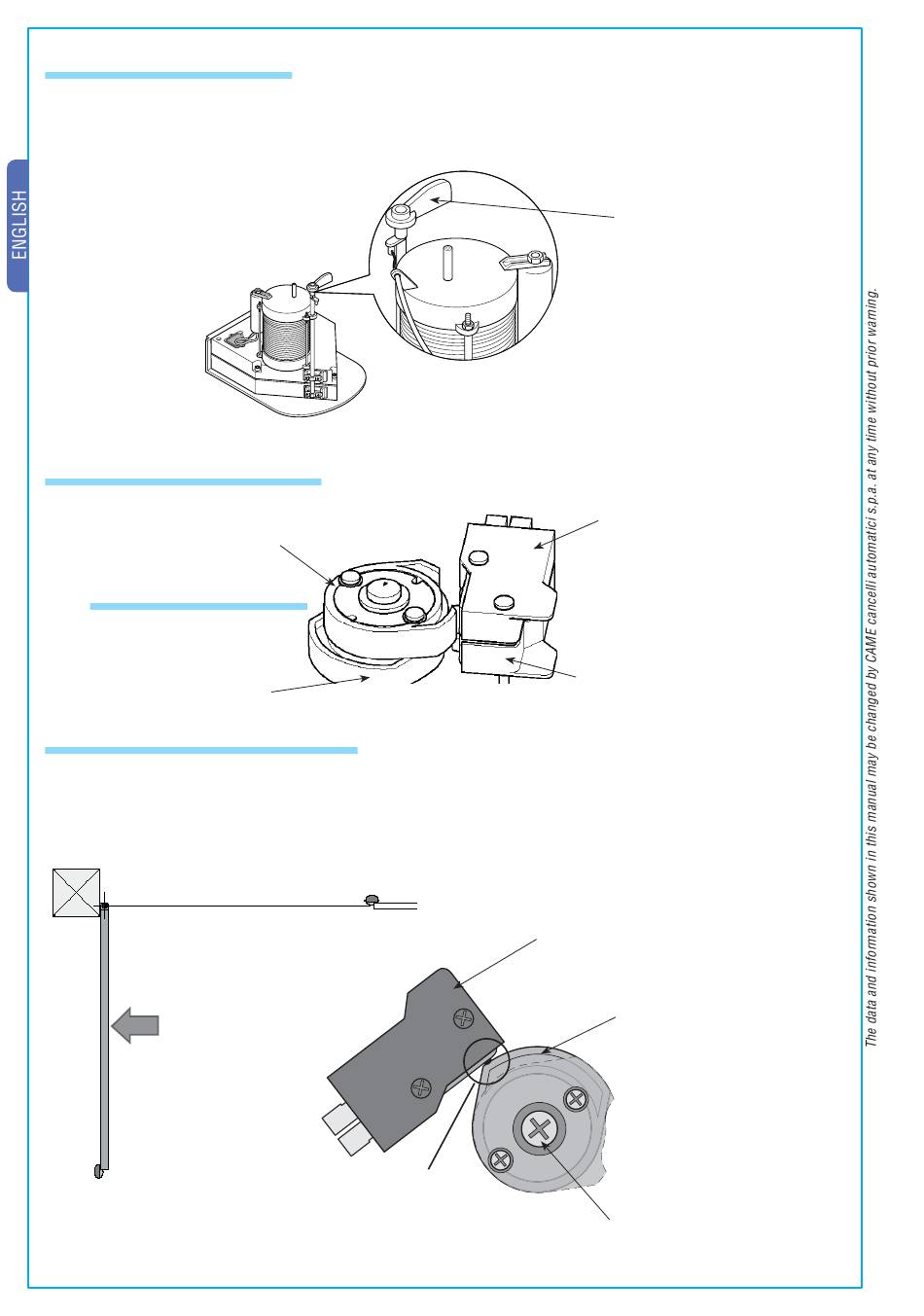

5.8 Gearmotor release
Before making any adjustments to the microswitches, you must release the gearmotor by turning the apposite handle.
5.9
Adjusting microswitches
Upper cam
Microswitch assembly
Lower cam
5.9.1
Adjusting the opening stop
1) Release the gearmotor and manually lead the gate to its fullest opening position (max. 110°).
2) Turn the lower cam until the switch is activated.
3) Tighten the central screw.
8
Microswitch
Switch
Handle
Closing-speed brake microswitch
Opening-speed brake microswitch
Lower cam
Lower cam securing screw
