SediGraph III 5120 Installation

Equipment Description

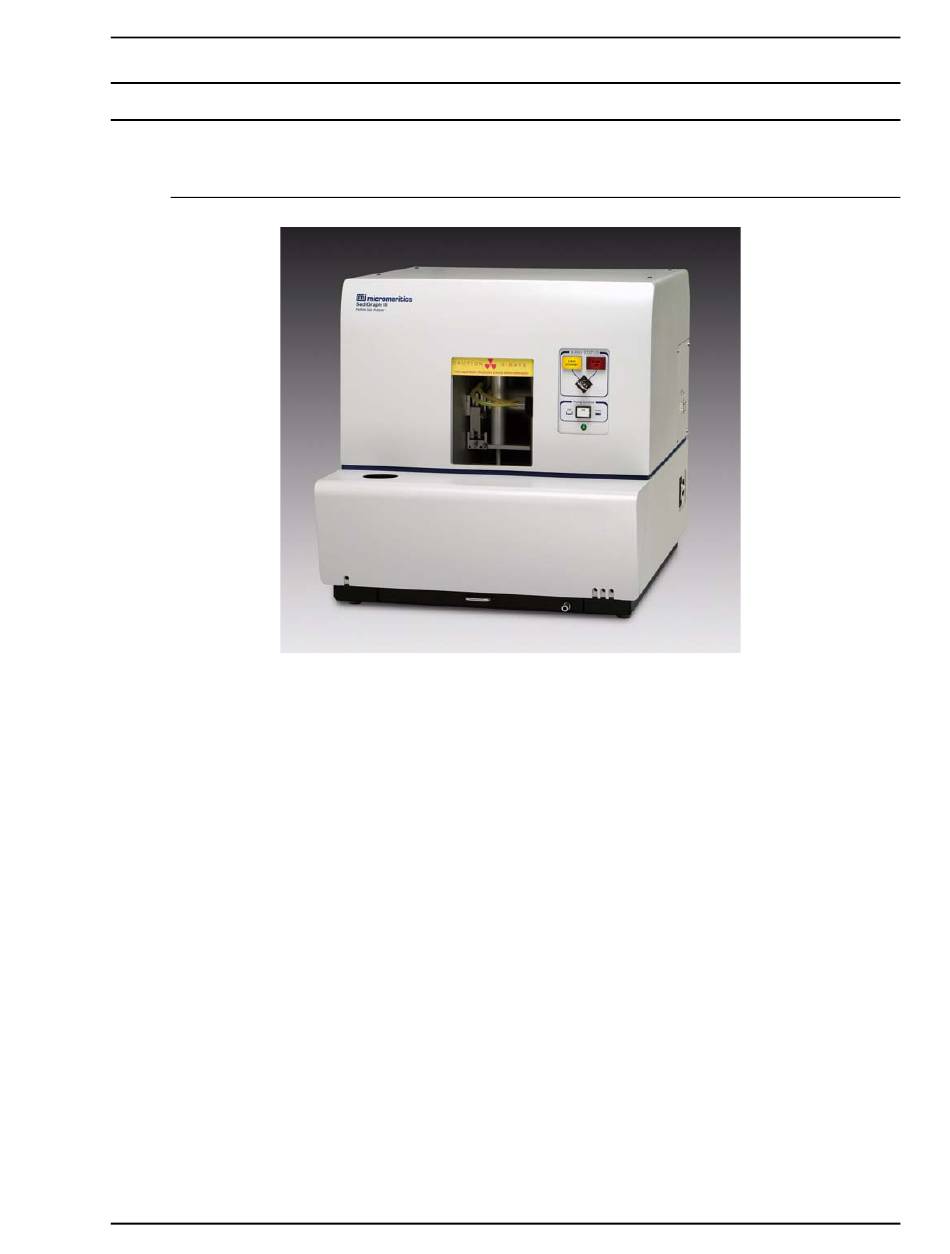

SediGraph III 5120

The SediGraph III 5120 Particle Size Analysis System consists of up to two particle size
analyzers, and a multi-function computer. The particle size analyzer is mounted on adjustable
feet and contains a level indicator so that accuracy of the analysis process is maintained. It is
designed for completely automatic operation; however, a sliding transparent door on the front
panel provides convenient observation of, and access to, the temperature-controlled analysis
compartment. The SediGraph contains an internal fixed-position X-ray source, detector
assembly, and a vertical cell movement assembly. It incorporates a complete system for
circulation of sedimentation liquid and particle sample mixture between the cell, the external
mixing chamber, an external rinse liquid container, and an external waste container. It also
contains a detachable magnetic stirring assembly.
