Micromeritics SediGraph III 5120 Installation Instructions And Checklist page 50

Installing Sample Transfer Tubing
8. Attach the end of another segment of tubing to the Discharge Tube connector on the front
of the MasterTech.
If the MasterTech is located on top of the SediGraph, use the longer segment of
tubing (P/N 052-32802-00).
9. Thread the other end of the tubing through the hole in the analyzer lower front panel.

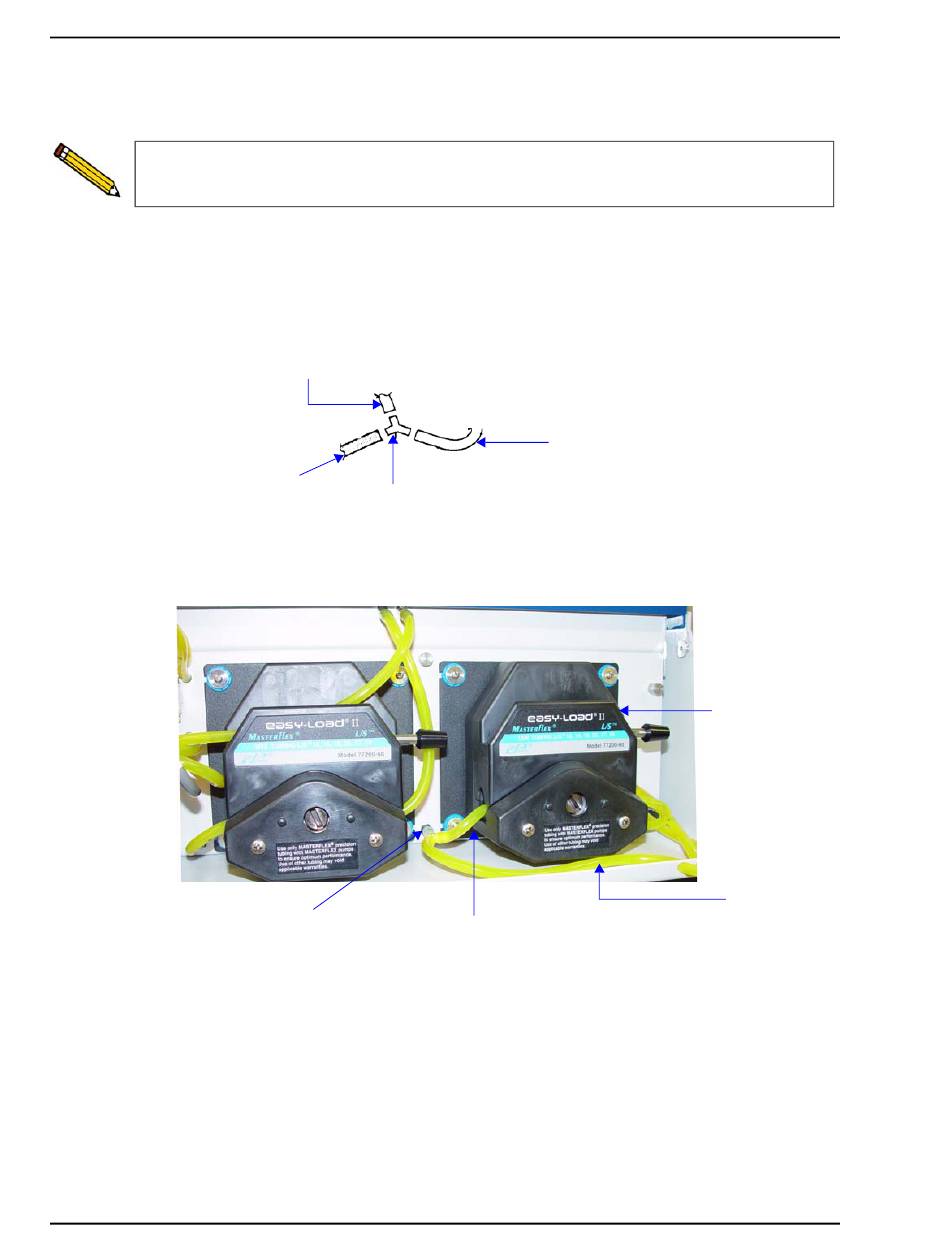

10. Attach tubing to the Y-connector as shown below.
MasterTech tubing
11. Attach the tubing from the Y-connector to the rigid tubing connector on the analyzer.
12. Re-install the pump module cover.
13. Continue with the SediGraph installation ("Verifying Operation" on page 19).
46
Tubing Segment
Tubing segment cut
cut in step 7 -
in Step 7 - connects
connects to rigid
to rigid tubing
tubing connector
connector
MasterT e ch
Tubing
Y-Connector
Y-connector
Rigid Tubing
Connector Tubing (F)
Mixing Pump Tubing (F)
Mixing pump tubing
Mixing Pump
SediGraph III 5120 Installation
Mixing pump
MasterTech
tubing
Mar 2010
