SediGraph III 5120 Installation

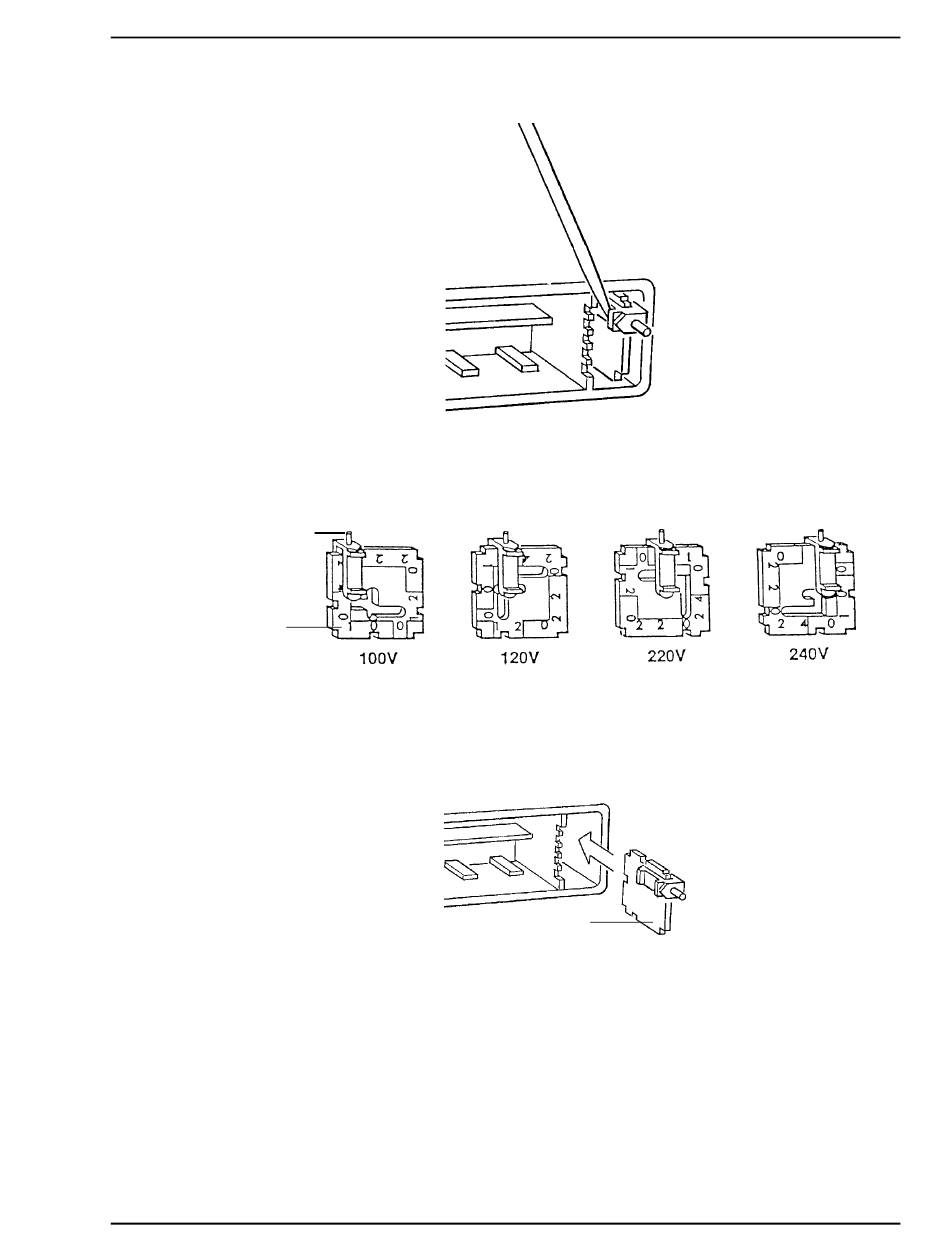

3. Pull the voltage selector card straight out of the power connector housing..
4. Orient the voltage selector card so that the desired voltage is indicated at the bottom.
Orient the indicator pin so that it points upward as shown in the following illustration.
Indicator Pin
Voltage
5. Insert the voltage selector card into the power connector housing with the edge containing
the desired voltage first and with the printed side facing the power ON/OFF switch.
6. Fuse the input power line according to local safety practices. The input power connector
can be used with either a single-fuse arrangement or a double-fuse arrangement, as shown
in the following illustration.
Mar 2010
Printed Side
Selecting the Voltage
