SediGraph III 5120 Installation

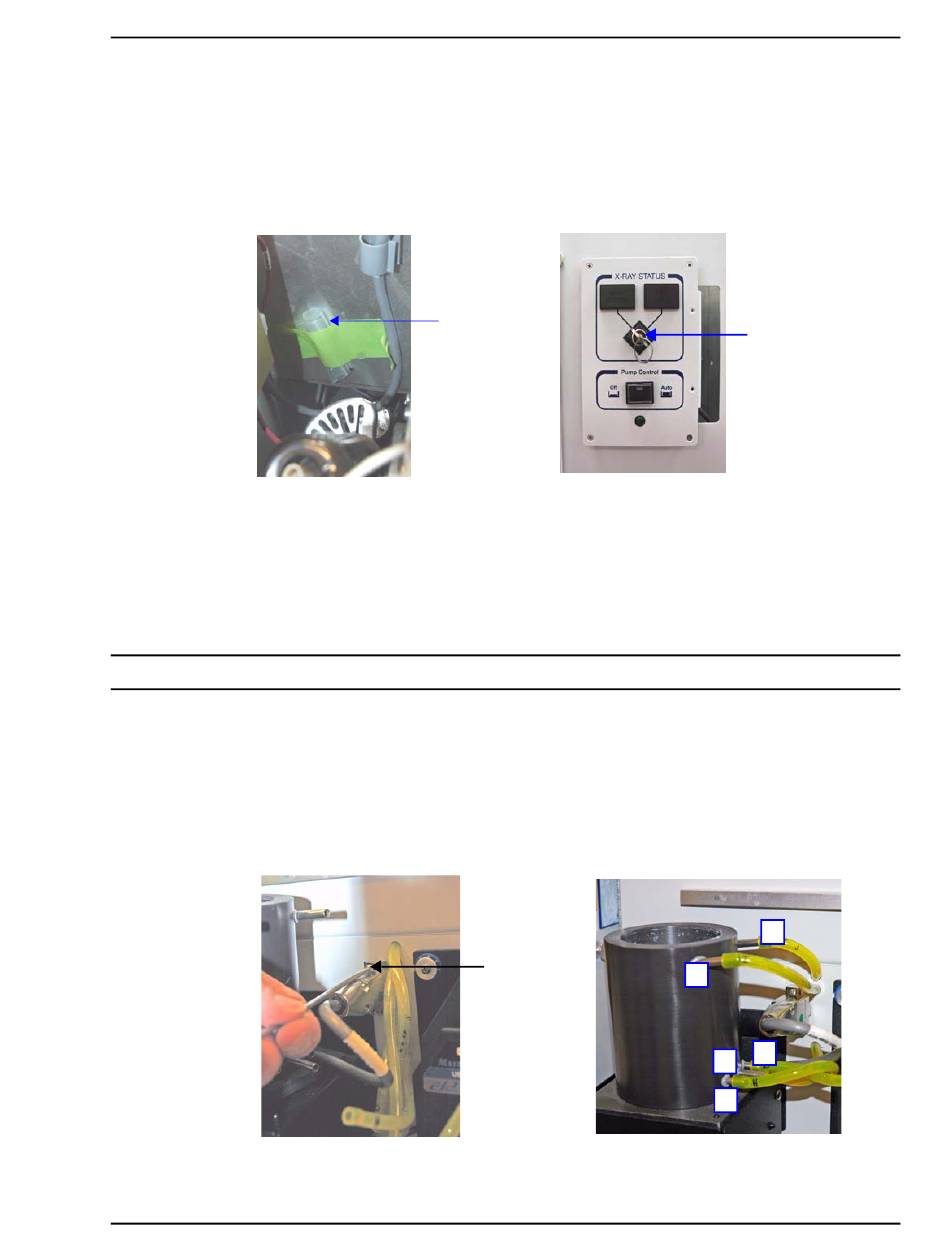

10. Insert the X-ray key:
a. The key is taped to the panel to the left of the high voltage supply. Remove the tape.
b. Remove the key from the plastic bag and place the key in the X-ray switch
c. Turn the key to the left (Standby position).
11. Replace both of the X-ray shields.
12. Replace the top cover.
13. Replace the fluid module cover.

Attaching Tubes and Cables

1. Attach the mixing chamber:
a. Place the mixing chamber on its stand, then plug the electrical cable into the connector
on the analyzer and tighten the screws.
b. Attach the tubing to the mixing chamber as shown below. Make sure the tubing is
securely fastened at each port.
Mar 2010
X-ray Key
a
Mixing
chamber
plug
a
Attaching Tubes and Cables
Key in Standby
position
b
J
I
D
G
H
b
9
