Removing Packing Material From the Unit

Appendix A: MasterTech Installation

Removing Packing Material From the Unit
After removing the MasterTech from the shipping carton, remove all foam packing material
from the unit before proceeding with installation.

Selecting the Voltage

The MasterTech 052 leaves the factory set for 120 VAC and with the line fuse removed. The
correct setting of the universal power entrance must be checked and the appropriate fuse
installed before the MasterTech can be operated. The MasterTech is designed to operate with
either 100, 120, 220 or 240 VAC at 50 or 60 Hz. Voltage selection and fusing are made at the
power connector which is located on the rear panel of the unit.
The power cord should be disconnected from the MasterTech before removing the
cover from the power input connector. Failure to disconnect the power cord could
result in electrical shock.
1. Make sure the power cord is disconnected from the MasterTech.

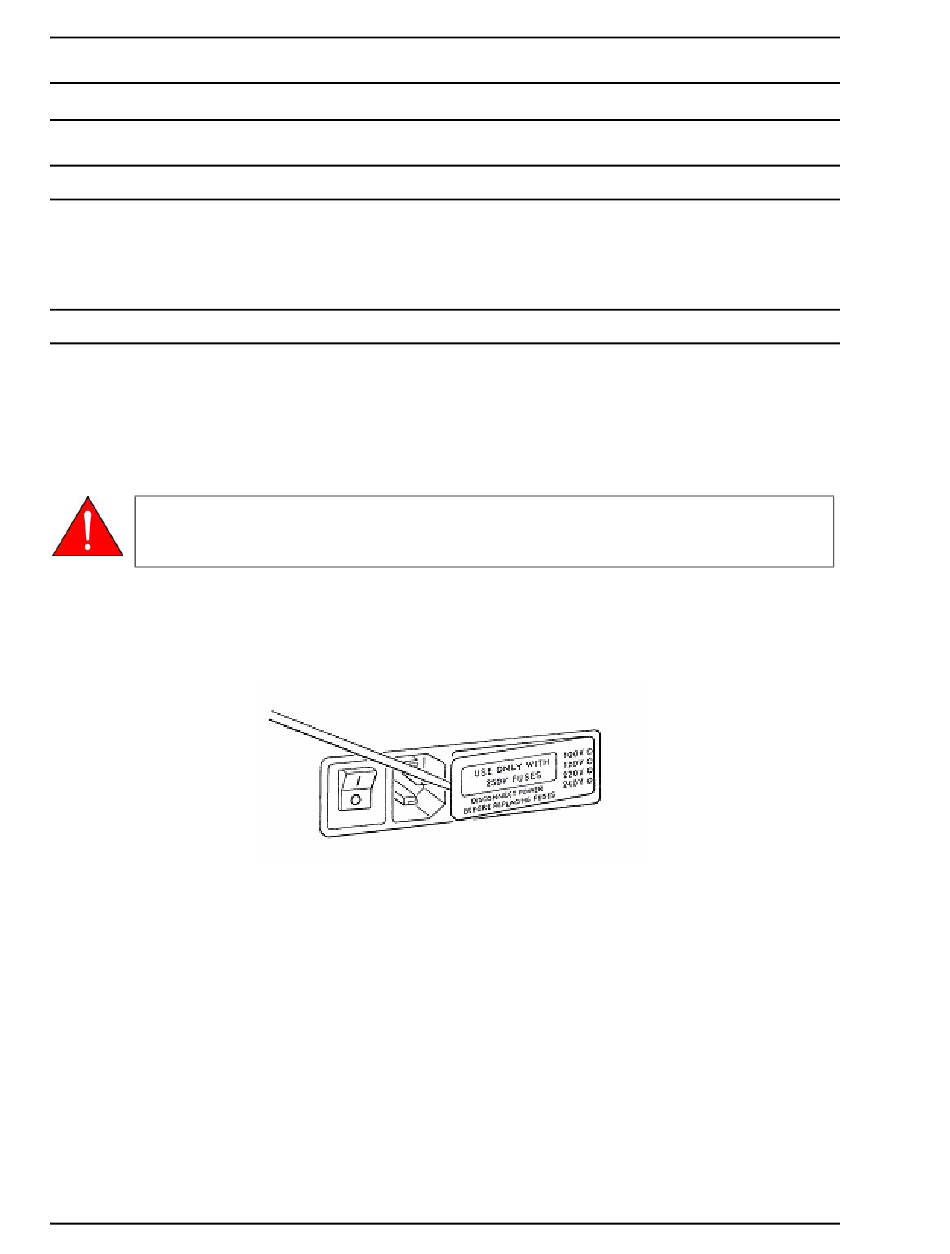

2. Using a pointed object, remove the fuse block and cover assembly from the power
connector at the rear of the MasterTech.
