1:\

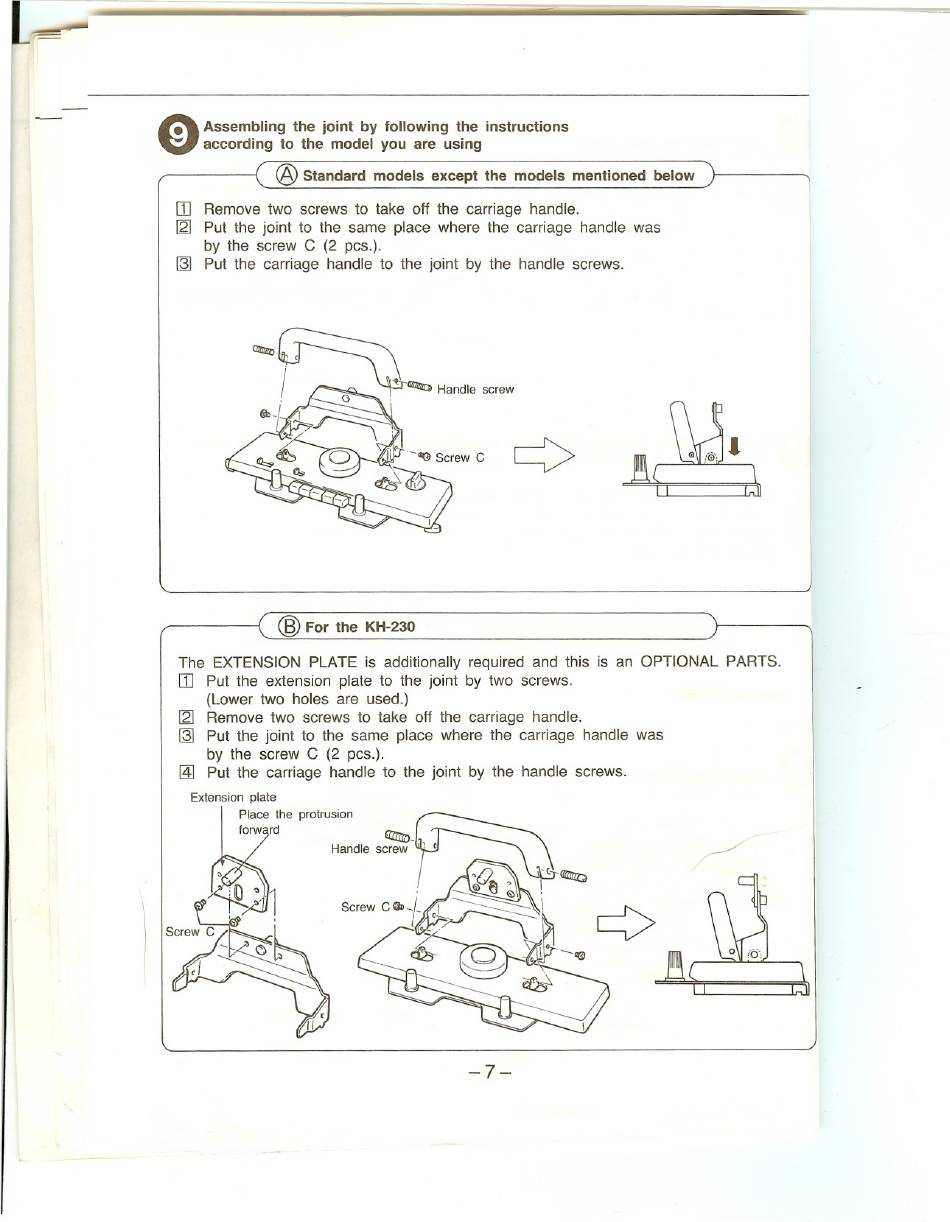

Assembling the joint by following the instructions
'f;I
according to the model you are using
@
Standard models except the models mentioned below
OJ
Remove two screws to take off the carriage handle.
[2] Put the joint to the same place where the carriage handle was
by the screw C (2 pes.).
[3] Put the carriage handle to the joint by the handle screws.
®
For the KH-230
The EXTENSION PLATE is additionally required and this is an OPTIONAL PARTS.
OJ
Put the extension plate to the joint by two screws.
(Lower two holes are used.)
[2] Remove two screws to take off the carriage handle.
[3] Put the joint to the same place where the carriage handle was
by the screw C (2 pes.).
[4J
Put the carriage handle to the joint by the handle screws.
Extension plate
Place the protrusion
forward ~_
Handle screw
IIn
c,
-7-
