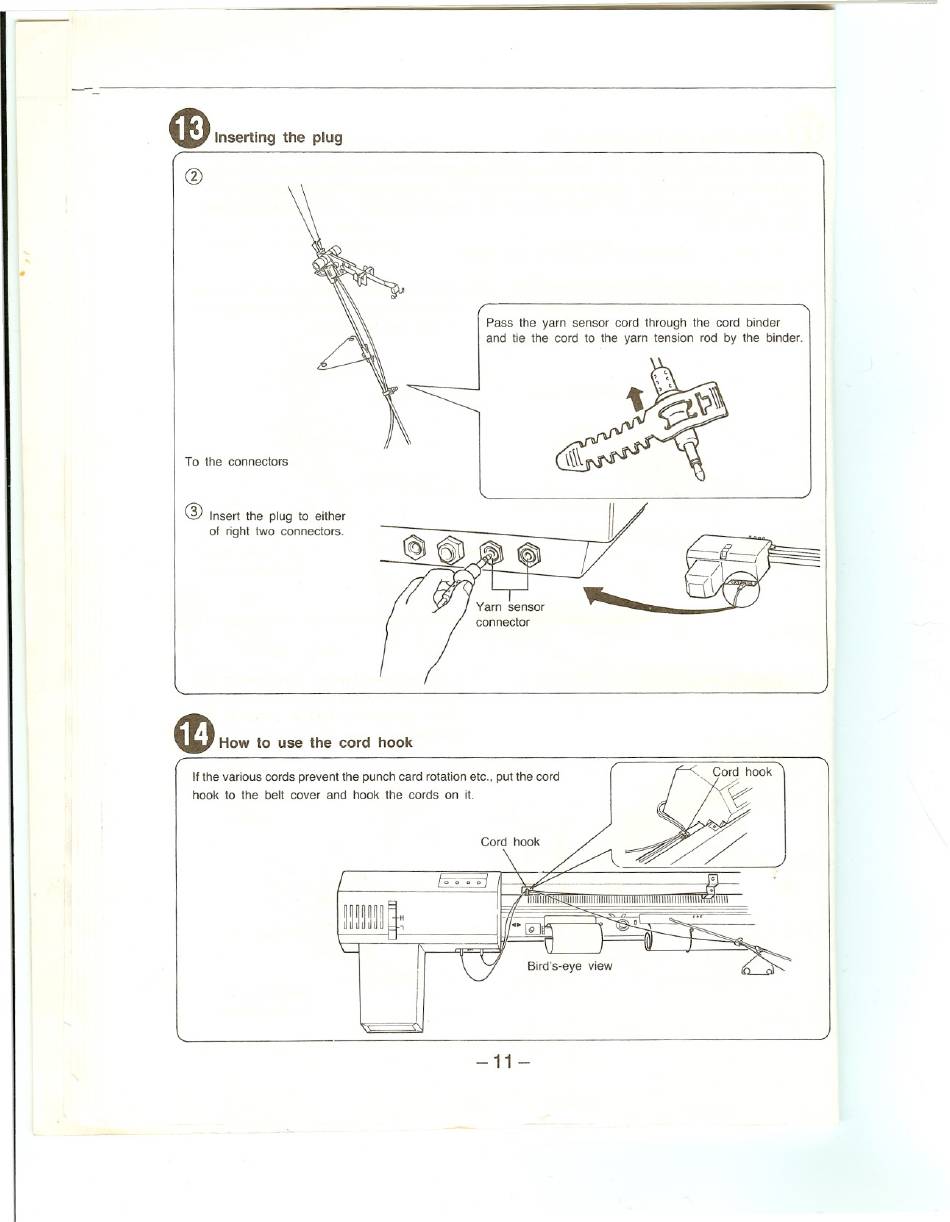

Inserting the plug

To the connectors

Pass the yarn sensor cord through the cord binder

and tie the cord to the yarn tension rod by the binder.

Insert the plug to either

of right two connectors.

How to use the cord hook

If the various cords prevent the punch card rotation etc., put the cord

hook to the belt cover and hook the cords on it.

mm~~

)

I I

-11 -
