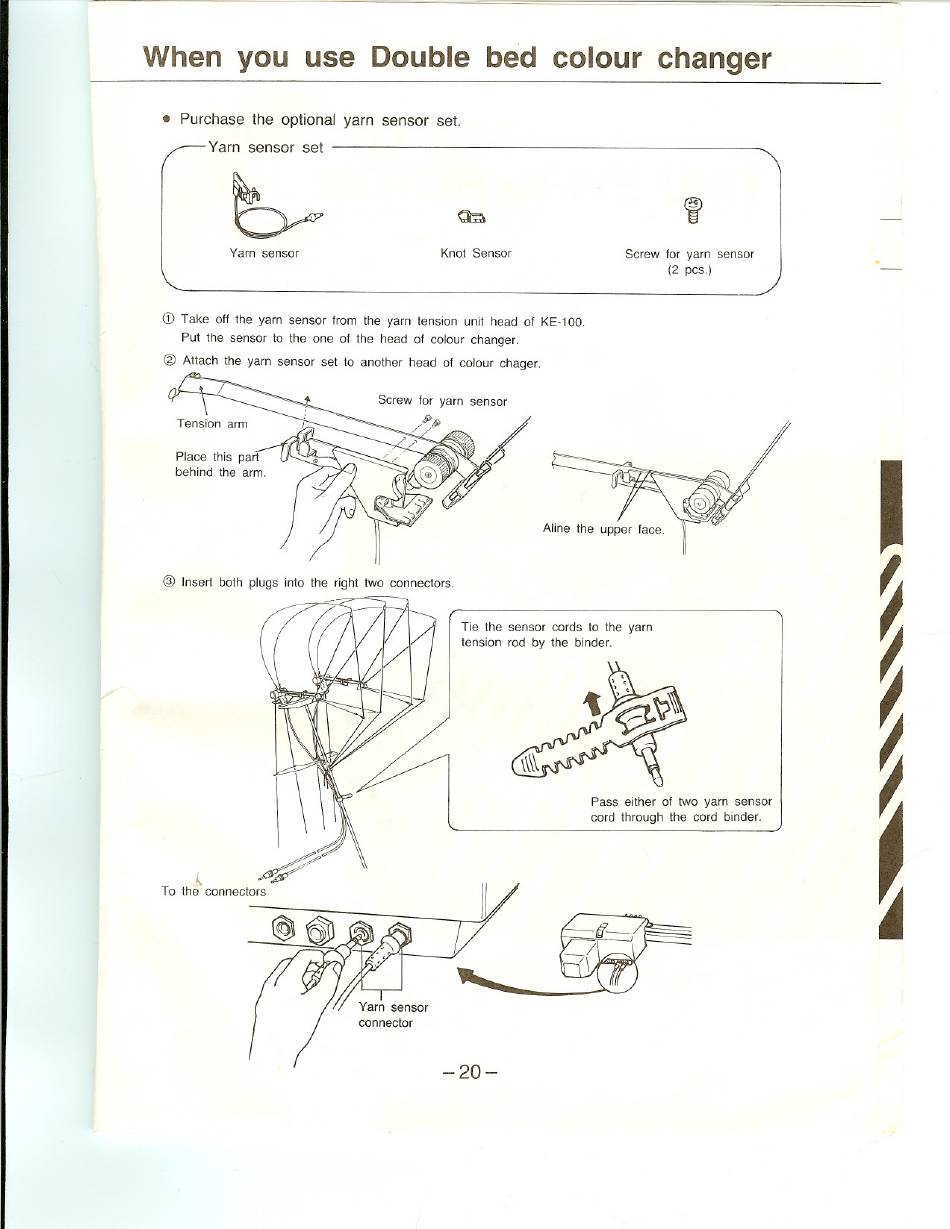

When you use Double bed colour changer
• Purchase the optional yarn sensor set.
Yarn sensor set
Yarn sensor Knot Sensor
Screw for yarn sensor
(2 pes.)
CD
Take off the yarn sensor from the yarn tension unit head of KE-100.
Put the sensor to the one of the head of colour changer.
@
Attach the yarn sensor set to another head of colour chager.
Pass either of two yarn sensor
cord through the cord binder.
Tie the sensor cords to the yarn
tension rod by the binder.
-20-
Screw for yarn sensor
~-~ ii'",
~~----./
/
,,~
Tension arm
Place this part
behind the arm.
@
Insert both plugs into the right two connectors.
~
To the connectors
