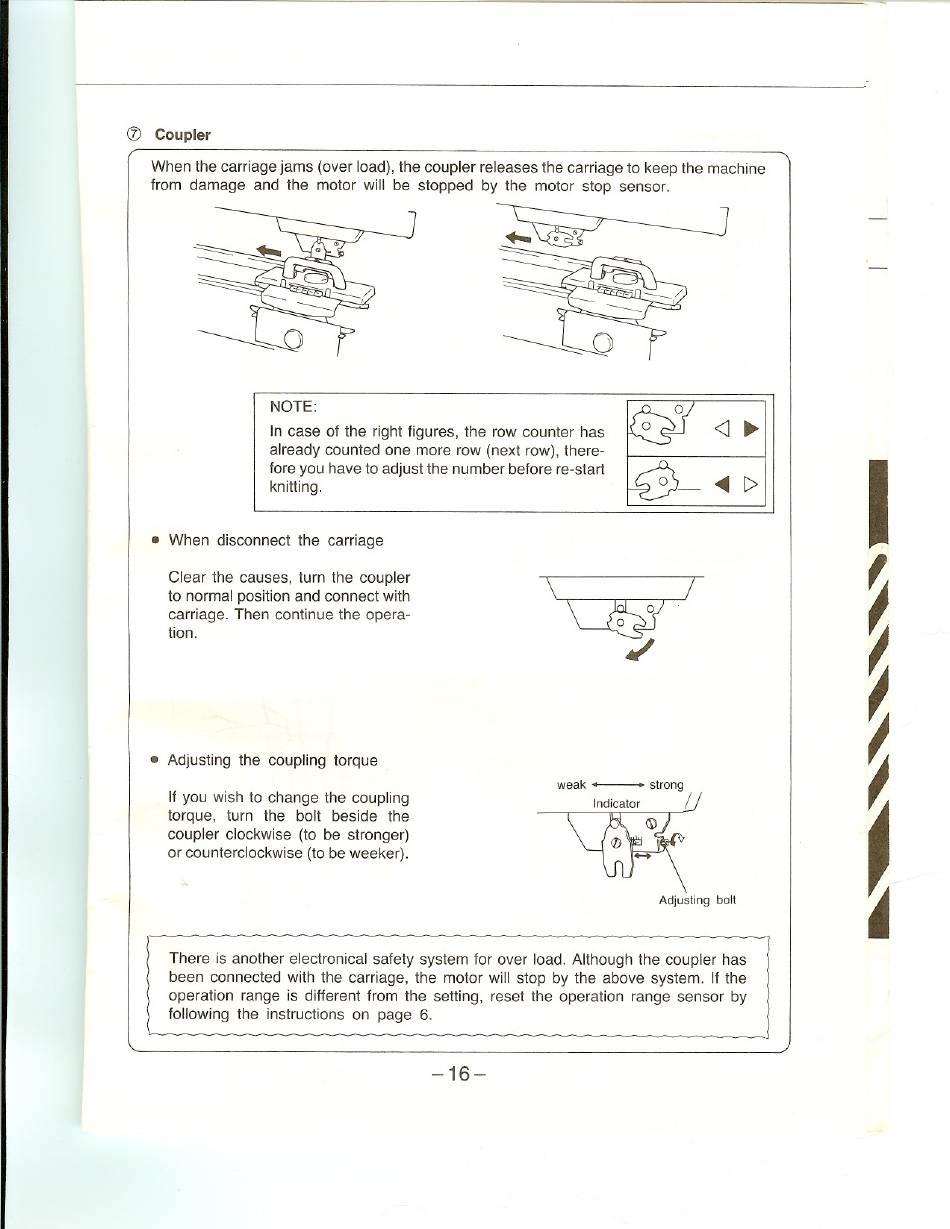

(f) Coupler
When the carriage jams (over load), the coupler releases the carriage to keep the machine
from damage and the motor will be stopped by the motor stop sensor.
NOTE:
In case of the right figures, the row counter has
already counted one more row (next row), there-
fore you have to adjust the number before re-start
knitting .
7
Adjusting bolt
Clear the causes, turn the coupler
to normal position and connect with
carriage. Then continue the opera-
tion .
If you wish to change the coupling
torque, turn the bolt beside the
coupler clockwise (to be stronger)
or counterclockwise (to be weeker).
• When disconnect the carriage
• Adjusting the coupling torque
There is another electronical safety system for over load. Although the coupler has
been connected with the carriage, the motor will stop by the above system. If the
operation range is different from the setting, reset the operation range sensor by
following the instructions on page 6.
-16-
