Unit Installation
Step
1 Remove power from the unit.
2 Remove the cover from the option slot by pulling the pins until they disengage from the chassis.
3 Slide the option module into the option slot until the module is firmly seated against the chassis.
4 Secure the pins at both edges of the module.
5 Connect the cables to the associated device(s).
6 Restore power to the unit.
CF
All unused NIM/VIM slots on the back panel of the unit must remain covered with the
supplied cover plates.
38
Instructions for Installing the NIMs and VIMs
SLOT 1 NIM/VIM
SLOT 2 NIM/VIM

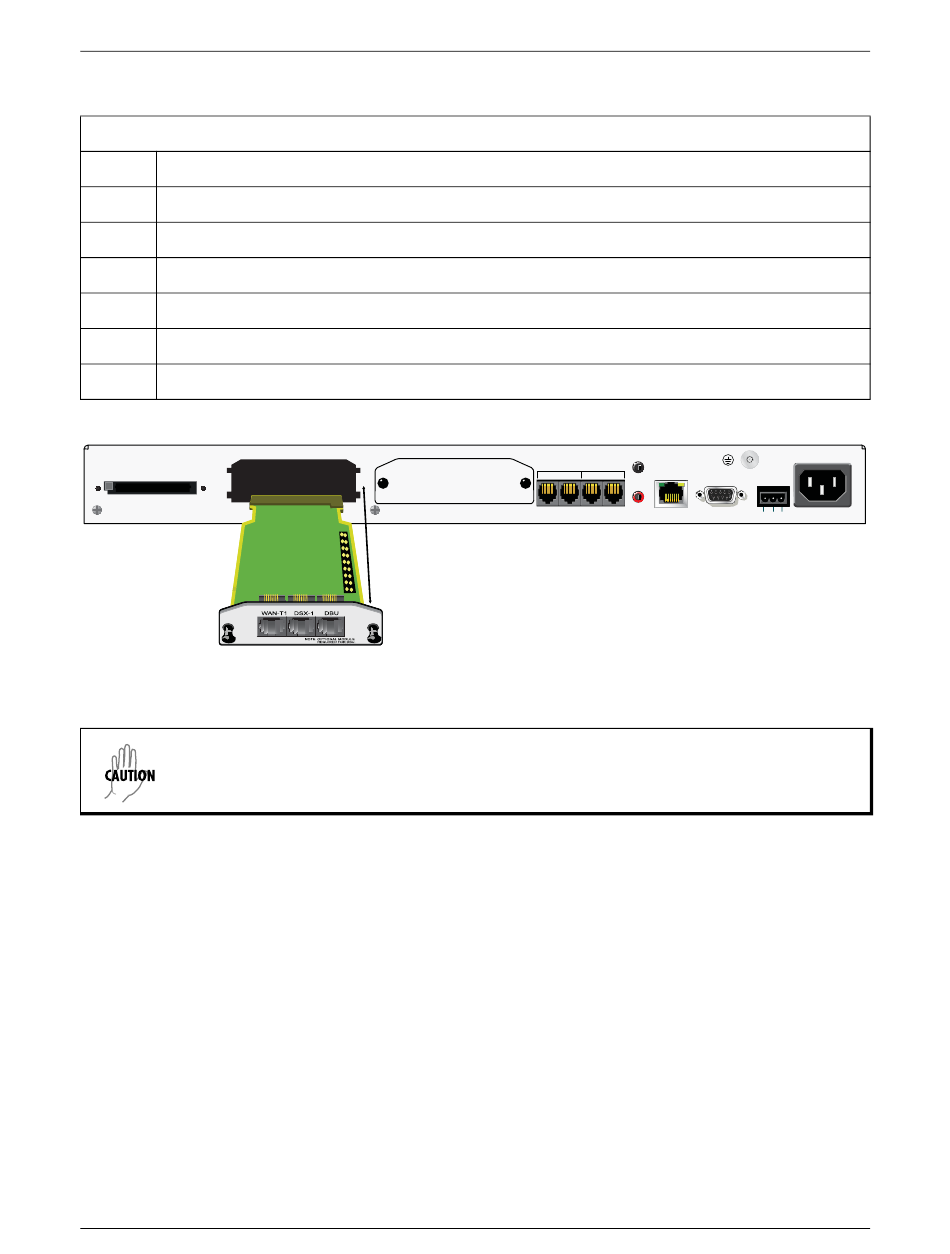

Figure 14. NIM and VIM Installation

Copyright © 2014 ADTRAN, Inc.
NetVanta 7000 Series Hardware Installation Guide
Action
MOH
ANALOG
FXS FXO
ETH 0/0
0/1 0/2 0/1 0/2
PAGE
STATIONS TRUNKS
100-250 VAC
50-60Hz
DOOR
CONSOLE
RELAY
NO NC COM
61200796L1-34L
