3. PHYSICAL DESCRIPTION

Front Panel RJ-45 Ports and LEDs

The NetVanta 7000 Series front panel is shown below.
Appendix A: Connector Pin Definitions on page 41
NetVanta 7000 Series Front Panel Features
10/100Base-T Ethernet Interfaces
The NetVanta 7000 Series front panel contains 24 10/100Base-T Ethernet interfaces (RJ-45). These
interfaces are consecutively numbered 1 through 24, from left to right, with the numbers screened
directly above each port. Status LEDs for each of these interfaces are located directly over these
numbers.
The NetVanta 7000 Series also has green and red PoE status LEDs located in the upper-left and
upper-right corners (respectively) of each Ethernet connector.
Gigabit Ethernet Interfaces/SFP Slots
The NetVanta 7000 Series front panel contains two Gigabit Ethernet interfaces that provide two fixed
RJ-45 connectors and two standard small form-factor pluggable (SFP) slots for connectivity over fiber.
(Use either the RJ-45 connectors or the SFP slots. The fiber slots have precedence.) These interfaces
are labeled and
G1 G2,
Status LEDs
The status LEDs are located to the lower left of RJ-45 port 1. The
NIM/VIM installed in NIM/VIM option
the status of a NIM/VIM installed in NIM/VIM option
LED indicates the unit's status.
20
shows the pinouts for the connectors.
and the status LEDs are located above the SFP slots.
SLOT 1

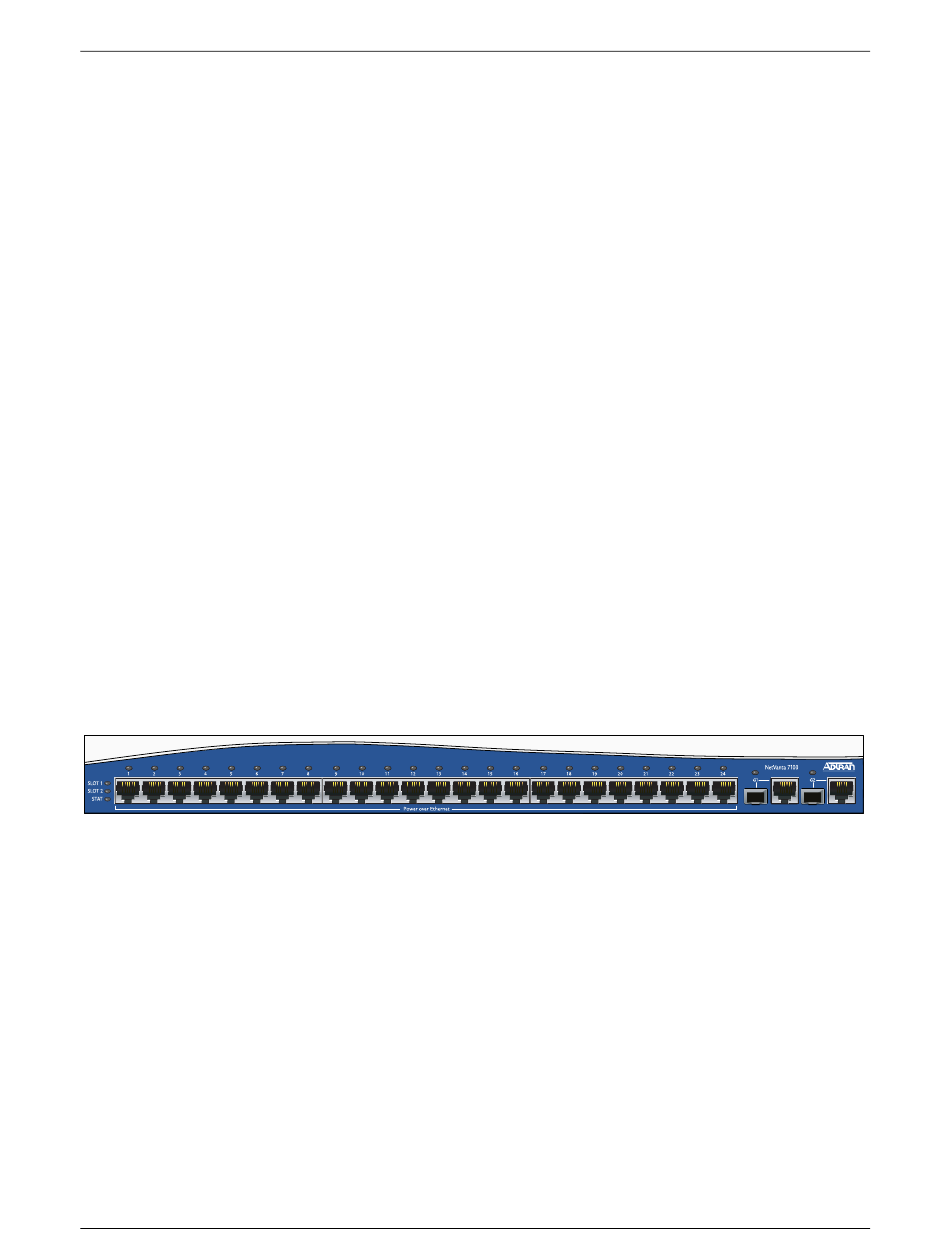

Figure 1. NetVanta 7000 Series Front Panel Layout

Copyright © 2014 ADTRAN, Inc.
NetVanta 7000 Series Hardware Installation Guide
Table 1 on page 21 describes all of the LEDs, and
SLOT 1
(located on the rear panel). The
(located on the rear panel). The
SLOT 2
LED reflects the status of a
LED reflects
SLOT 2
STAT
61200796L1-34L
