Supplying Power to the Unit

The NetVanta 7000 Series comes equipped with an auto-sensing 100 to 250 VAC, 50/60 Hz power supply for
connecting to a properly grounded power receptacle. (A detachable power cable with a grounded, three-prong
plug comes with the shipment.) To power these units, connect the power cable to an appropriate AC power
source.

Installing Network Interface and Voice Interface Modules

The NIM/VIM is installed into the rear panel option module slot. The following tables list the installation steps.
Also, see Figure 14 on page
For NetVanta modules with outside plant connections, ensure that all cables are
removed from the module before installing or removing it from the NetVanta chassis.
• Electronic modules can be damaged by static electrical discharge. Before handling
modules, put on an antistatic discharge wrist strap to prevent damage to electrical
components. Place modules in antistatic packing material when transporting or
storing. When working on modules, always place them on an approved antistatic mat
that is electrically grounded.
• Always remove power from the unit prior to removing or installing a module.
• Improper installation could result in damage to the modules.
61200796L1-34L

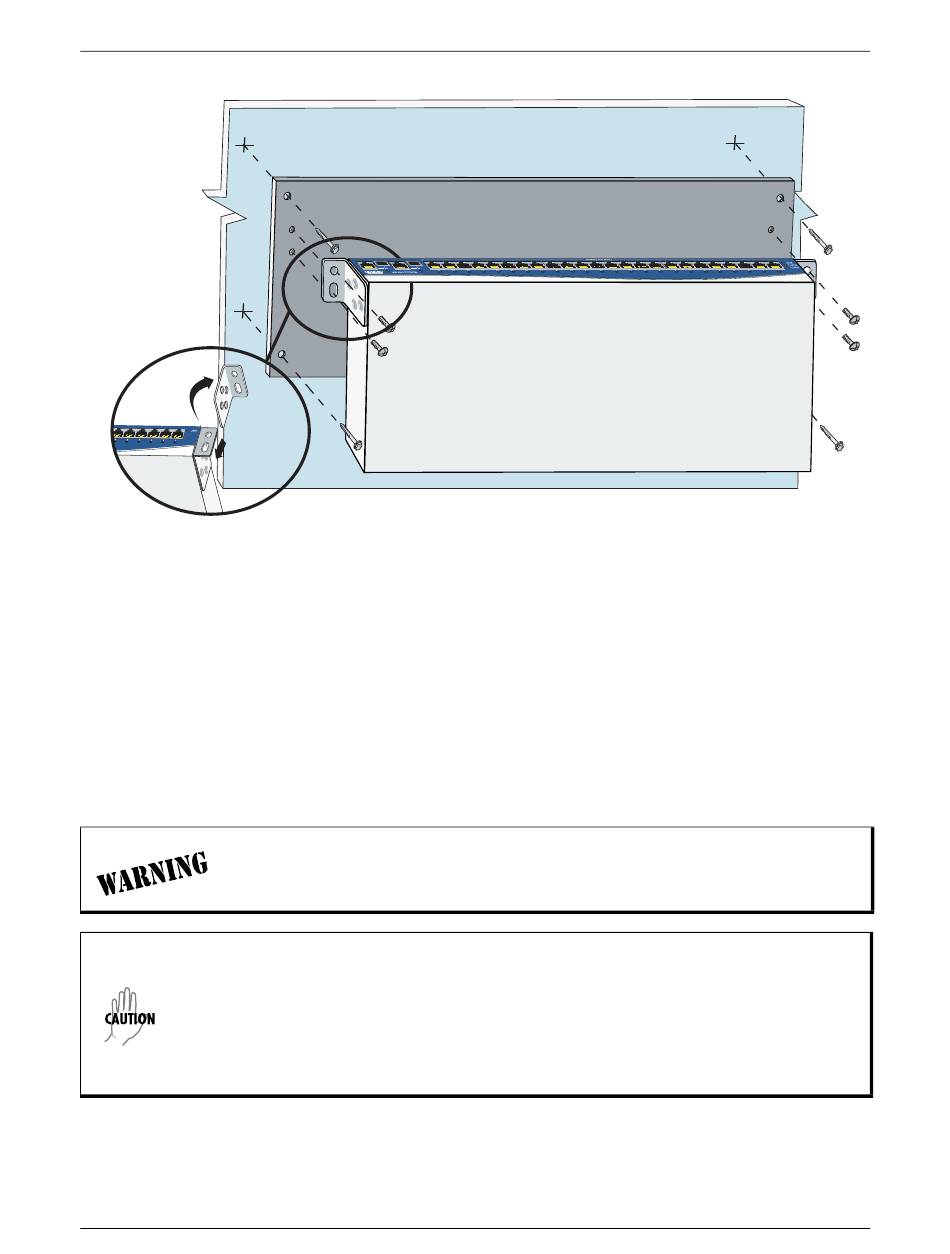

Figure 13. Wallmount Installation

38.
