NetVanta 7000 Series Hardware Installation Guide

Voice Interface Modules

NetVanta T1/PRI VIM (P/N 1200695G1)

The NetVanta T1/PRI VIM (see
Table A-6 on page 43 for the T1 connector pinouts. Dial backup (DBU) is not supported.
Operating Modes
• Primary Rate ISDN (PRI), CAS
T1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR54016, Bellcore TR 194,
ANSI T1.403
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized
(multiples of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Line
• Internal
• System
61200796L1-34L
Figure 8) adds T1 voice capability to the NetVanta 7000 Series. See

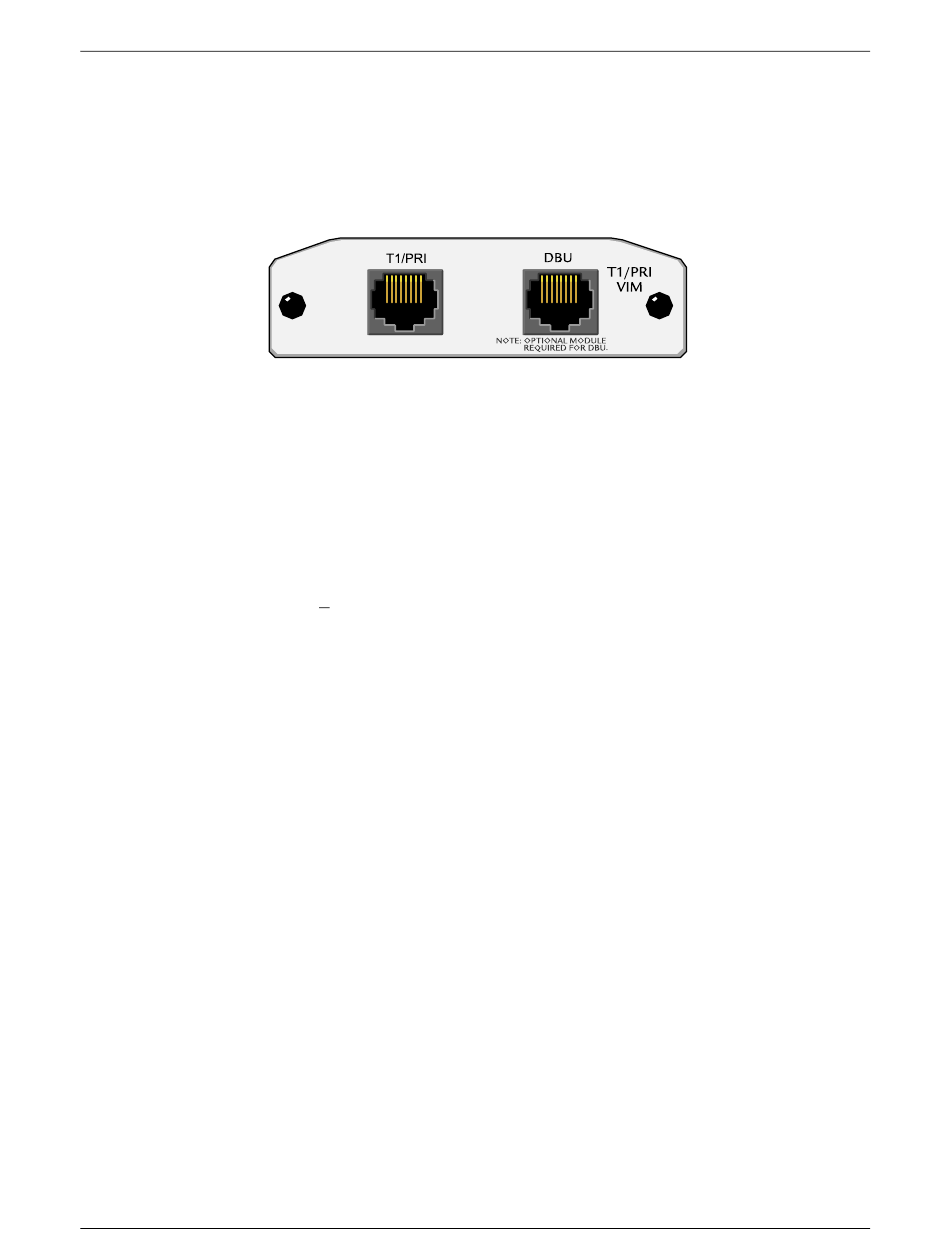

Figure 8. NetVanta T1/PRI VIM

Features and Specifications
Copyright © 2014 ADTRAN, Inc.
Diagnostics
• Test Pattern Generation and Detection:
15
QRSS, 2 - 1, all ones, all zeros
• Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
• Alarm generation detection
• Network performance data (15 minutes
and 24 hours)
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
6.
29
