Steering
Pressure Line

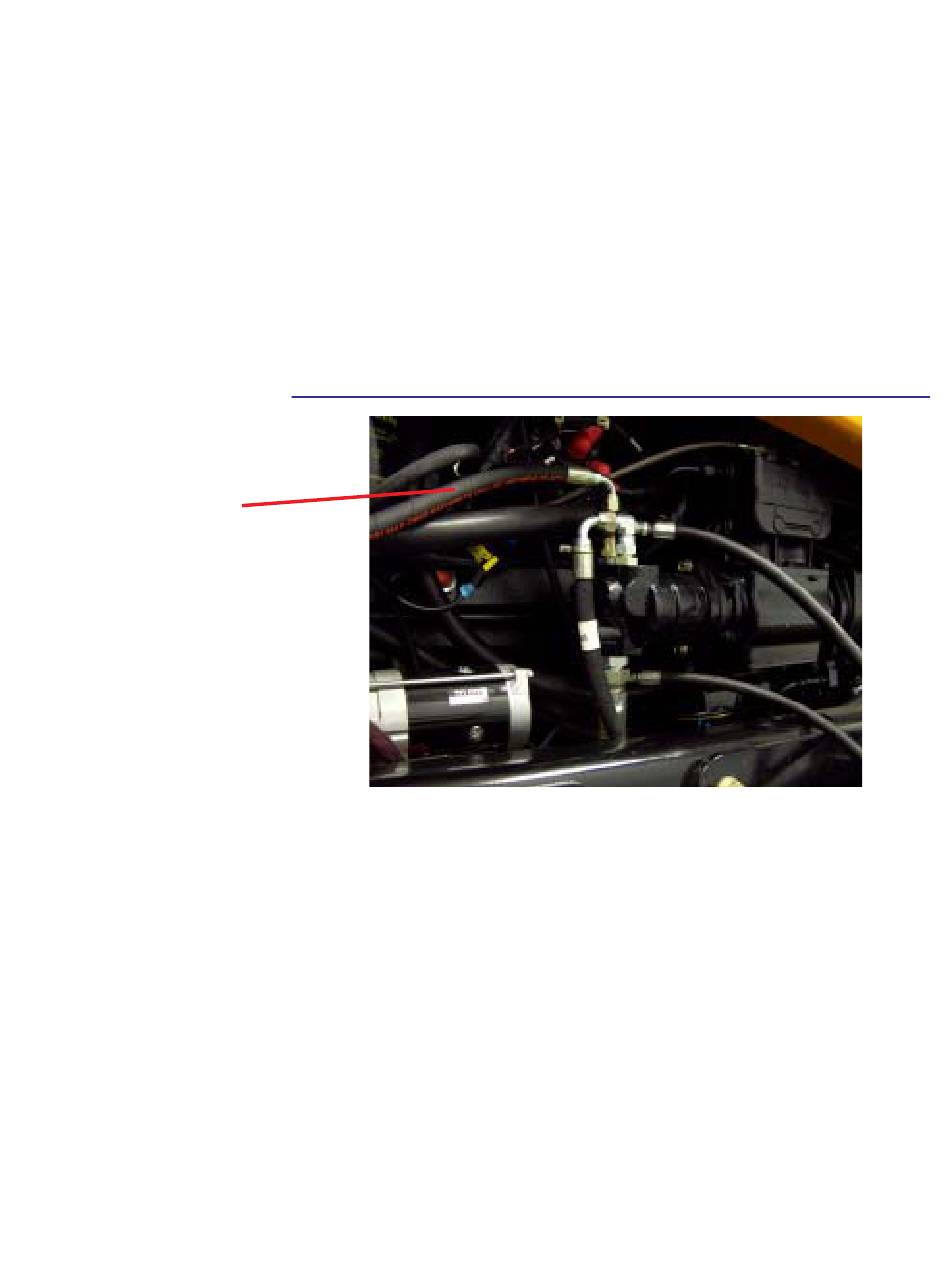

Disconnect the original pressure hose that runs from the pump located on the
right side of the engine on the back of the air complressor. Install a supplied
tee fitting and reconnect the original pressure hose.
Attach new hose (214-1000-523) to the tee fitting and to the "P" port on the
Smartrax valve.
