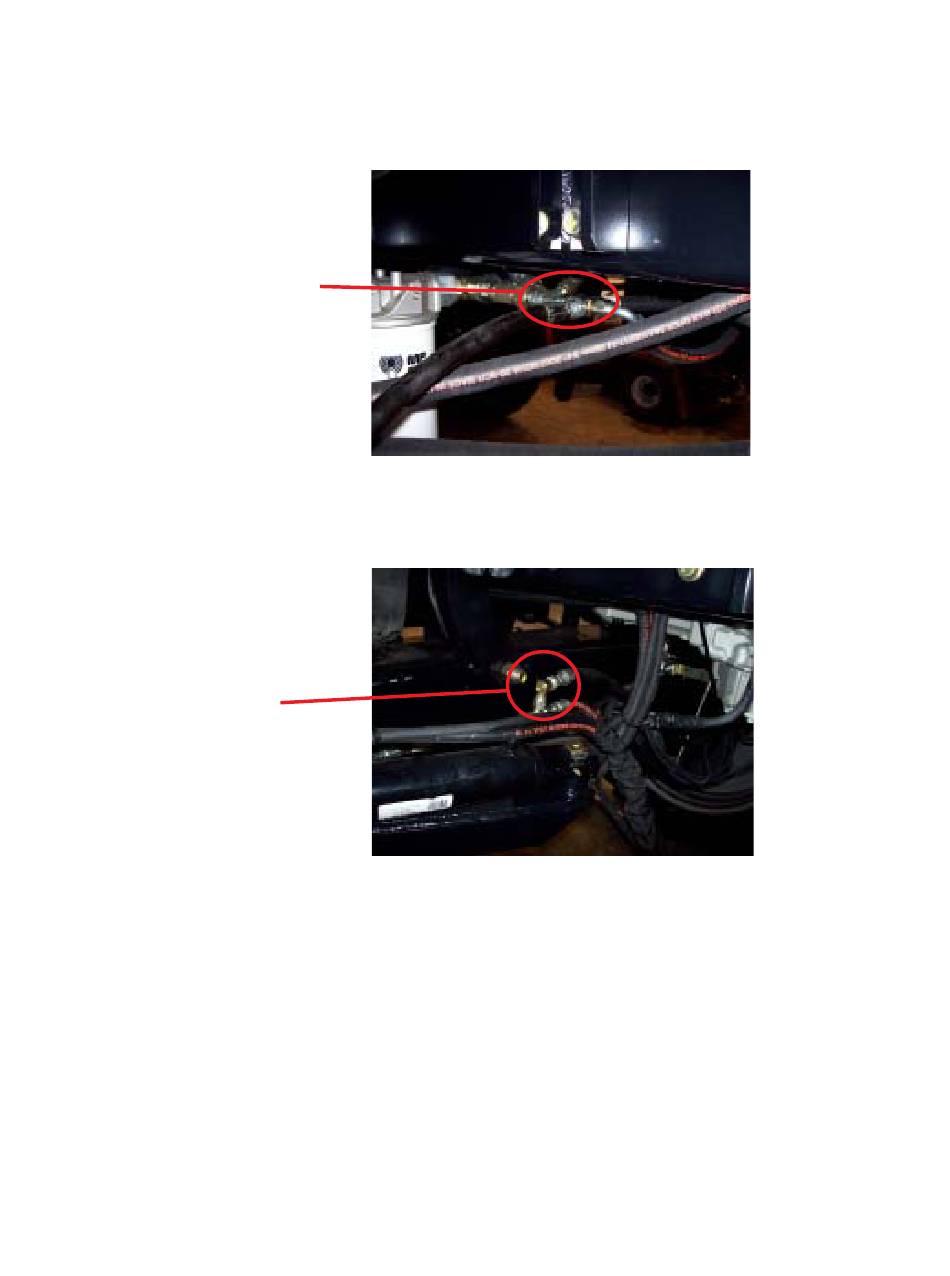

Tank Connection

Right Steer

Connection

Disconnect tank hose from the filter assembly attached to the hydraulic tank.

Install the supplied -8 JIC tee fitting and reinstall original hose.

Attach hose (P/N 214-1000-521) to the "T" port on the Smartrax valve using

a 90° fitting and 90° hose end. Then attach to the tee in the tank line.

Tee Right hose (P/N 214-1000-520) and Left hose (P/N 214-1000-520) into

the base end of the steering cylinders. Attach right steer hose to "B" port on

the Smartrax valve and the left steer hose to the "A" port.
