Raven SmarTrax system Supplement Installation Manual page 7

Manual # 016-0190-088
C
H A P T E R
3
M U B V
OUNTING THE NIVERSAL RACKET AND ALVE

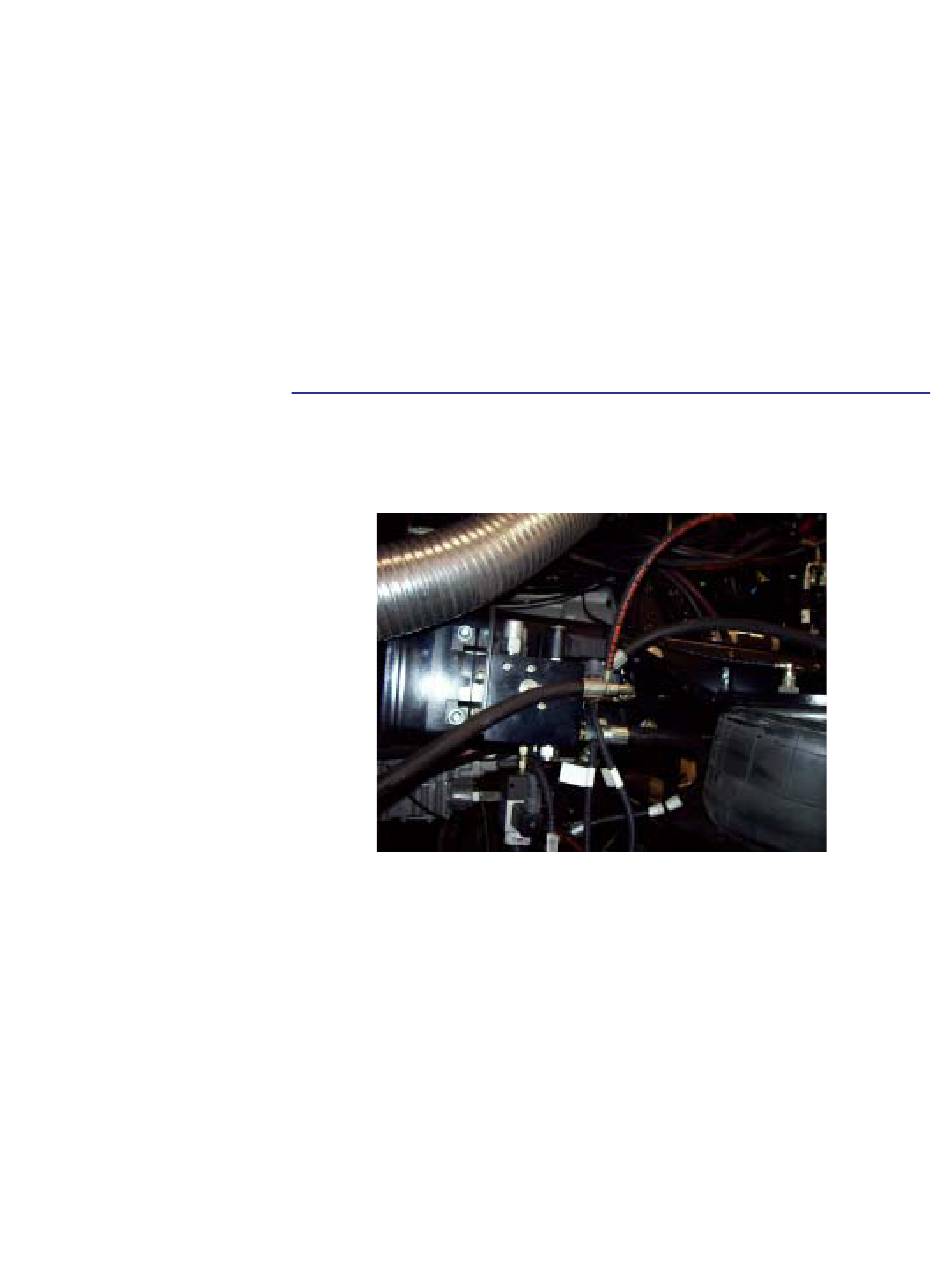

1. Mount the valve to the frame on the right side of the machine in front
of the hydraulic tank and cab support using the supplied bolts and
bracket.
5
