REPAIR (CONTINUED)

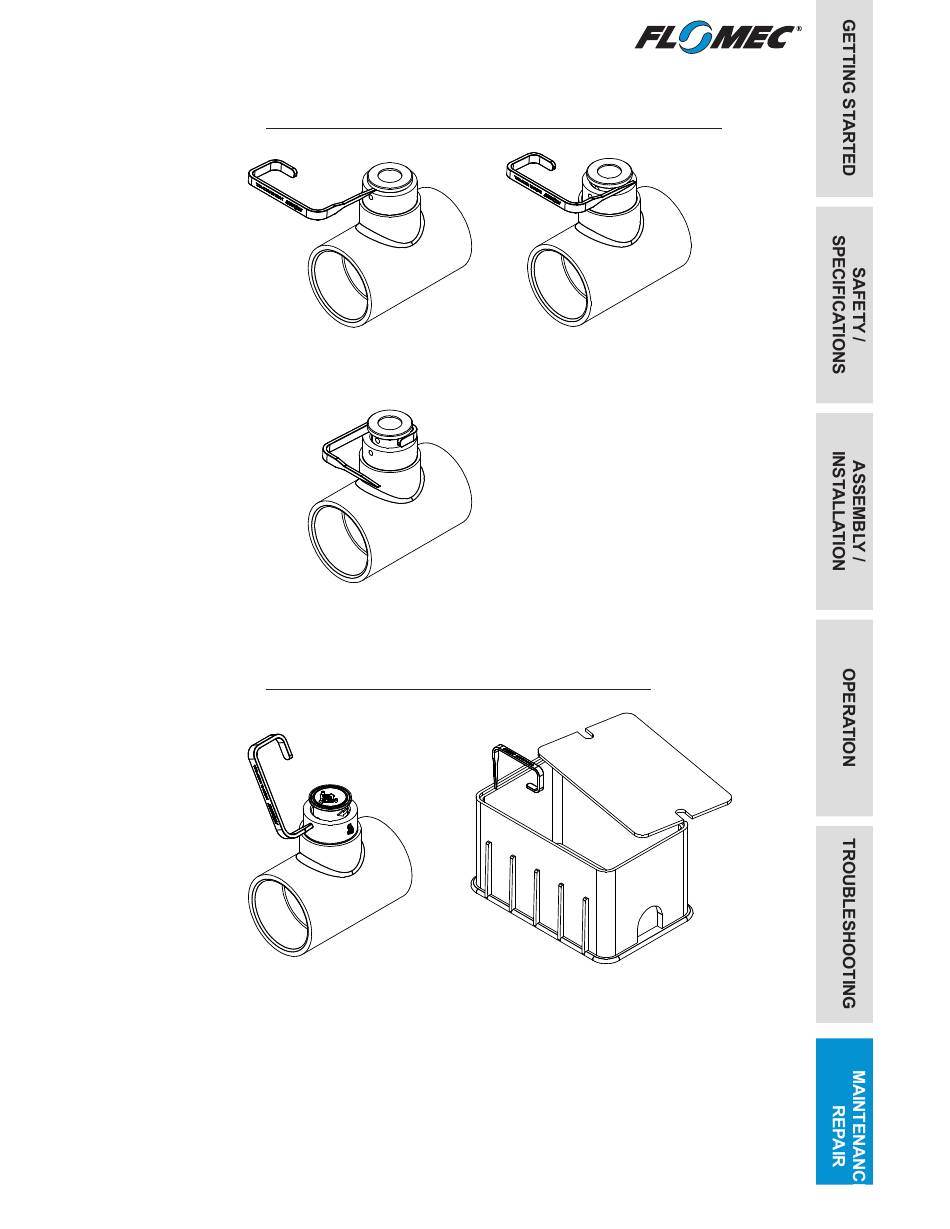

PRY UP - To break a stuck insert loose

LEVERAGE - To Lift insert up and out

Figure 17

PIN HOLE ALIGNMENT -

For easy pin install

Figure 18

Find Quality Products Online at:

Remove Old Insert From Tee with FLOMEC Multi-Tool

Install New QS200 Insert FLOMEC Multi-Tool

GlobalTestSupply

www.

DRIVING WEDGE - To lift insert more

CLEAN LID GROOVE -

Remove dirt, roots, debris
