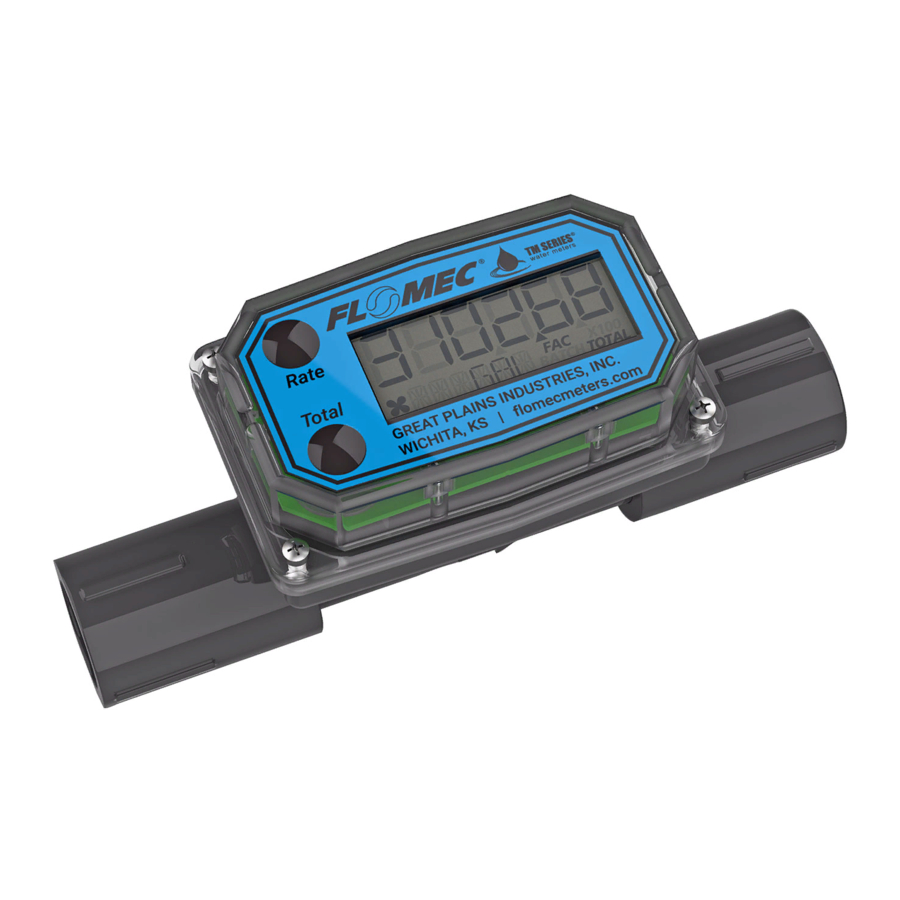

Industrial Grade Electronic Digital Meters
Q9 Computer Retrofit Kit for G2 Meters
Kit includes:
(1) Replacement Computer Assembly
with (2) (AAA) Alkaline Batteries
(4) Screws (4-40 X 3/8" Machine
Screws) For Metal Body Turbines
(4) Screws (4-20 X 3/8" Plastite
Screws) For Plastic Body Turbines
Installation Instructions:
1. Your meter must be installed with the arrow pointed in the direction of flow.
NOTE: You can rotate the computer display 180 degrees before it is installed.
2. Check that the batteries are secure in the back of the computer.
3. Clean the bottom surface of the coil counter bore of your meter housing. This
surface will be used to secure the coil assembly with permanent adhesive.
Then, remove and discard the peel off liner from the bottom of the coil to
expose the glue dot permanent adhesive. (See Figure 1)
4. Adhere the coil / glue dot combo to the coil counter bore surface previously
cleaned, visually centered (see Figure 2).
permanent adhesive and the coil cannot be maneuvered once contact
is made with the counter bore surface. Press firmly on the top of the coil
with finger or other object to ensure it is fully adhered to the surface.
5. Place the battery pad into the computer mount cavity, connect the coil wire
to the computer (see Figure 3), and mount the computer. Fasten the
computer to the turbine through the four corner holes in the faceplate using
the screws provided (4-40 x 3/8" for metal body turbines or 4-20 x 3/8" for
plastic body turbines). Make sure the seal is fully seated in the computer
housing groove before tightening the screws.
6. Check meter accuracy before using. Make sure there is no air in the system
by starting the flow until it runs steadily. Then stop the flow using a valve or
nozzle.
07/20/2020
Installation Instructions
CONTINUED ON BACK
• (1) Seal
• (1) Battery Pad
• (1) Coil Assembly w/Glue Dot
NOTE: The glue dot is
920896-10 Rev-

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Flomec Q9

  • Page 1 Industrial Grade Electronic Digital Meters Q9 Computer Retrofit Kit for G2 Meters Installation Instructions Kit includes: (1) Replacement Computer Assembly • (1) Seal with (2) (AAA) Alkaline Batteries • (1) Battery Pad (4) Screws (4-40 X 3/8" Machine • (1) Coil Assembly w/Glue Dot Screws) For Metal Body Turbines (4) Screws (4-20 X 3/8"...
  • Page 2 7. Hold down TOTAL button for three seconds to reset the meter's Batch Total to zero. When zeroes appear, release the button. Please refer to Q9 Owner’s Manual “Normal Operations Mode” for specific details on this step. 8. Meter an exact known volume into an accurate container. For best results, meter with one continuous full stream.
