REPAIR (CONTINUED)
18
Find Quality Products Online at:
Remove Old Insert From Tee
1. Clean all dirt and debris away from the immediate area of the old insert
and the top of the meter, then pull out the quick release pin from the
meter (see Figure 13).
2. Remove the old insert. Grasp the insert flange with your hand and pull
straight up and out of the Tee, making sure no dirt or other particles fall
into the insert bore of the meter (see Figure 14).
NOTE: The FLOMEC Multi-Tool (p/n 146055-501) can be used to make
removal of old insert easier (see Figure 17).
NOTE: When replacing another manufacturer's insert with the QS200
Retrofit Insert, the old insert could have a sediment or mineral buildup and
need to be leveraged out of the tee.

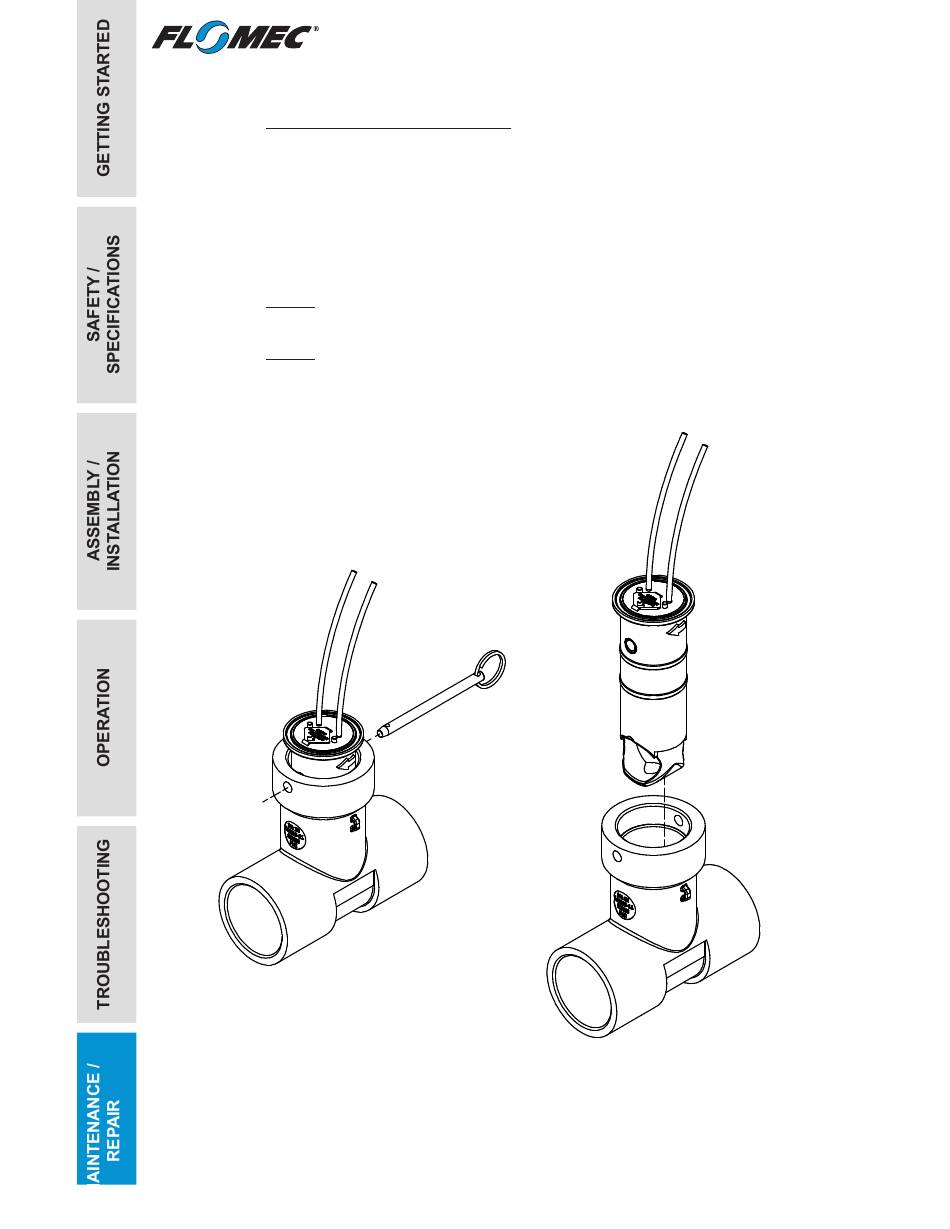

Figure 13
