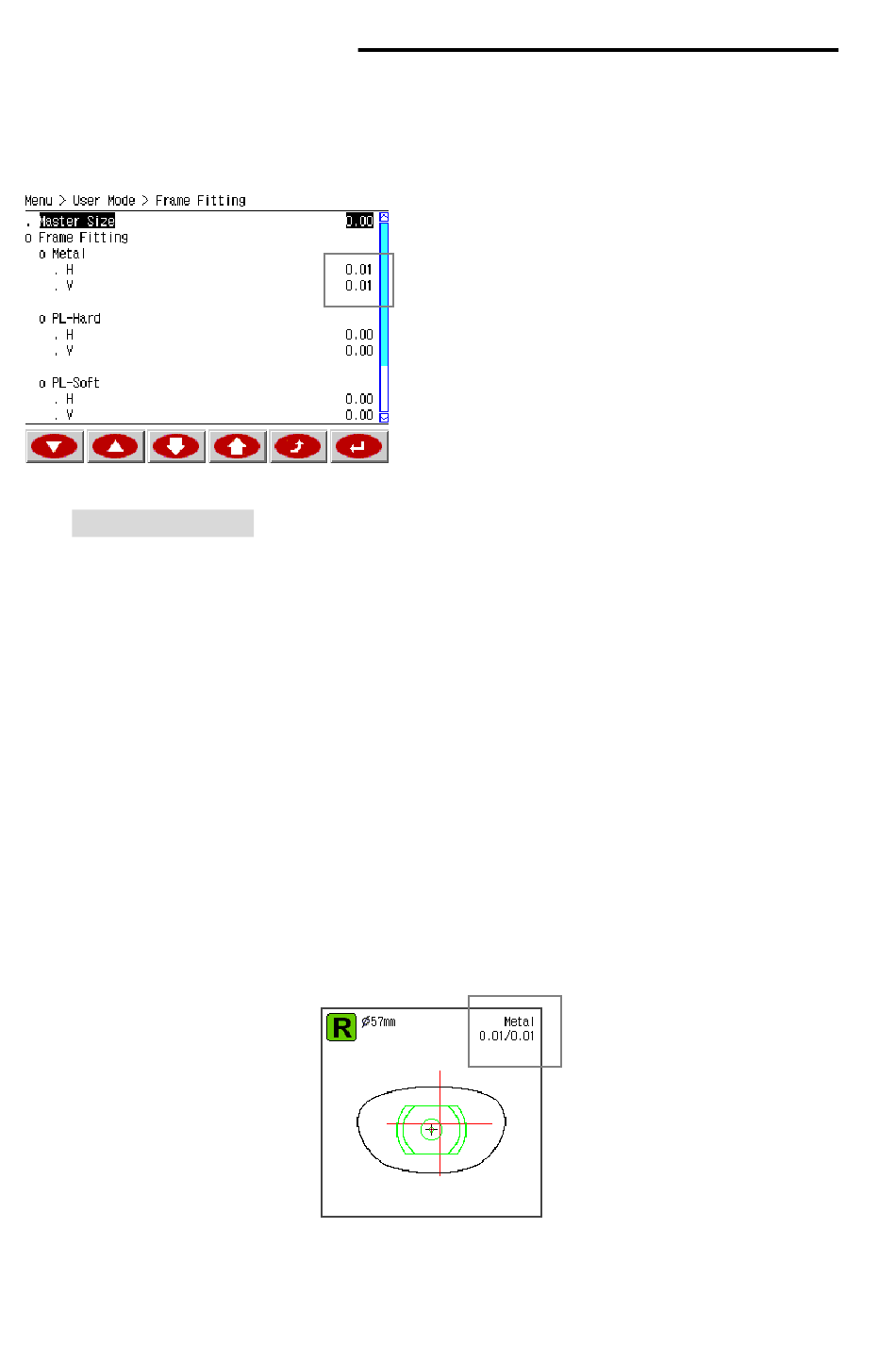

6.2.2 Frame Fitting

You can adjust fitting size by frame type.
Setup procedure
① Trace the frame data with Frame Reader.
② Execute the Edging Process with Mid-Index Lens (low diopter lens preferred) and
carry out the Fitting with the edged lens.
③ In case the edged lens is bigger than the frame, adjust the value to '-' (minus).
In case the edged lens is smaller than the frame, adjust the value to '+' (plus).
(Based on the Lens Diameter)
☞ Using the Master Size Adjustment, the operator can set up the adjustment
value for all frame materials simultaneously.
☞ In case the frame tracing is executed after selecting the frame material in
the Menu of Frame Reader, the recommended value of fitting adjustment
will be displayed on the screen(top right).
☞ Remember that these adjusted values are applied in diameter.
Master Size is applied to a final output
-
regardless of lens material.
- Frame fitting is applied to each of lens
material.
