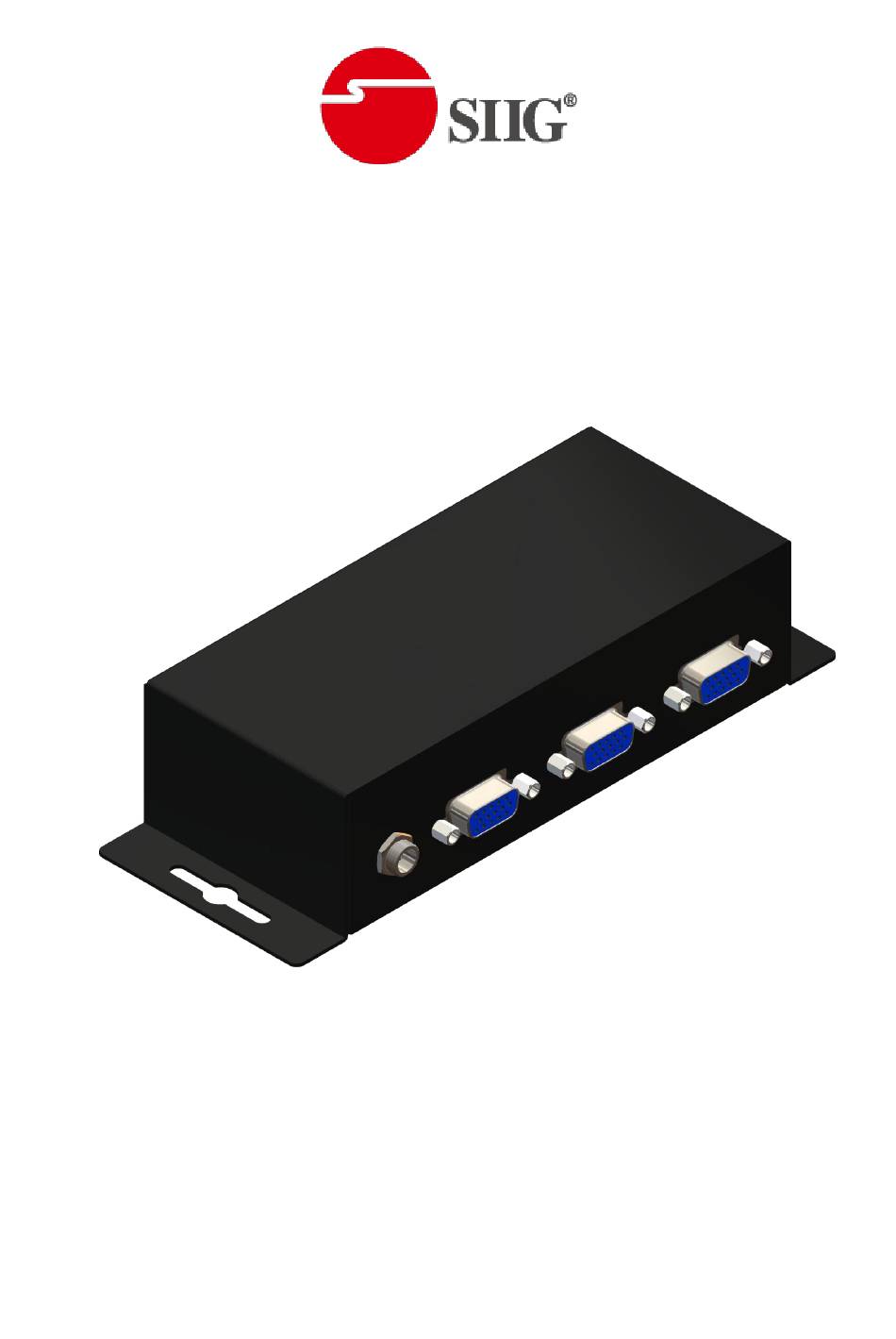

- Page 1 1x2 VGA Splitter P/N: AV-GM06N3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM06N3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
VGA, component, or composite video applications. The AV-GM06N3-S1 not only takes one video input from a VGA source and immediately directs it to two VGA monitors or projectors, but also boosts and extends the signal up to 65m (210ft) without noticeable signal loss or picture degradation. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM06N3-S1 Technical Output Ports Supported input/output Video bandwidth 400MHz Video support WUXGA [1920x1200@60] & UXGA [1600x1200@60] or even higher Transmission UXGA – 65m [210ft] Audio support VGA connector HD-15 [15-pin D-sub female] Mechanical Housing Metal case Model 205 x 40 x 60mm [8.07"... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Rear Panel +5V DC: Connect to 5V 4A DC interlocking power adapter VGA OUT: VGA output to a remote video display VGA IN: VGA input from a video source... -
Page 6: Hardware Installation
HARDWARE INSTALLATION 1. Connect a PC source (or a component/composite source with a YPbPr-to-VGA adapter) to the VGA/YPbPr/CVBS input of the AV-GM06N3-S1. 2. Connect two VGA monitors or projectors to the VGA outputs (or two component/composite displays with two YPbPr-to-VGA adapters to the VGA outputs). -
Page 7: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06N3-S1 features and specifications is subject to change without further notice.
