Summary of Contents for SIIG AV-GM06E3-S1E

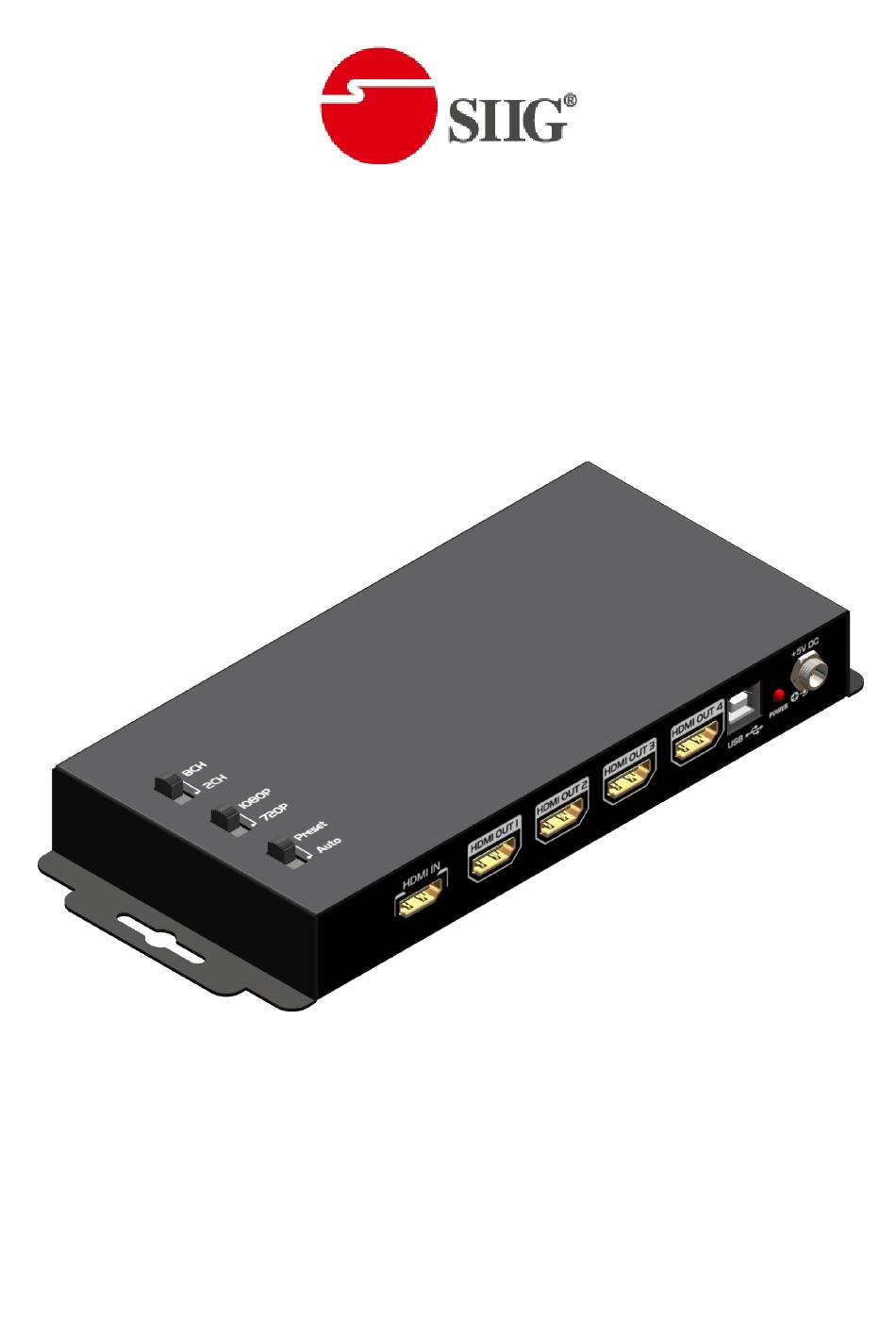

  • Page 1 1x4 HDMI Splitter with EDID Manager...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM06E3-S1E should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    HDMI splitter solution in the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. With both automatic EDID learning and user define EDID features, AV-GM06E3-S1E will effectively avoid HDMI compatibility issues and offer the best HDMI support for HDMI splitters! With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM06E3-S1E Technical Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz] DTS-HD Master Audio, Dolby TrueHD...
  • Page 5: Panel Descriptions

    temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Rear Panel HDMI IN: HDMI input source HDMI OUT 1-4: distributed HDMI outputs USB: for firmware update use only POWER: Red light means power is on +5V DC: connect to 5V 2A interlocking power supply unit Top Panel SW1: 8CH / 2CH SW2: 1080P / 720P...
  • Page 6: Hdmi Pin Definition

    HDMI PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 14 Reserved (N.C. on device) Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 15 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 16 Pin 4 TMDS Data1+...
  • Page 7: Connection Diagram

    CONNECTION DIAGRAM...
  • Page 8: Notice

    4. For firmware update through USB and since there are 2 independent microcontrollers in AV-GM06E3-S1E, users MUST follow different steps to complete the firmware update! For some cases, users may need to update both controllers, but in most of the cases, only one of them may need to be upgraded.
  • Page 9 mode 5. For updating the first microcontroller, please set the pin 1 & 2 of the bottom DIP as the positions shown in the above table. Then, turn off the power, plug USB cable connected to your PC, and then power up the module! In this setup, the power LED indicator will NOT blink, and this is normal! Execute the attached or download EPFlash.exe, and the following window will pop up.
  • Page 10: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06E3-S1E features and specifications is subject to change without further notice.
